Tin Roof - Starlink Mount Roof Kit for Gen 3 (V4) - Lite Duty

Description

Starlink Gen 3 (V4) Tin Roof Mount Kit – Lite Duty Pole Adapter Included

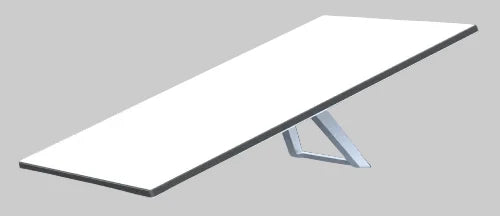

These are to suit the V4 Rectangle Gen 3 Dish - Australian Made.

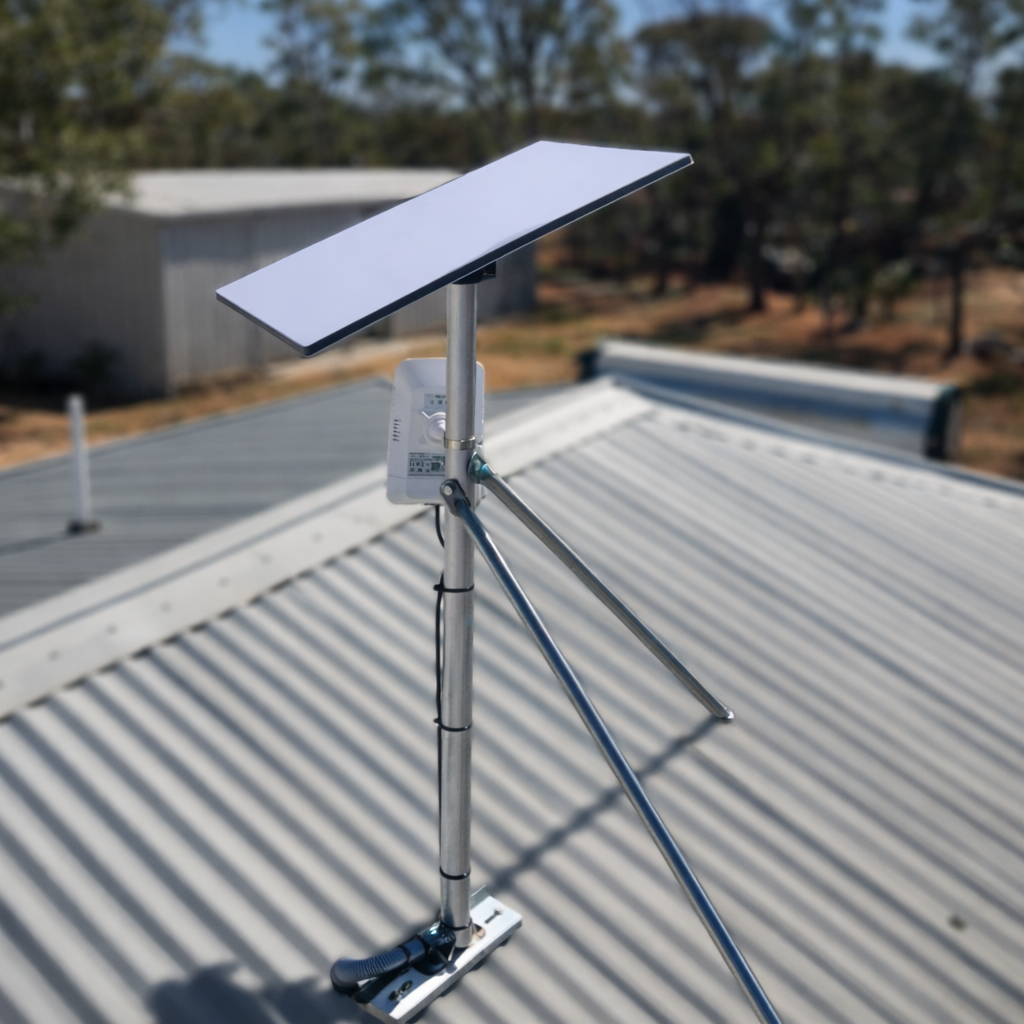

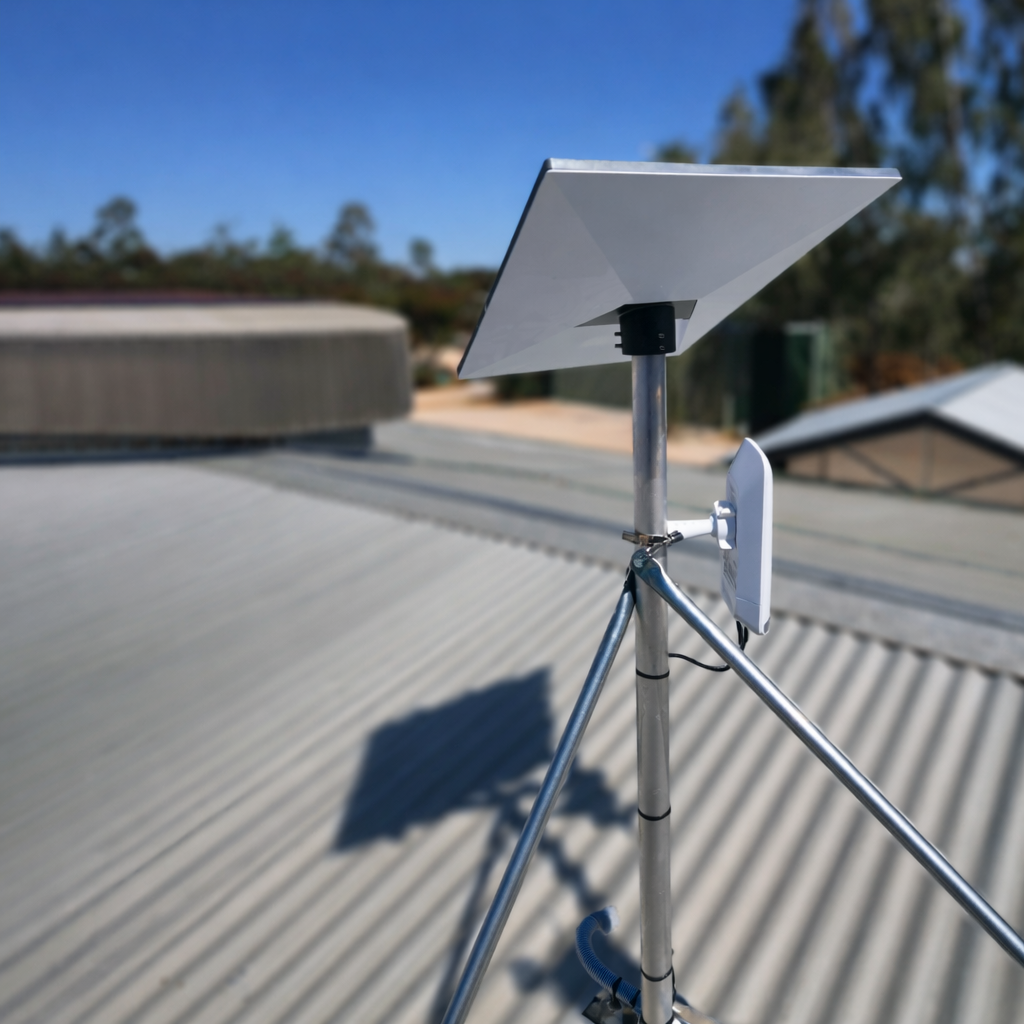

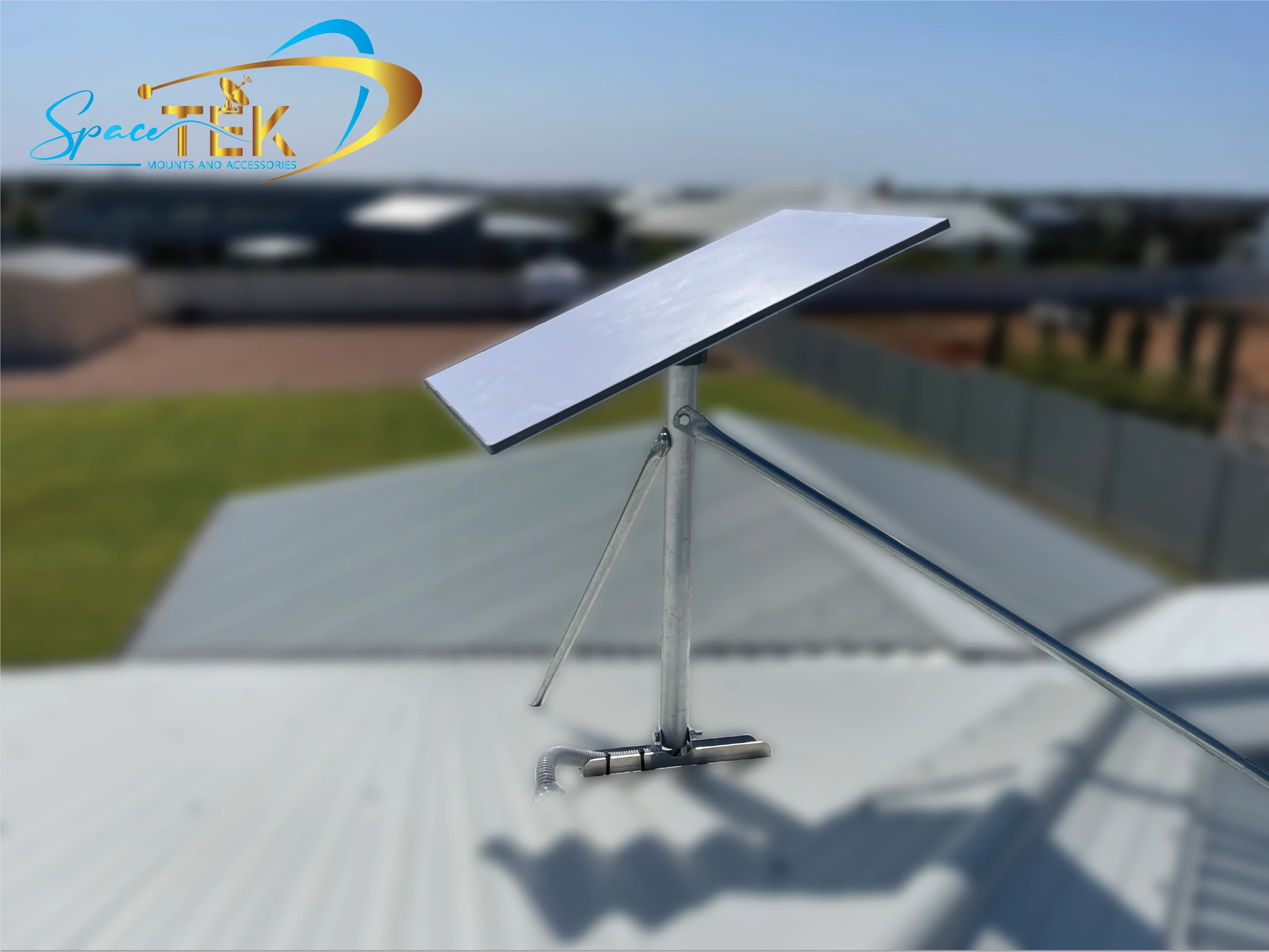

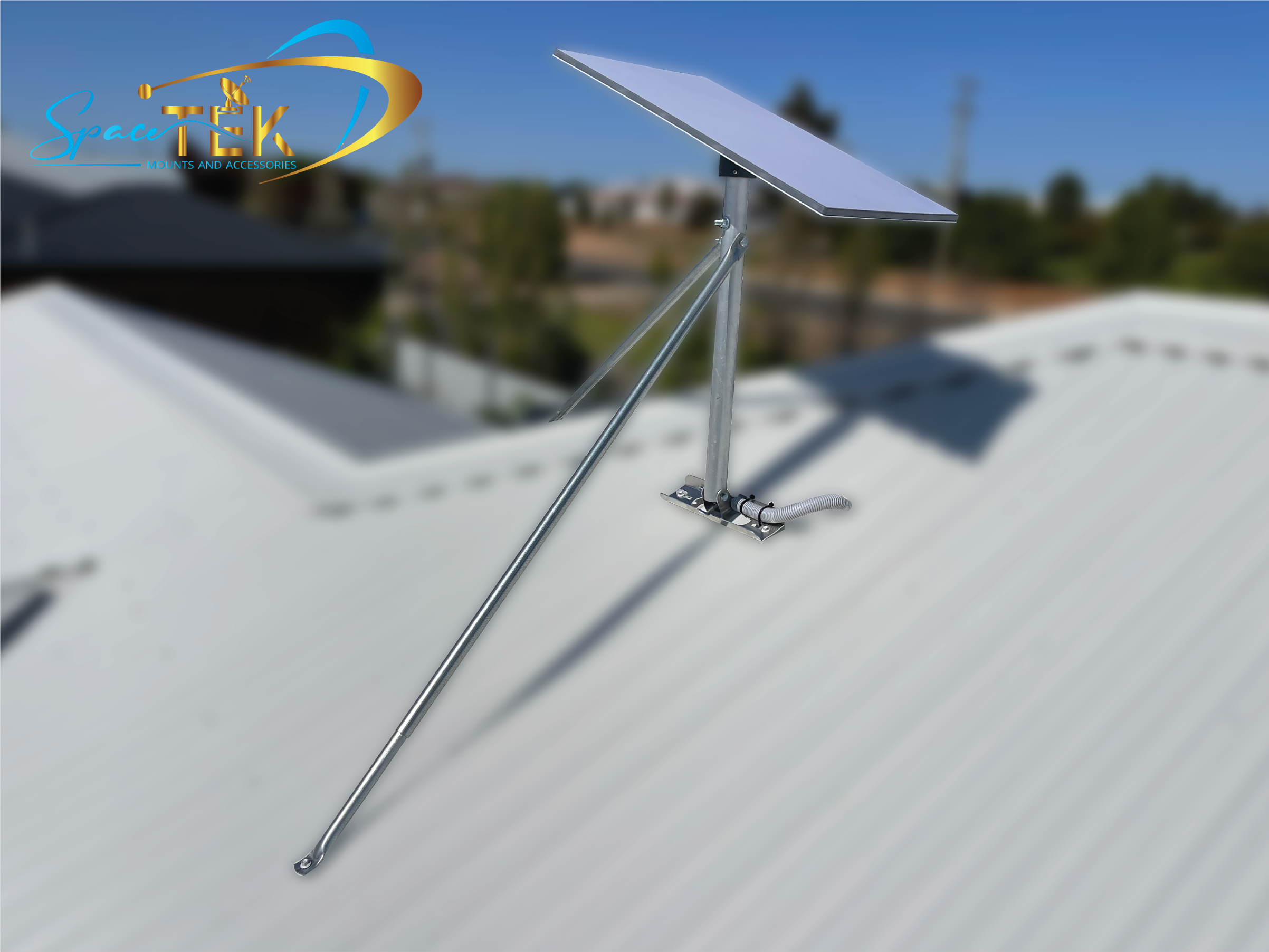

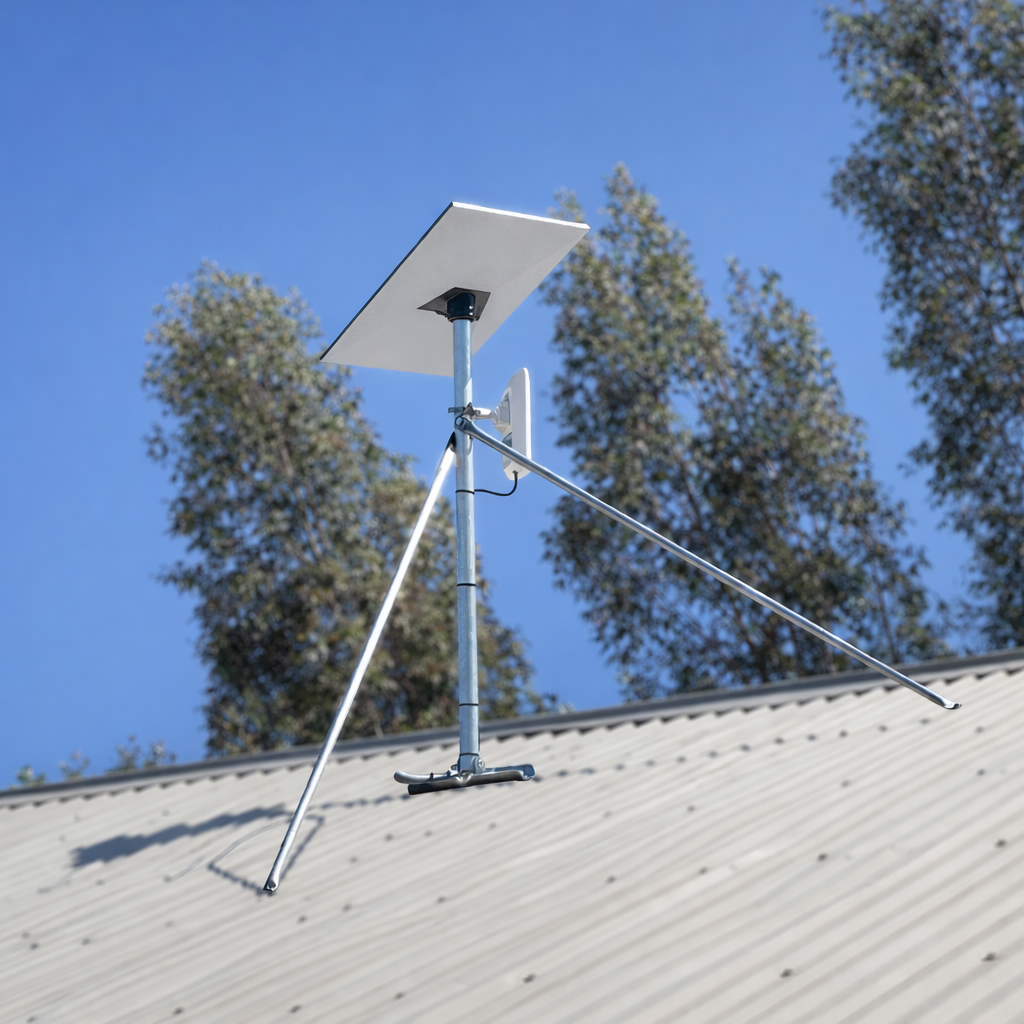

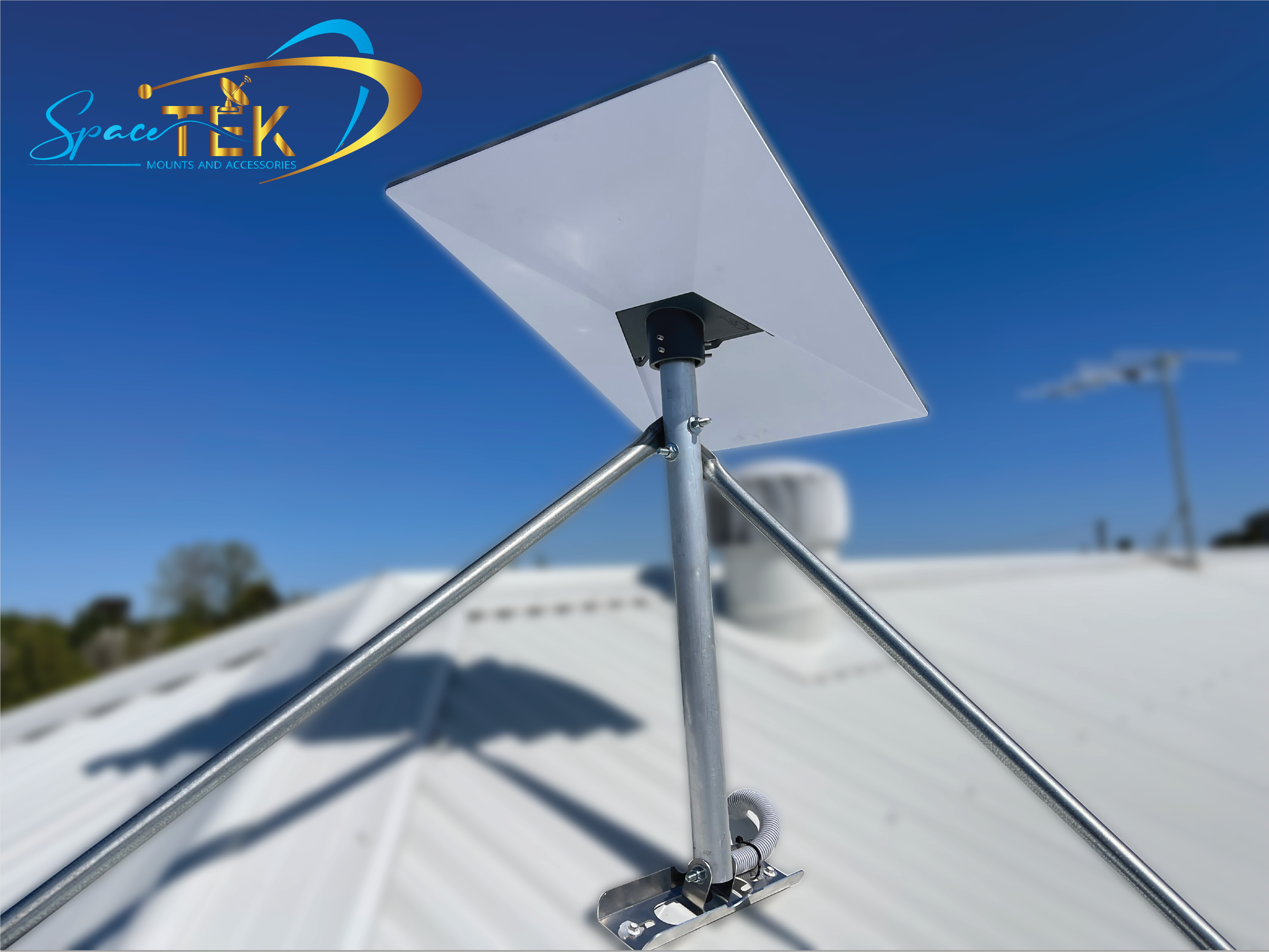

The Spacetek Tin Roof Mount Kit is engineered for fixed installation of the Starlink Gen 3 (V4) rectangular terminal on corrugated roofing. The system provides a rigid, elevated mounting point while maintaining separation from the roof surface to reduce radiant heat exposure and improve airflow around the terminal.

Starlink Gen 3 terminals incorporate a thermal protection shut-off at approximately 50°C. The elevated pole design intentionally spaces the dish away from heat radiating from metal roofing during Australian summer conditions, reducing thermal load and helping maintain uninterrupted operation.

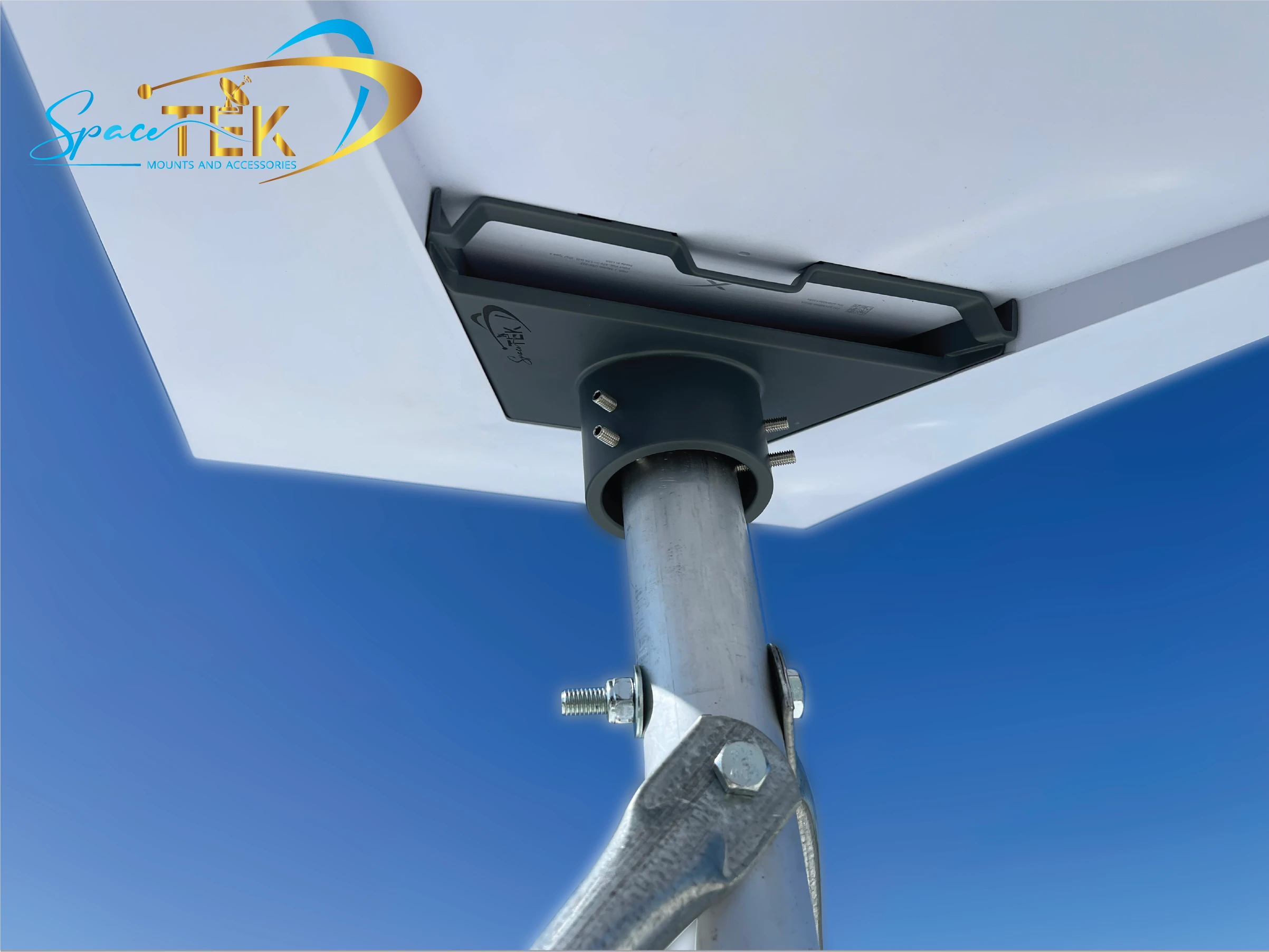

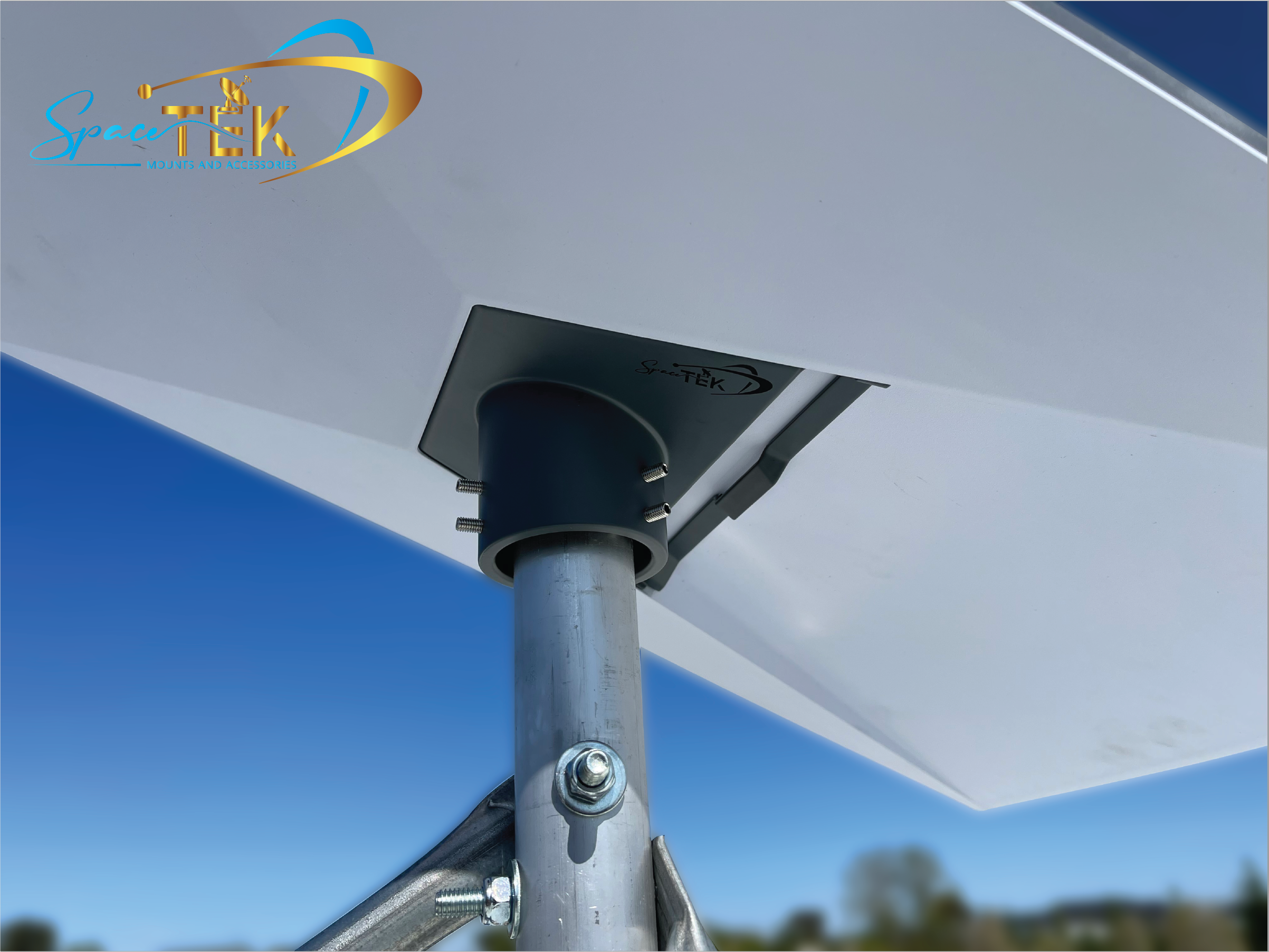

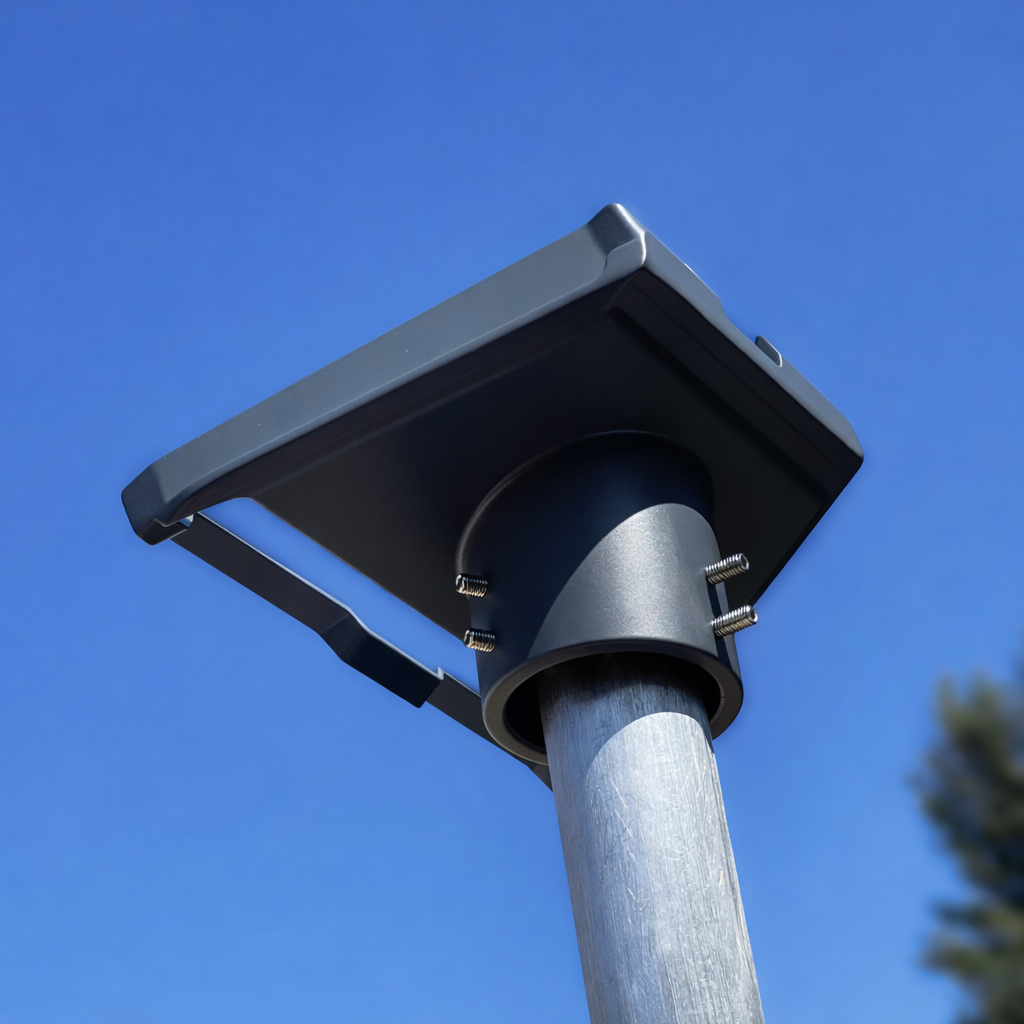

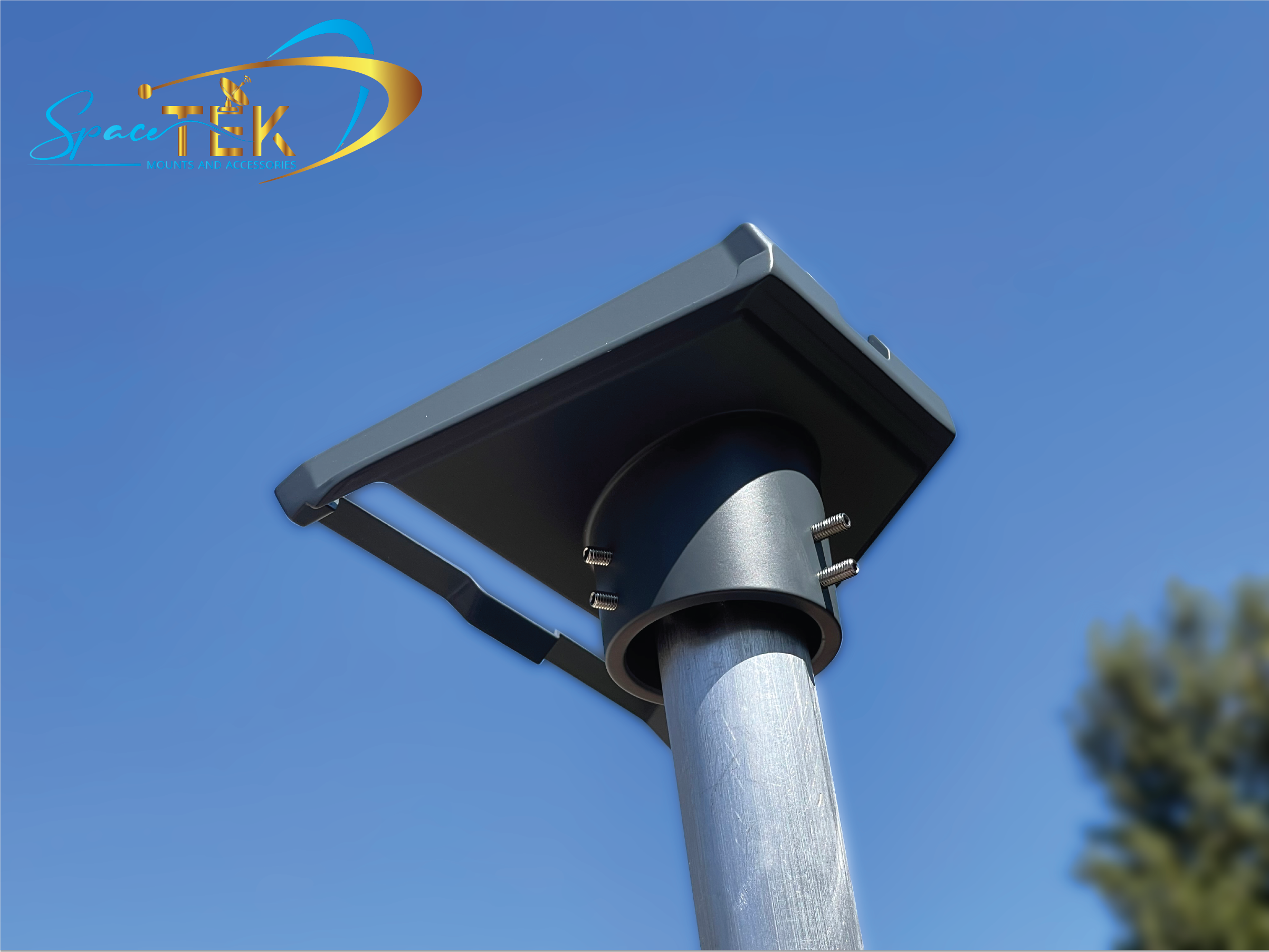

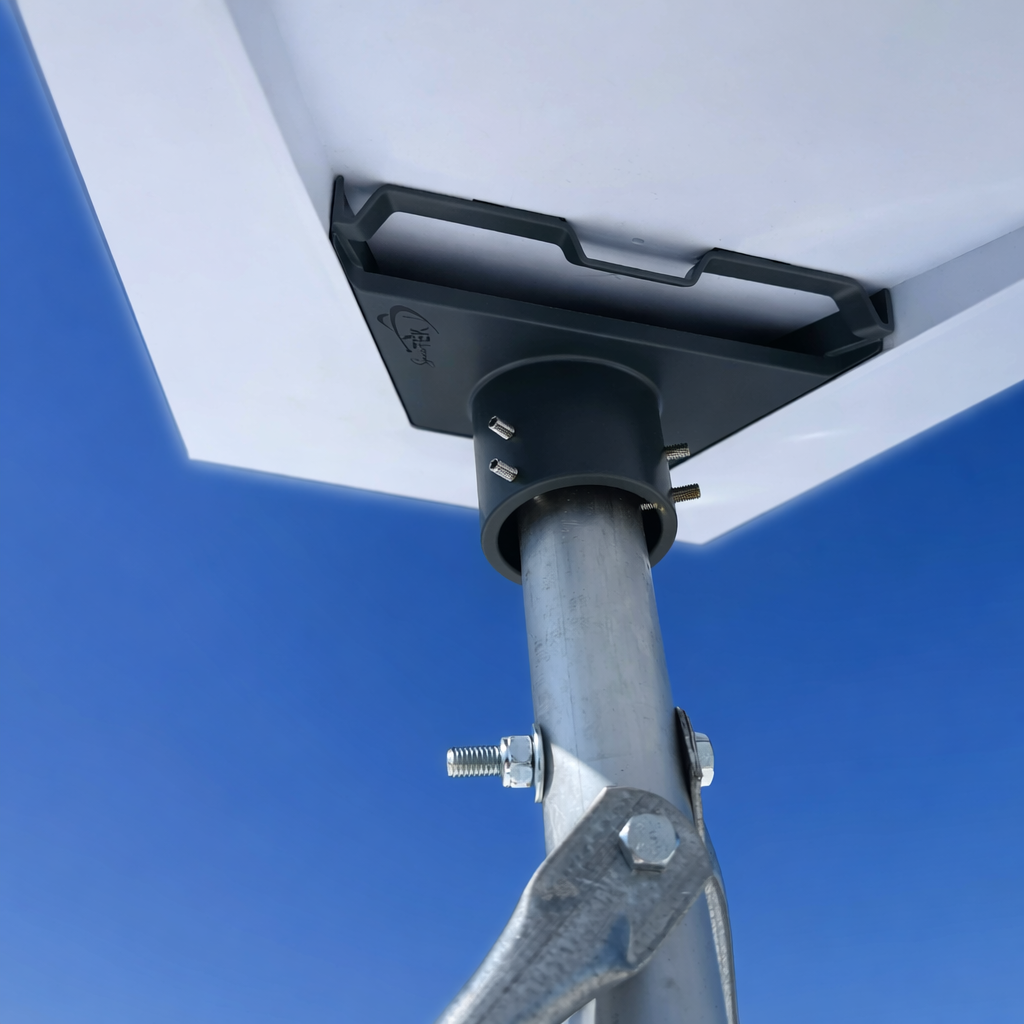

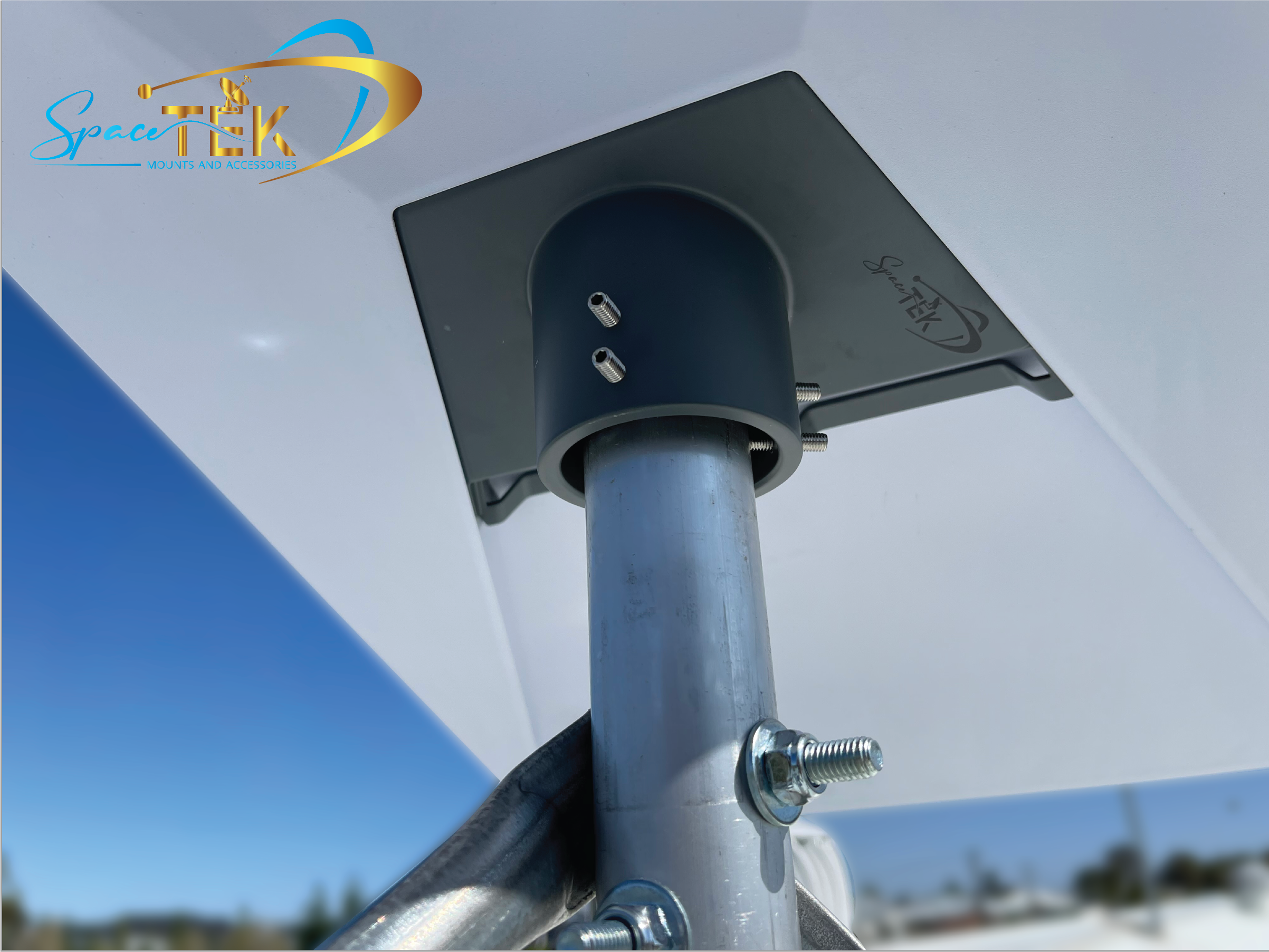

The kit includes a lite-duty Gen 3 pole adapter designed to interface directly with the Starlink V4 mast.

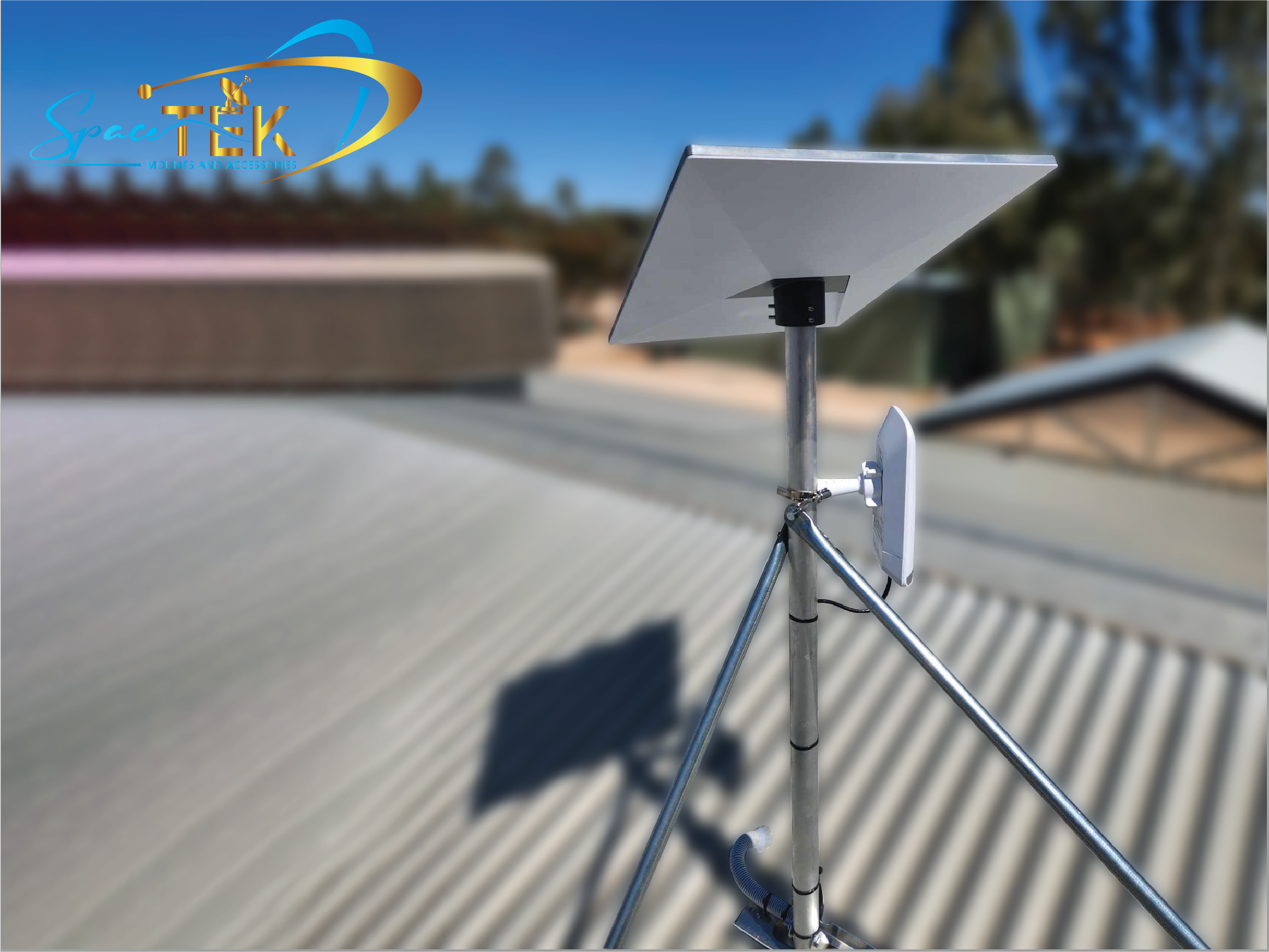

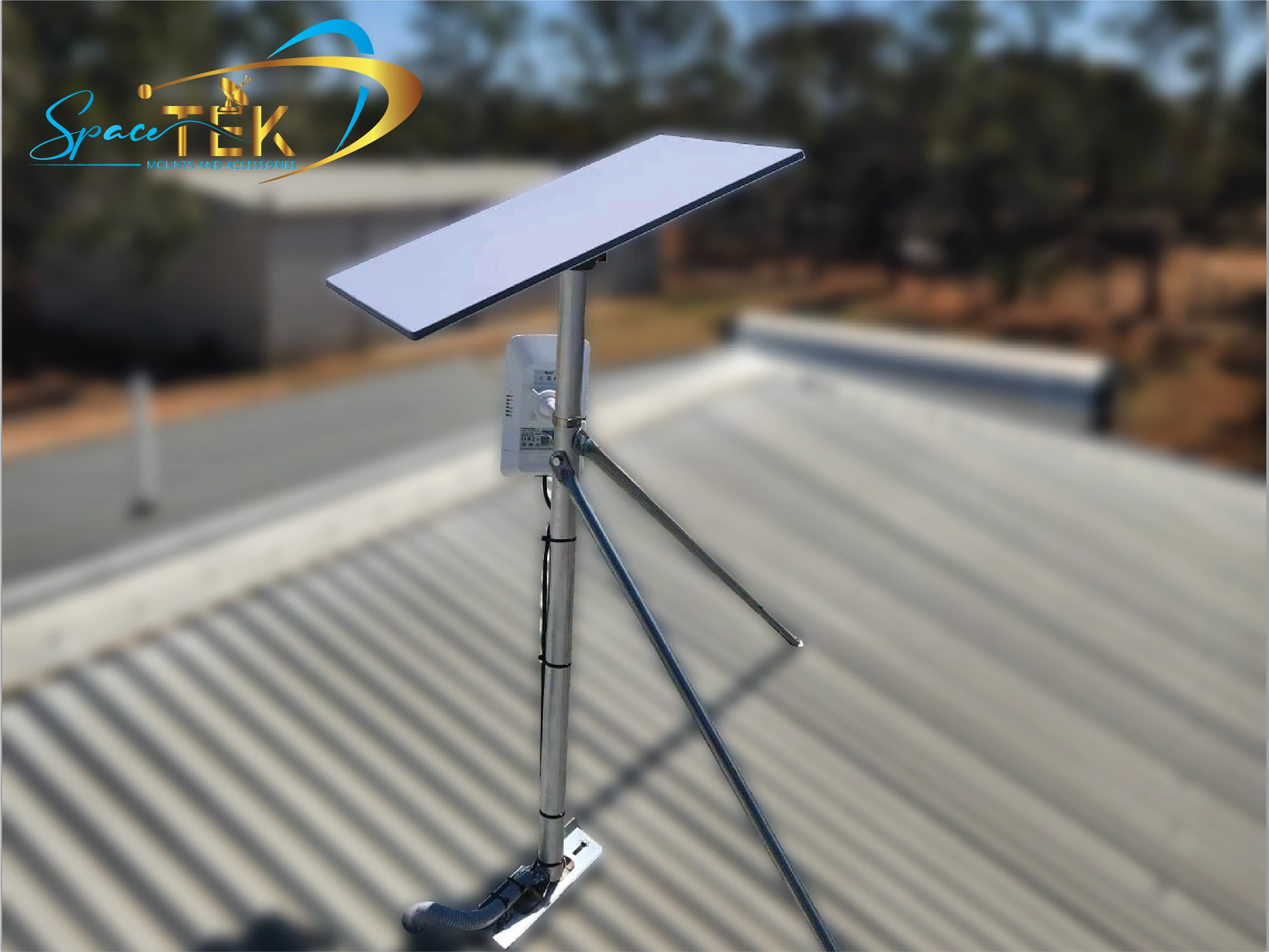

Extended pole height options are available to improve obstruction clearance and allow additional equipment (such as secondary antennas or Wi-Fi hardware) to be mounted beneath the terminal where required.

Key Features

✔️ Gen 3 (V4) Compatibility - Designed specifically for the Starlink Gen 3 rectangular terminal and mast interface.

✔️ Corrugated Metal Roof Design - Geometry suited to metal roofing profiles commonly used on Australian homes and sheds.

✔️ Heat & Airflow Clearance - Elevated mounting height reduces exposure to roof radiated heat during high-temperature conditions.

✔️ Lite Duty Pole Adapter Included - Precision-machined adapter ensures correct mast alignment and secure retention.

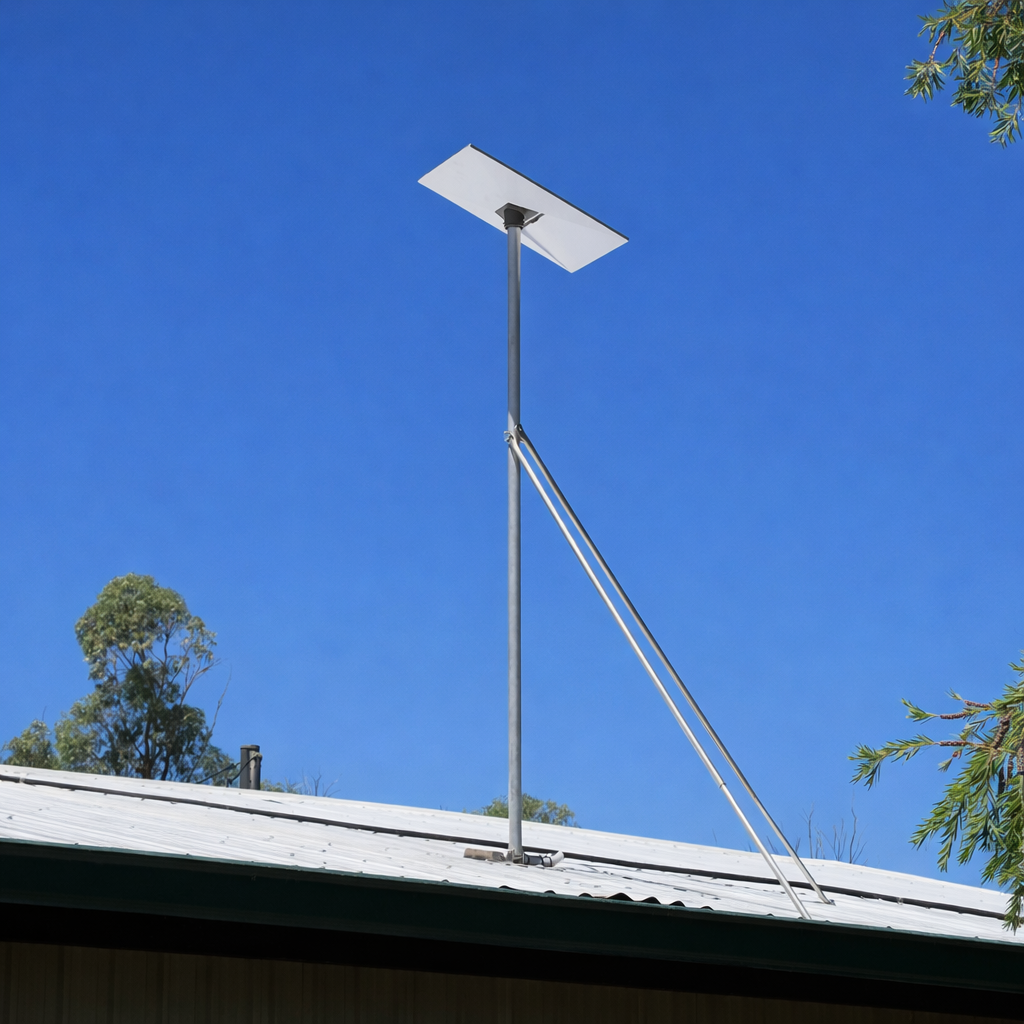

✔️ Extended Height Options - Longer variants provide improved line-of-sight and space for secondary antennas or accessories.

Specifications

• Compatibility: Starlink Gen 3 (V4) rectangular dish

• Mount Type: Fixed tin/metal roof mount kit

• Roof Type: Corrugated metal roofing

• Adapter Type: Lite duty pole adapter (included)

• Installation: Permanent building structure

• Pole Length Options: Standard and extended variants

• Fasteners: Roof-compatible fixings required (not included)

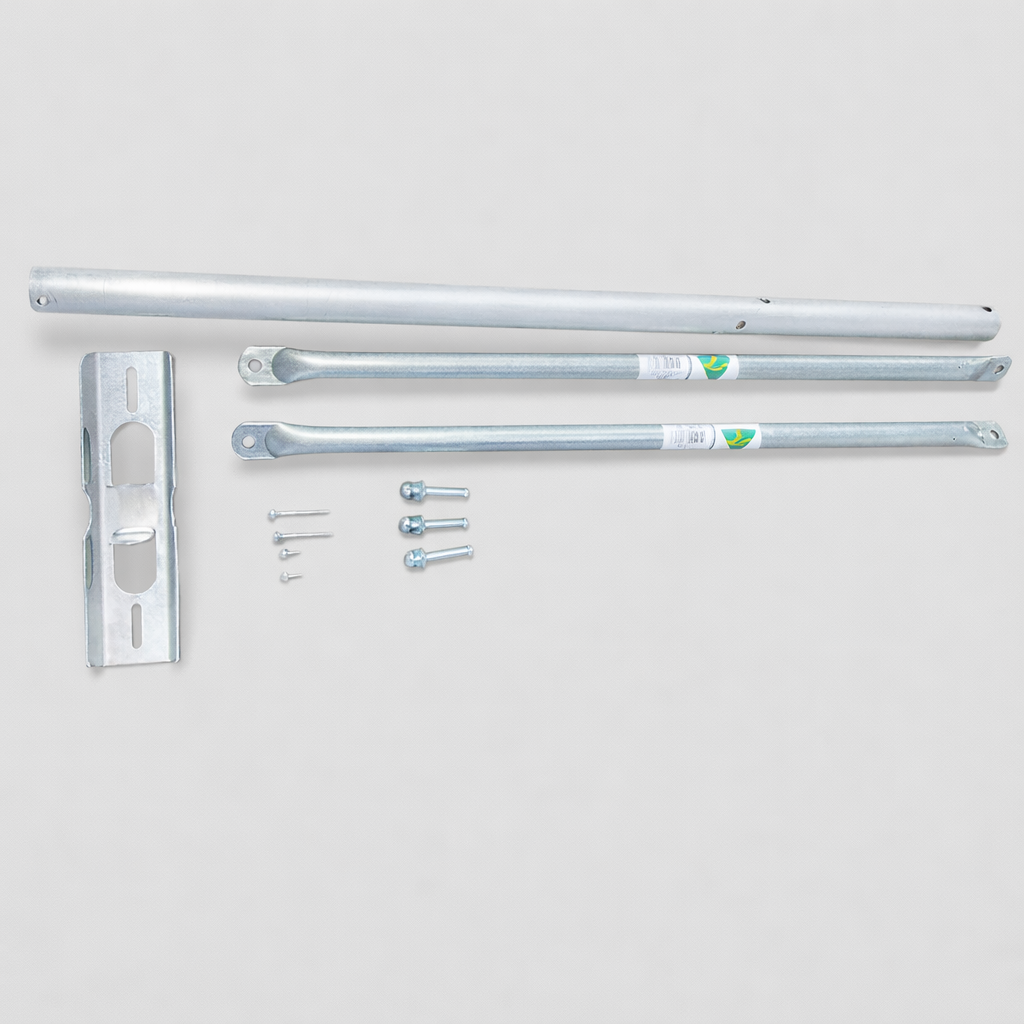

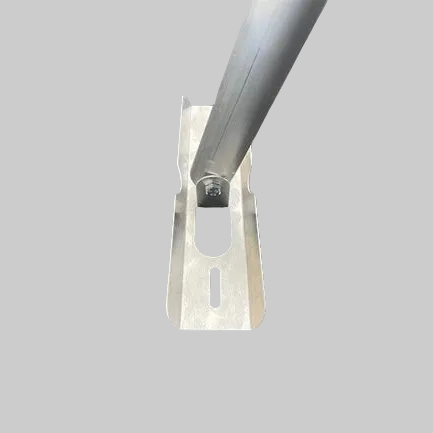

• Pack Contents: Tin roof mount assembly + Gen 3 pole adapter + grub screw

Installation Overview

Installation reference Video:
A step-by-step tripod erection and mounting process is demonstrated in the official installation video (Gen 2 terminal shown for method reference only). Use the same procedure for Gen 3 with the supplied adapter.

1. Identify a structurally sound roof location with clear sky visibility.

2. Position the mount over roof battens or structural members.

3. Mark and pre-drill fixing points as required.

4. Apply suitable roofing sealant to all penetration points.

5. Secure the mount using roof-rated fasteners.

6. Attach the Gen 3 terminal to the supplied pole adapter.

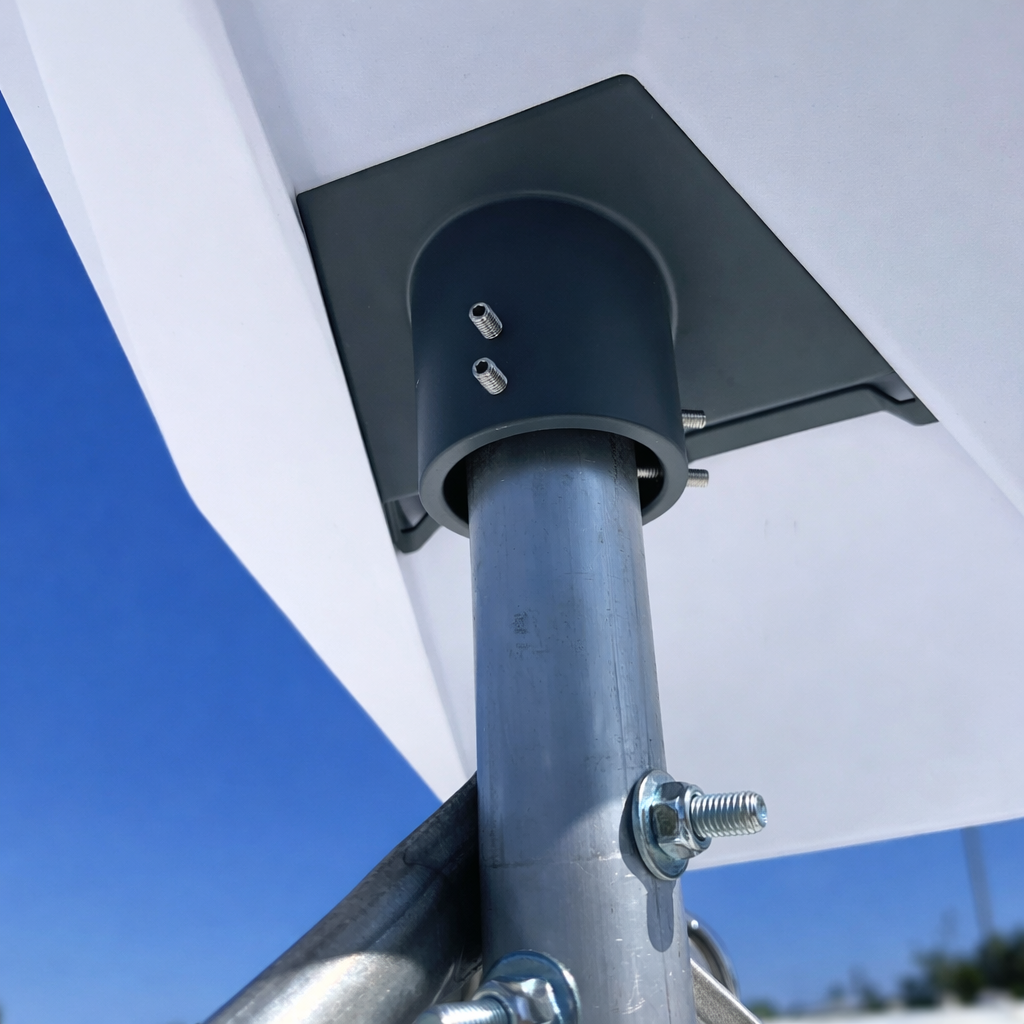

7. Set orientation and tighten the supplied grub screw.

8. Fine-tune alignment using the Starlink App.

Important Notes

⚠️ Not suitable for ground, freestanding, or portable installation.
⚠️ Roof penetrations must be sealed to prevent water ingress.
⚠️ Ensure installation is performed on structurally sound roofing only.
⚠️ Professional installation is recommended for rooftop applications.

Ideal Use Cases

✅ Residential metal roofs
✅ Rural sheds and outbuildings
✅ Fixed building installations
✅ Obstruction-prone locations requiring additional height
