Starlink Mini Caravan Builder Premium Bundle

Description

Starlink Mini Compatible - Caravan Builder Premium Bundle

Permanent Caravan or RV Roof Installation Kit with power, mount, cables and IP68 cable entry.

A complete fixed-roof installation system for caravan manufacturers, custom van builders, and premium touring van fit-outs.
This bundle provides a permanent exterior mounting solution compatible with the Starlink Mini, using the V-Cell ruggedised housing kit (with S mounting rails), Australian certified 35V power booster, IP68 bulkhead socket, compliant waterproof entry gland, and all required cables and fixings.

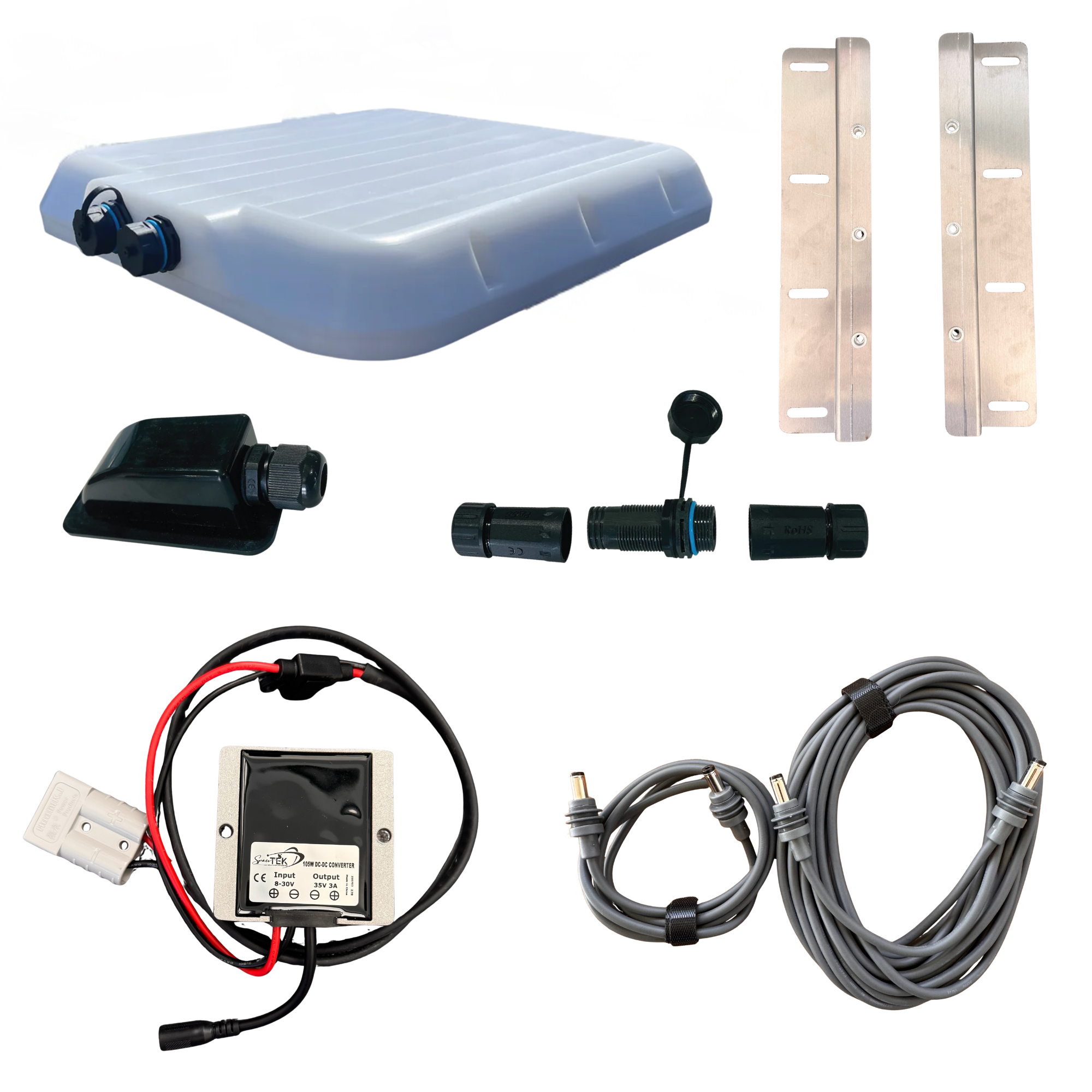

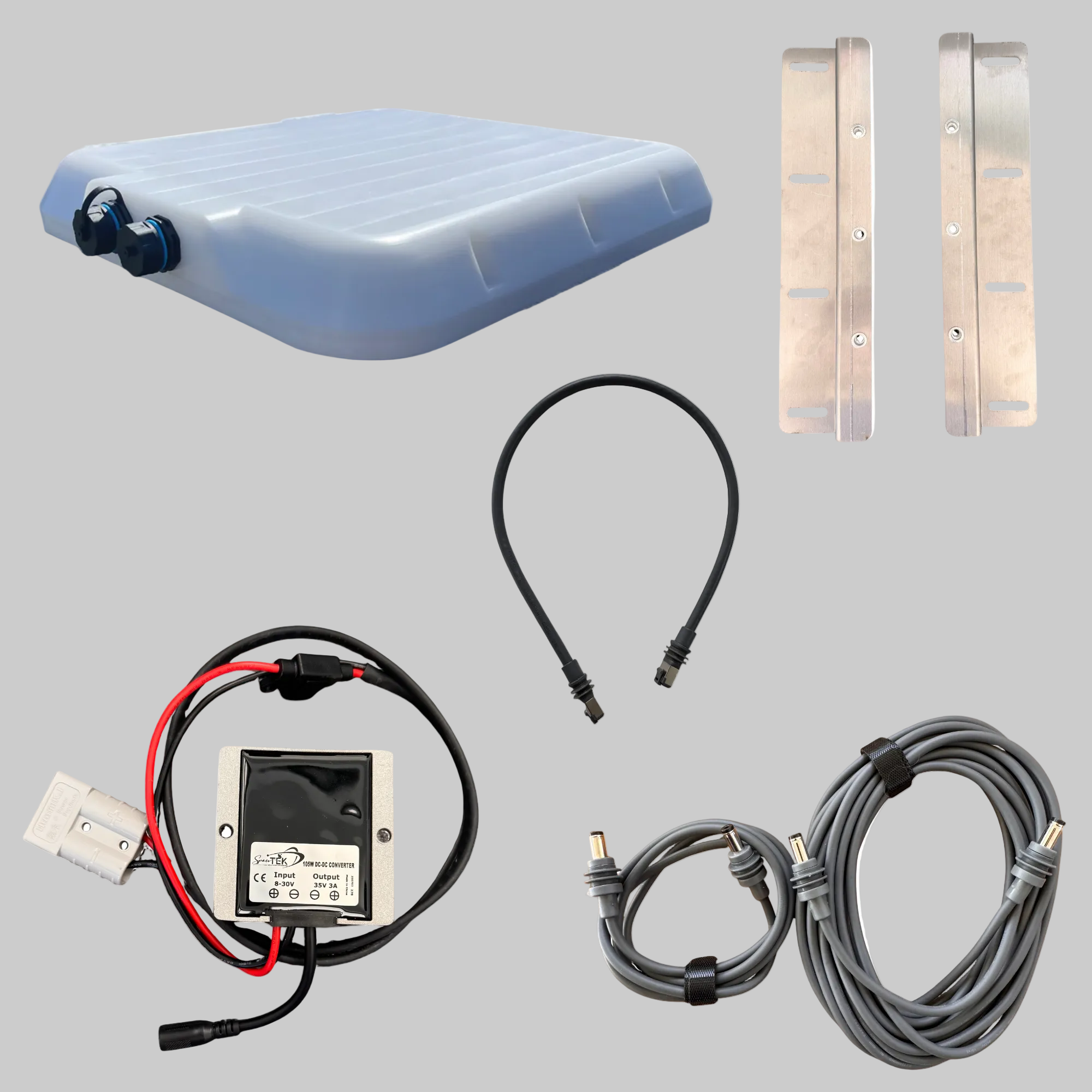

Kit Inclusions:

• 1 x Starlink Mini V-Cell rugged enclosure kit - IP68 Mine Spec.
• 2 x IP68 Bulkhead Sockets for DC Power and RJ45 Data for the V-Cell.

• 2 x Starlink Mini DC Power Cables (Short & Long).
• 1 x Starlink Gen 3, RJ45 Cable (0.5m for internal V-Cell connection ONLY) *note below TIP 💡
• 2 x Aluminium S-Rail Mounts for the V-Cell
• 1 x Certified Regulated DC Voltage Booster 12v to 35v in Anderson configuration.
• 1 x Waterproof Cable Entry Gland (Choose Colour)
• Fastener Pack (please double check suitability for your specific install)

Note: Starlink Mini terminal is NOT included.

Tip 💡:  If you want to by-pass the Starlink Mini's integrated router & wifi, or simply connect to the Starlink Mini in LAN mode, a longer data cable (Gen 3 RJ45) will also be required (this is not included in this bundle) but can be purchased here.

Key Features

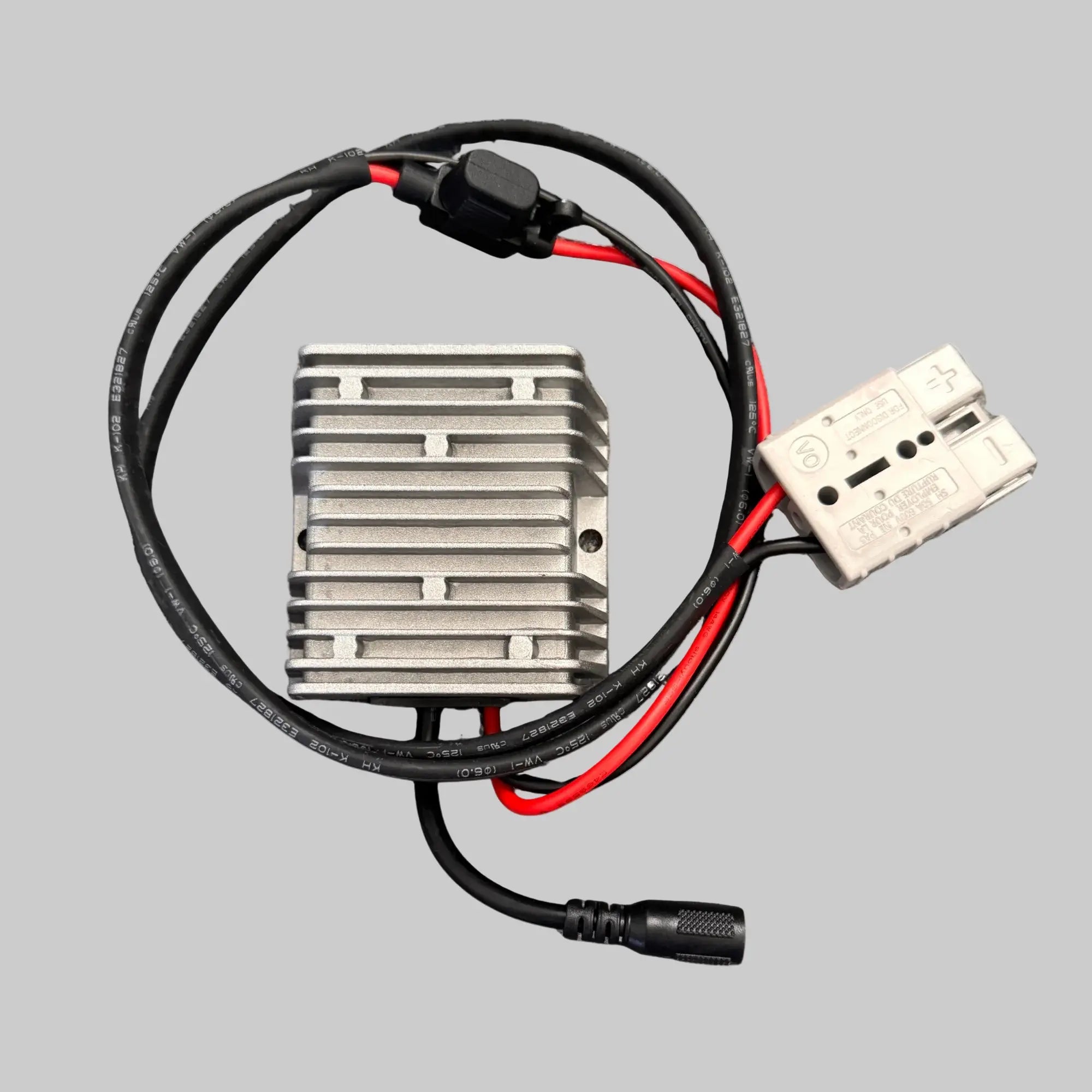

✔️ Australian Certified 12 V → 35 V Voltage Booster (Anderson Plug)
Provides stable, regulated 35 V output to ensure consistent Starlink Mini performance across all caravan electrical systems.

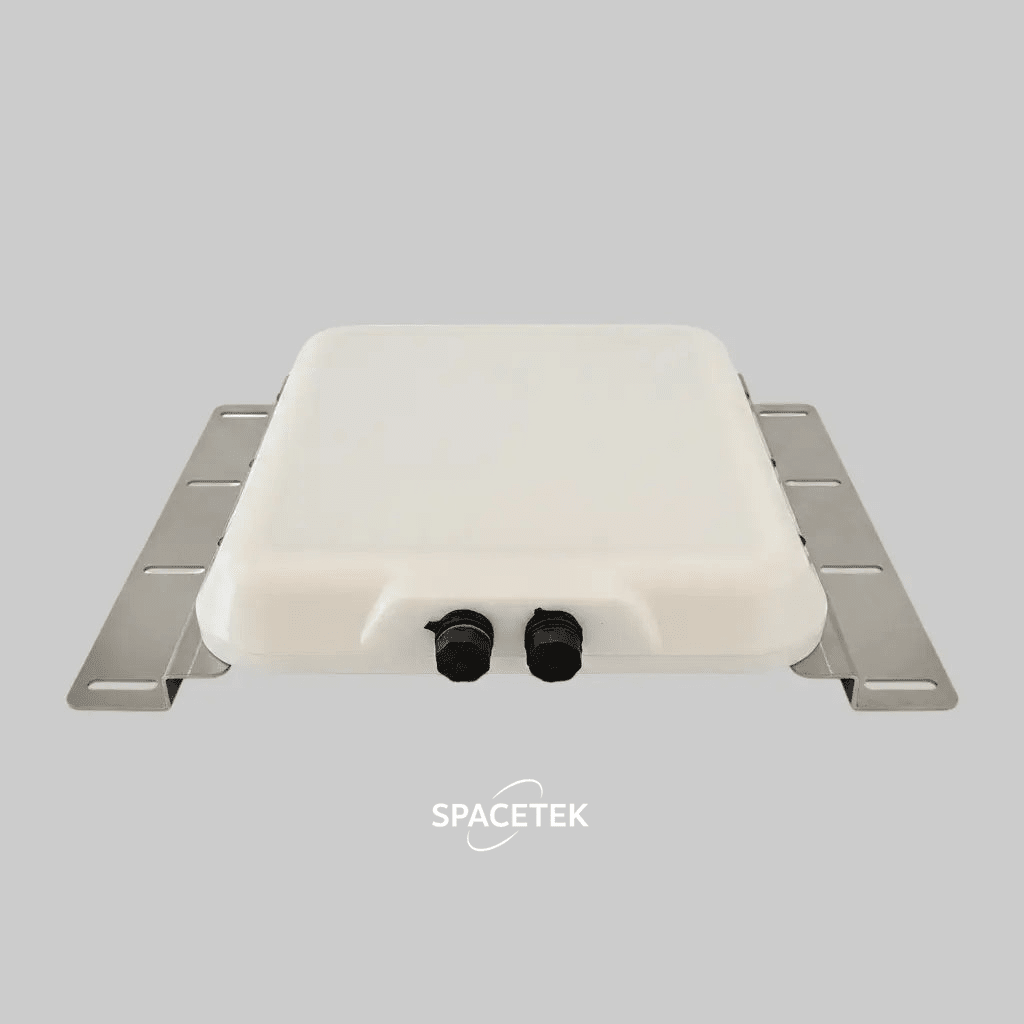

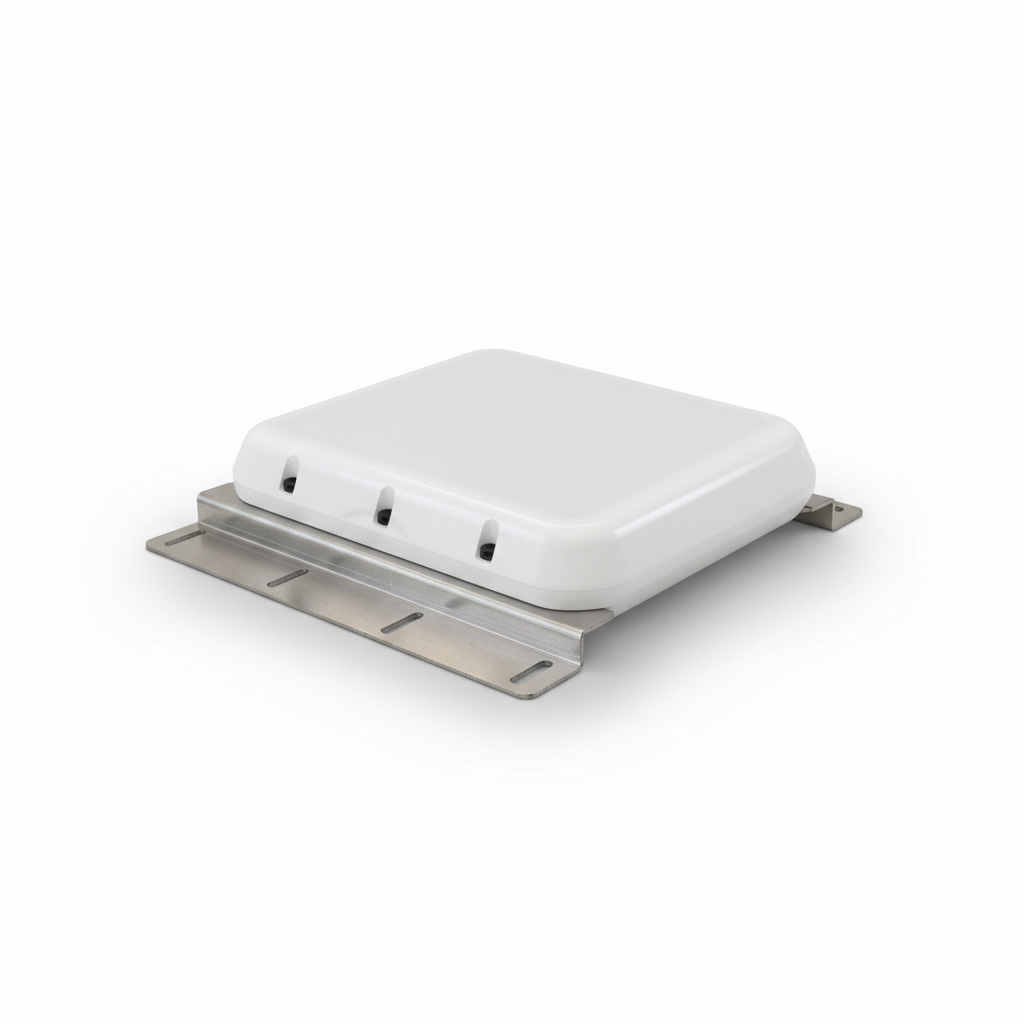

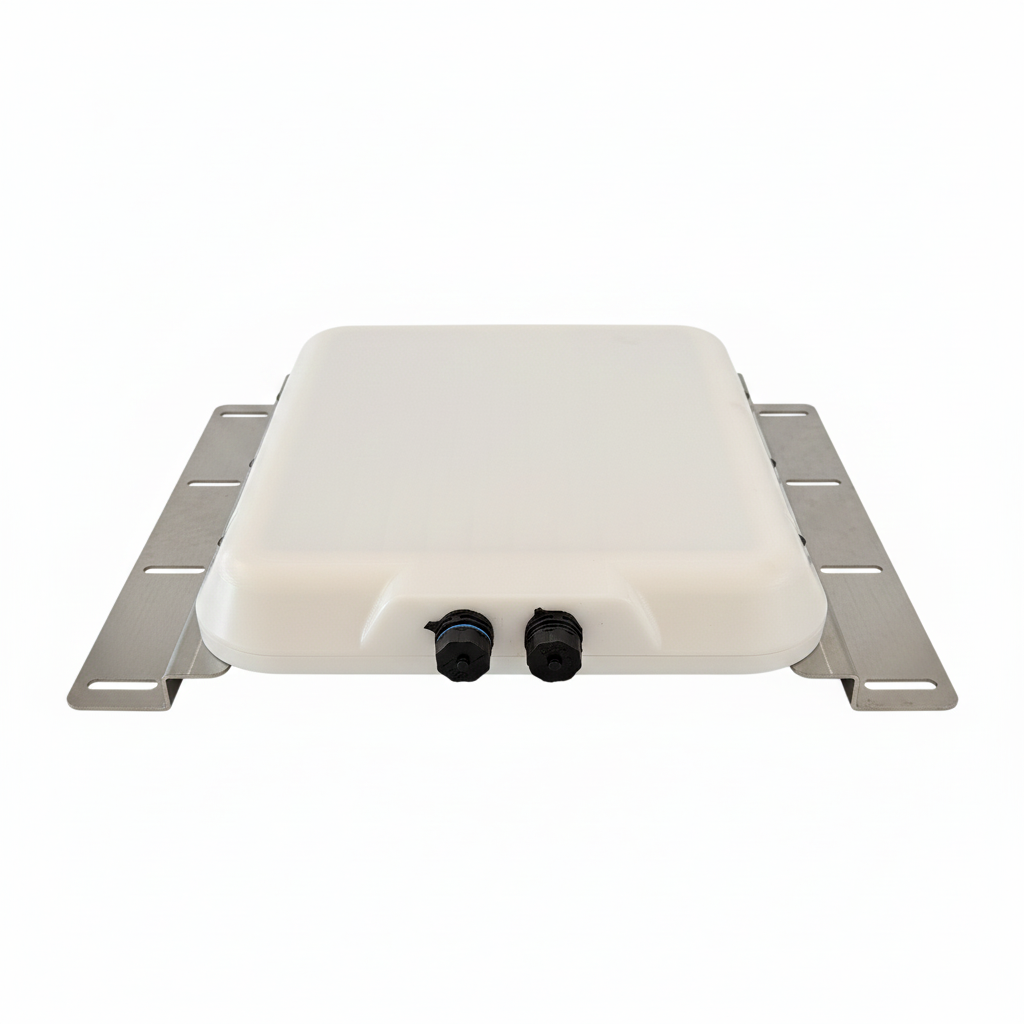

✔️ V-Cell Rugged Housing with Roof Mount Rails & Data Sockets
Fully enclosed, Australian-made mine-spec protection engineered for permanent installation on caravan roofs.

✔️ IP68 Waterproof Cable Entry Gland
Maintains a sealed and compliant penetration point for DC cable routing into the caravan interior.

✔️ Heavy-Duty DC Cabling
Automotive-rated thick-gauge wiring suitable for conduit, wall cavity, and under-roof routing.

✔️ OEM-Ready Installation Standardisation
Provides manufacturers with a repeatable, consistent installation method across vehicle models.

Specifications

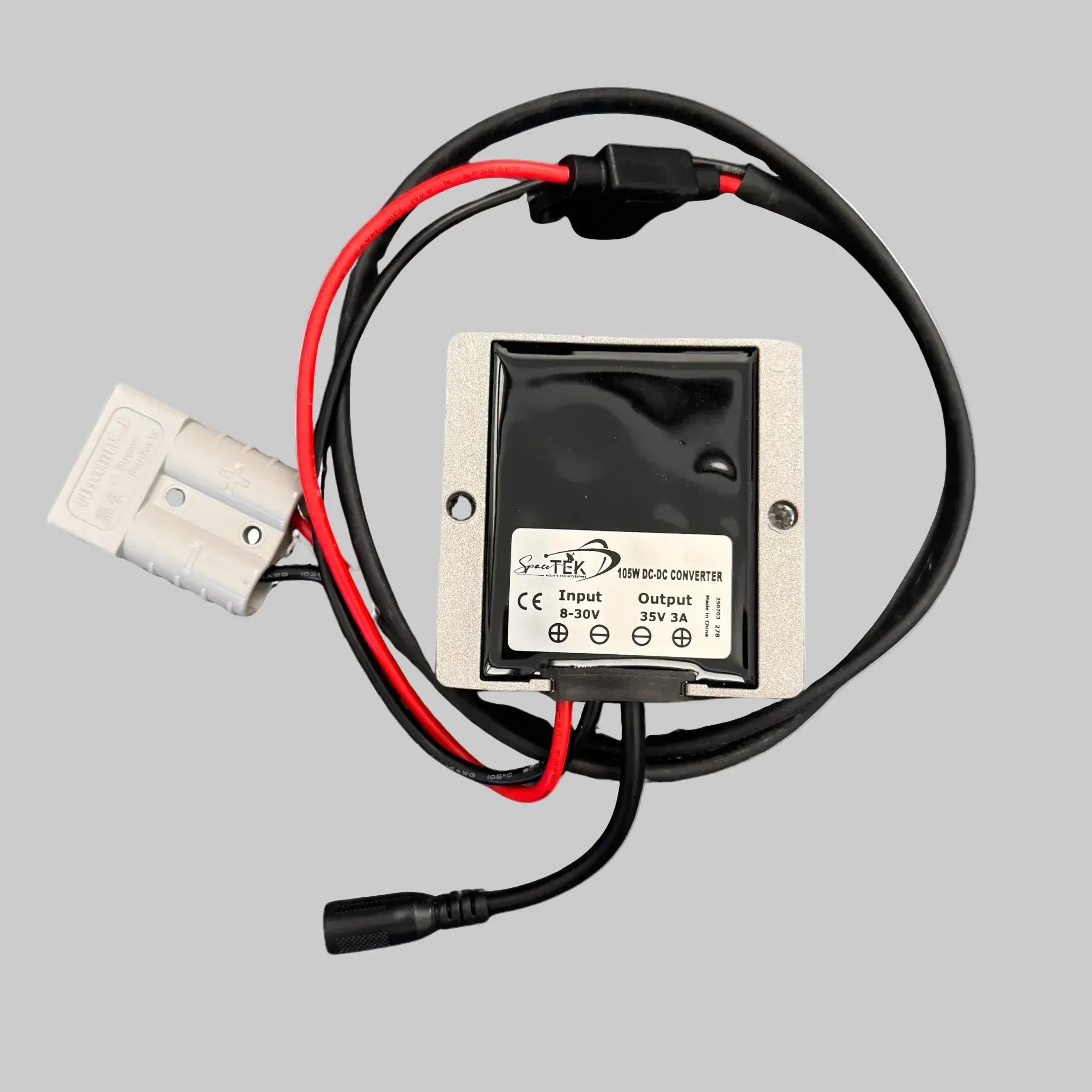

• Voltage Booster Input: 12–30 V DC
• Voltage Booster Output: 35 V regulated DC

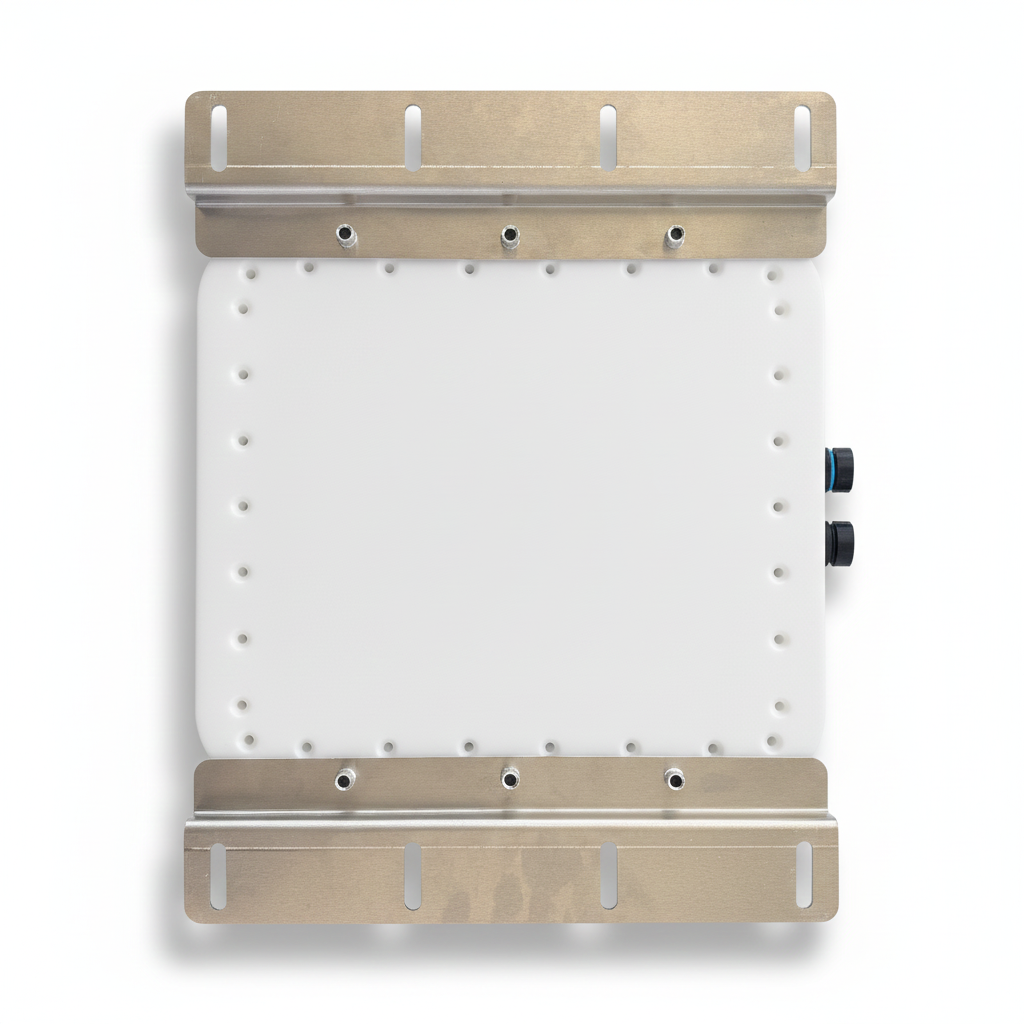

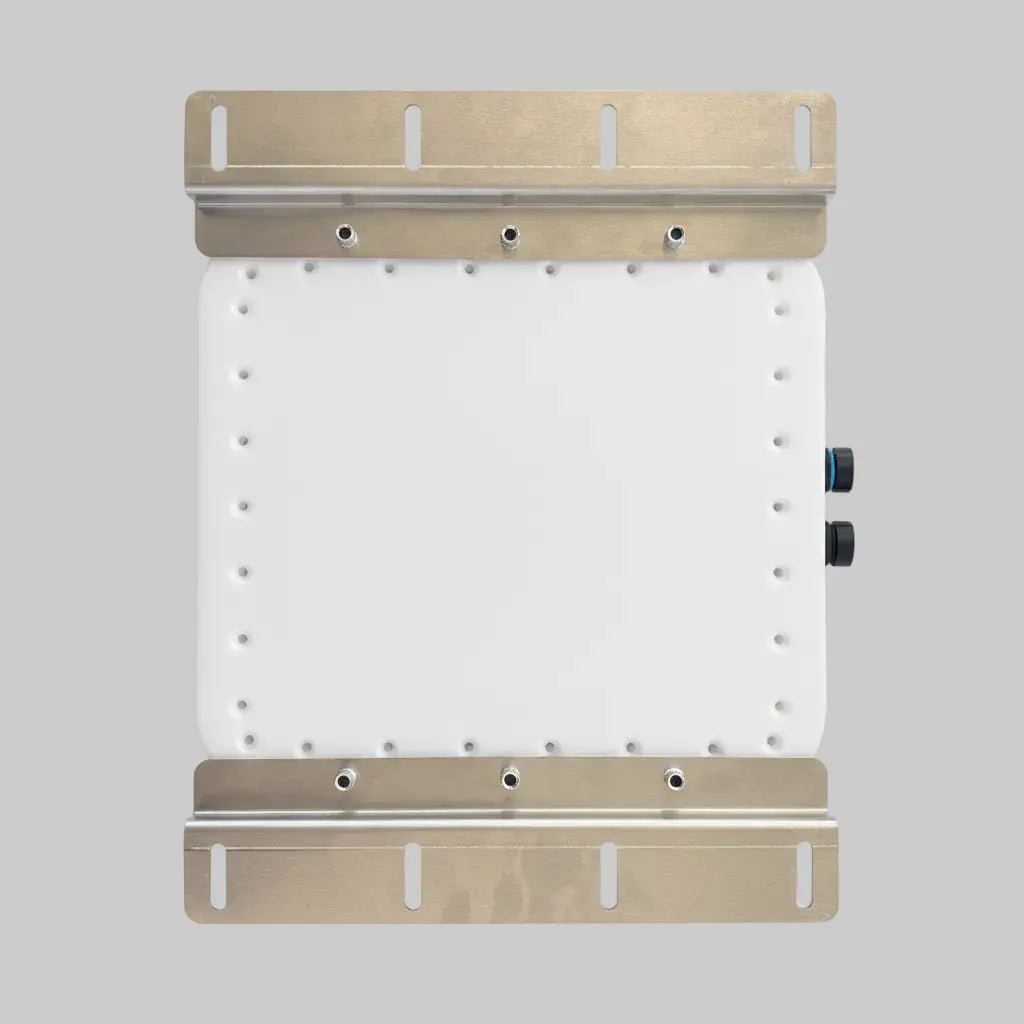

• Housing: V-Cell mine-spec composite enclosure with aluminium mounting rails
• Cable Entry Gland Rating: IP68, UV-stable (white or black)
• Cables Included:
  • 5 m Starlink Mini DC power cable
  • 0.2 m Starlink Mini DC patch cable
  • 0.5 m Starlink Gen 3 Cat6 data cable
• Intended Use: Permanent caravan roof installations
• Compatibility: Starlink Mini (V2 / V3)

Installation Overview

1. Identify a structurally appropriate mounting zone on the caravan roof.
2. Position and secure the V-Cell mounting rails using rated caravan-roof fasteners.
3. Install the bulkhead sockets into the V-Cell housing and tighten securely.
4. Route the DC and Gen 3 data cables from the Starlink Mini to the bulkhead sockets.
5. Install the Starlink Mini into the V-Cell enclosure.
6. Install the IP68 cable entry gland on a sealed flat or curved roof surface.
7. Feed the 5 m DC cable through the gland into the internal electrical bay.
8. Connect the voltage booster to the 12 V supply using the Anderson input.
9. Connect the regulated 35 V output to the Mini DC cable and verify polarity.
10. Perform vibration and movement checks across all fixings before commissioning.

Important Notes

⚠️ This system is designed for permanent vehicle-roof installation only.
⚠️ Use in motion must comply with all road, vehicle, and load regulations.
⚠️ Professional installation is recommended for rooftop and in-motion setups.
⚠️ All roof penetrations must be sealed to prevent water ingress.
⚠️ Spacetek is not liable for improper installation or non-compliant electrical routing.

Ideal Use Cases

✅ Caravan manufacturers (OEM)
✅ Custom van conversion workshops
✅ Off-road hybrid and expedition van builders
✅ Premium touring van fit-outs
✅ Permanent Starlink Mini roof installations
✅ Factory-integrated Starlink Mini systems
✅ Long-term rugged exterior Mini protection
