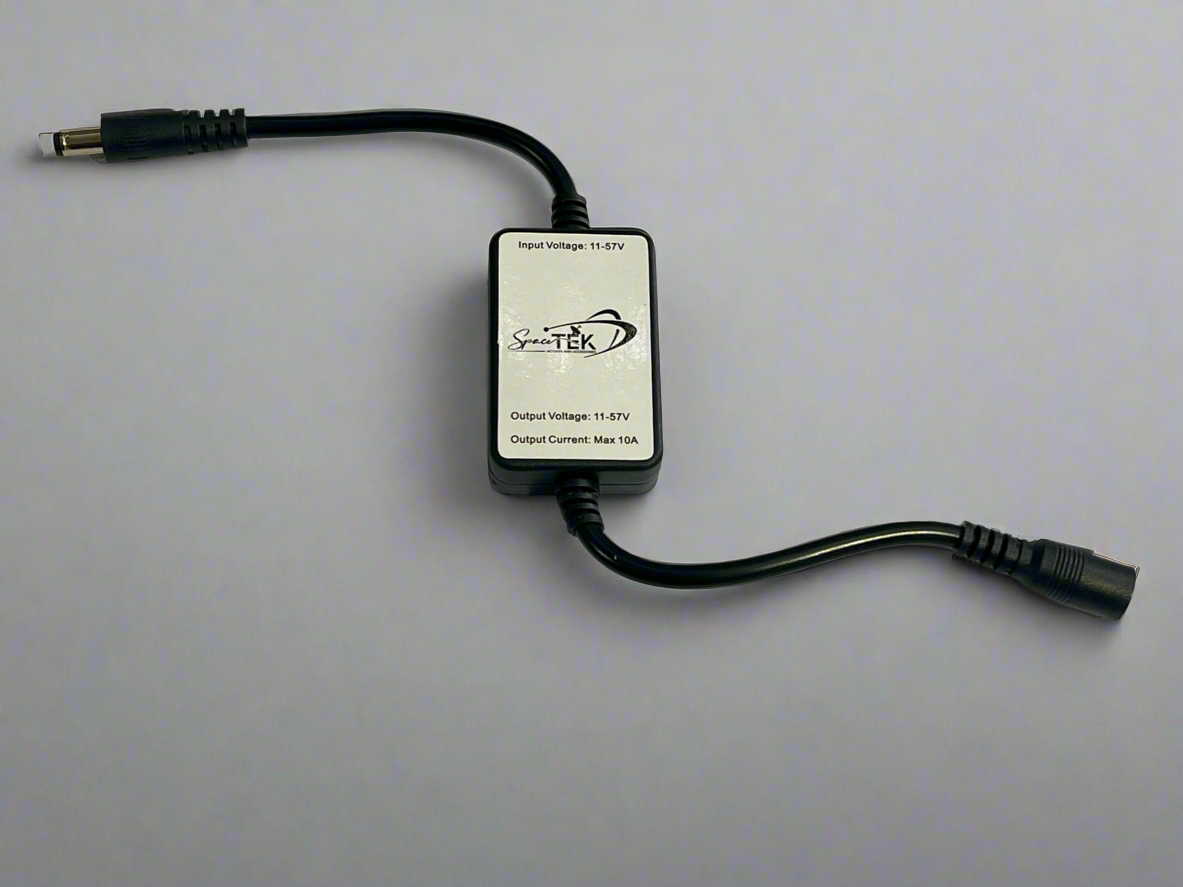

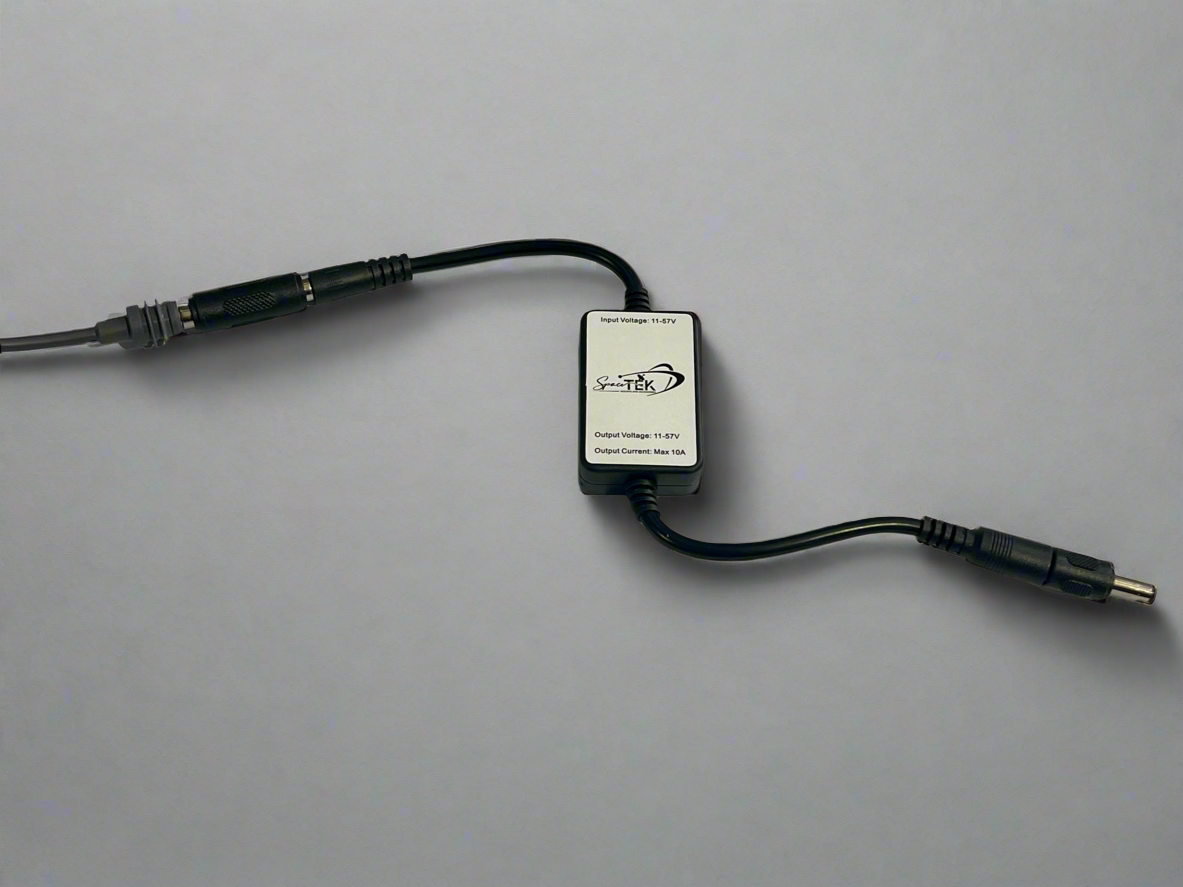

Inline Remote Relay for Starlink Mini & Gen 3 – Plug & Play with Dual Remotes (11–57V DC, 150W Max)

Description

Take full control of your Starlink Mini or Gen 3 terminal's power with this Plug & Play Inline Remote Relay, designed for easy integration into any 12V–56V DC system. Whether you're managing power in a mobile setup like a caravan or 4WD, or in a fixed installation, this inline relay lets you switch power remotely—without cutting or soldering a single wire.

One of the biggest advantages of this setup is its ability to conserve precious battery power when you're off-grid. With a simple click of the remote, you can power your Starlink system on or off—no need to unplug cables or access hard-to-reach switches.

This unit comes pre-paired with two wireless remotes, offering reliable operation straight out of the box. With its wide voltage support (11–57V DC) and 150W max power rating, it’s a safe and convenient solution for controlling power to your Starlink hardware, including the 56V Starlink Gen 3.

⚠️ Important: You must correctly connect the input and output sides of the relay. Connecting it in reverse may damage your setup or prevent operation.

Key Features

✔️ Plug & Play Remote Switching

Pre-wired inline relay system allows remote power control for Starlink Mini or Gen 3 without the need for custom wiring.

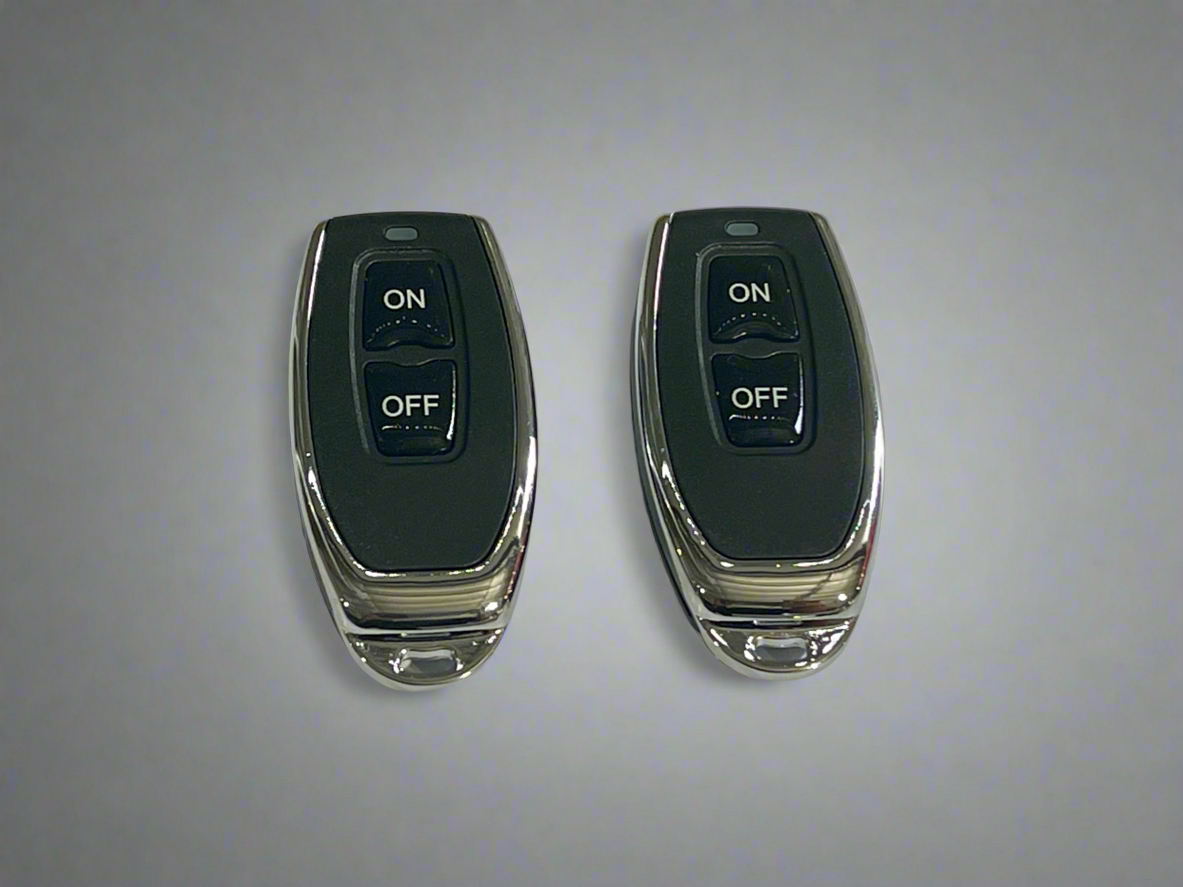

✔️ Dual Remotes Included

Two wireless remotes are included and pre-paired for instant use. Keep one as a spare or in a secondary location.

✔️ Wide DC Voltage Compatibility (11–57V DC)

Compatible with 12V, 24V, and up to 56V DC systems—including Starlink Gen 3’s native voltage.

✔️ 150W Max Power Handling

Safely supports devices drawing up to 150 watts, ideal for powering Starlink Mini and Gen 3 standard terminals.

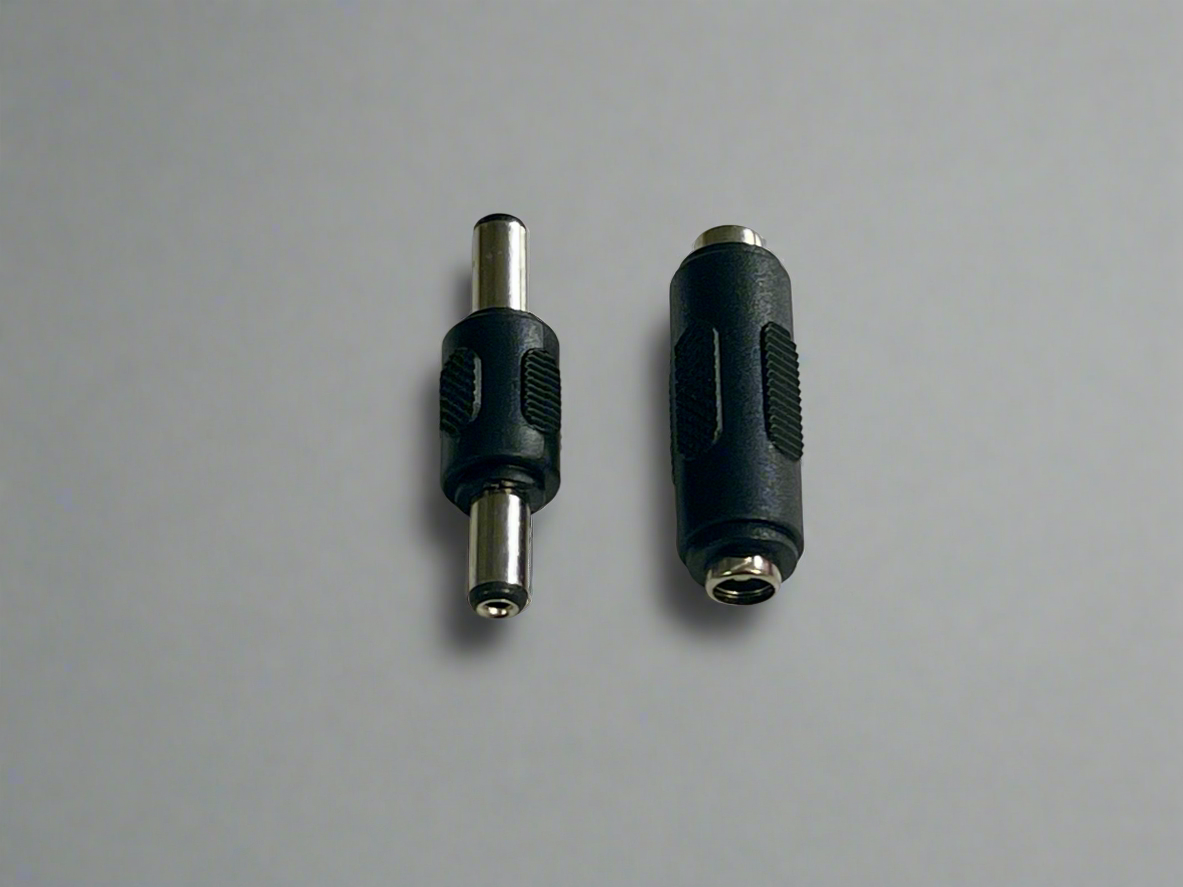

✔️ DC 2.1mm Gender Changers Included

Includes male-to-female and female-to-male DC 2.1mm adapters, so you can customise the input and output ends depending on your cable and power supply setup.

✔️ IP63 Rated Enclosure

Fully dust-tight and resistant to water spray, making it suitable for protected outdoor and vehicle installations.

Specifications

• Input Voltage Range: 11V–57V DC

• Maximum Power Handling: 150 Watts

• Connector Type: DC 2.1mm (Includes gender changers for flexible setup)

• Remotes Included: 2x Pre-Paired Wireless Remotes

• Relay Type: Inline, Remote-Controlled

• Enclosure Rating: IP63 – Dust-tight, spray-resistant

• Compatibility: Starlink Mini, Starlink Gen 3 (Standard, 56V), and other DC-powered devices under 150W

Installation Overview

1. Identify Input and Output – Refer to markings or included instructions to correctly identify the power IN and OUT sides of the relay.

2. Use Gender Changers as Needed – Match connectors to your existing power supply and device cables.

3. Plug in Your Starlink and Power Source – Connect your Starlink Mini or Gen 3 terminal and ensure the power supply is within spec.

4. Test Remotes – Use either of the pre-paired remotes to switch your system on/off.

Important Notes

⚠️ Correct Polarity Required – Ensure the input and output are not reversed.

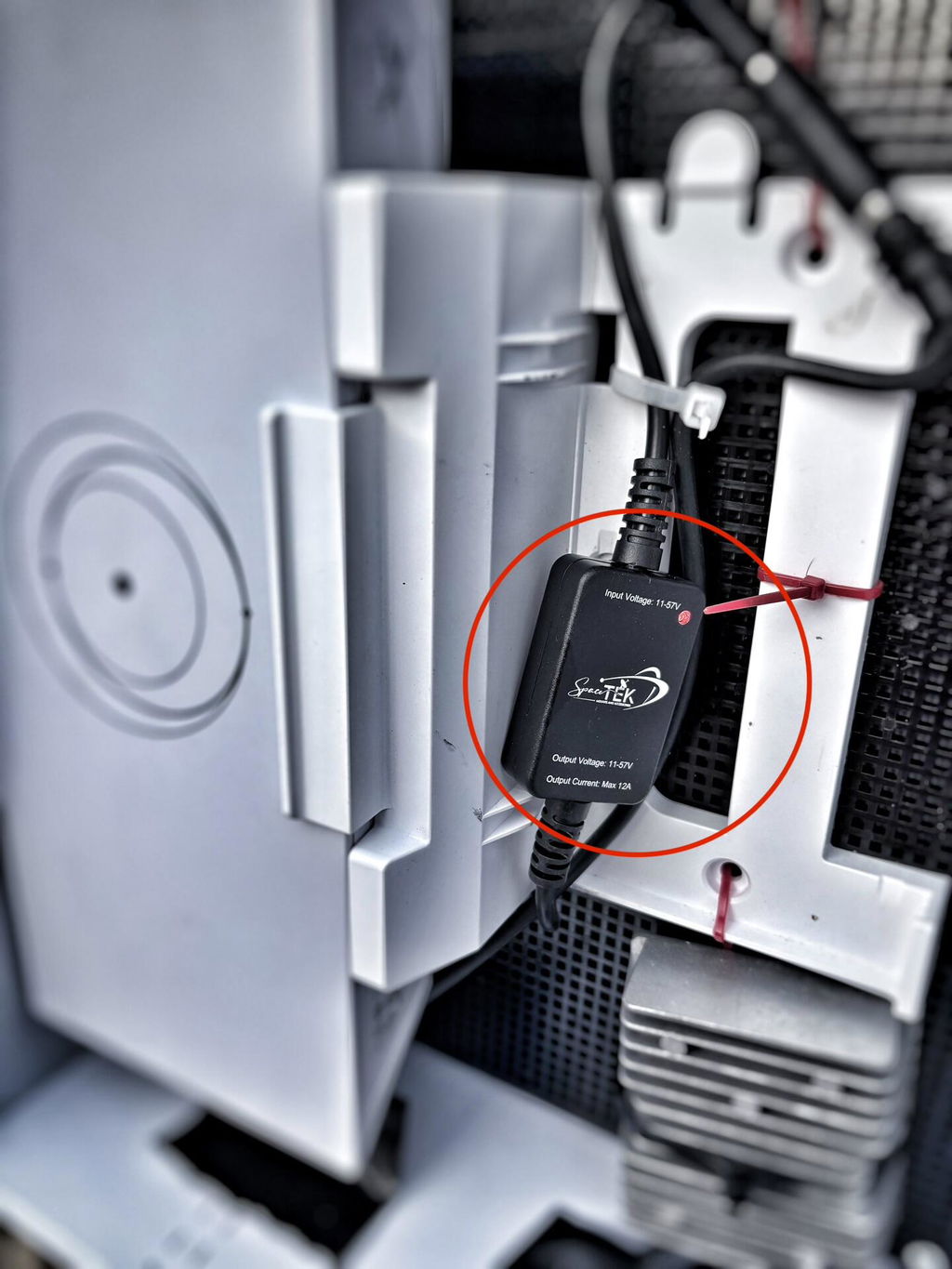

⚠️ Not Designed for Use in Motion Without Enclosure – Secure the relay inside a protected housing when used in mobile installations.

Ideal Use Cases

✅ Remote powering of Starlink Mini in caravans, RVs, or boats
✅ Switching Starlink Gen 3 (56V) on/off without unplugging cables
✅ Off-grid power setups using DC battery banks or solar
✅ Systems requiring scheduled or controlled shutdowns via remote

Effortless Power Conservation for Off-Grid Setups

When you're living off-grid or travelling between remote locations, every watt counts. This Inline Remote Relay makes it easy to cut power to your Starlink system when it's not in use, helping you stretch your battery life further—without needing to manually unplug anything. For reliable, remote-controlled switching in any setup, this is your go-to solution.
