Tin/Metal Roof - Base Mounting Kits (Starlink V5, Wifi Extenders, 5G Repeaters)

Specifications

Aluminium Roof Mounting Kits for IT & Telco requirements

These are our base Aluminium kits to suit mounting on a corrugated roof for Starlink (V5 included with BYO Pole Adaptor), as well as other IT/Telco devices.

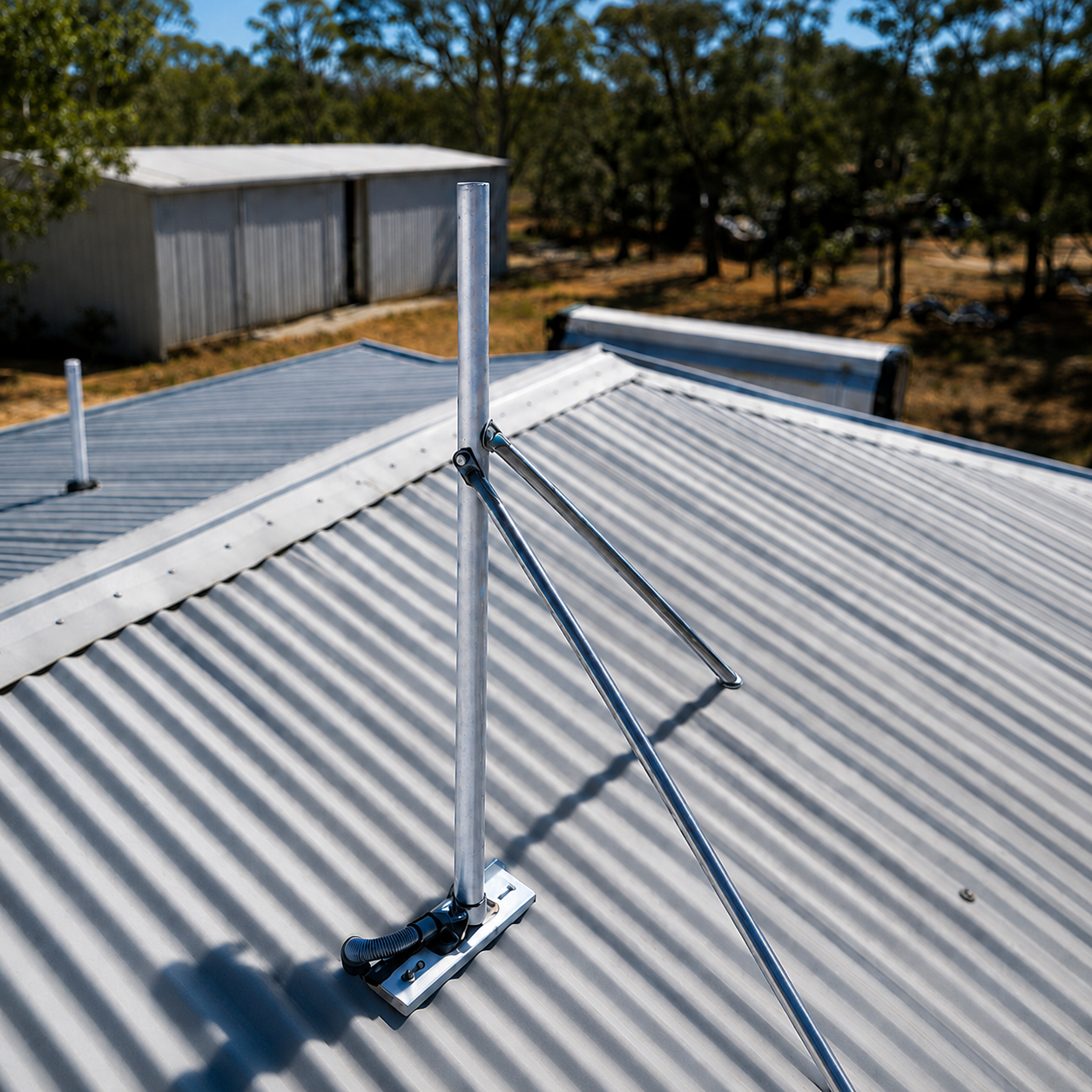

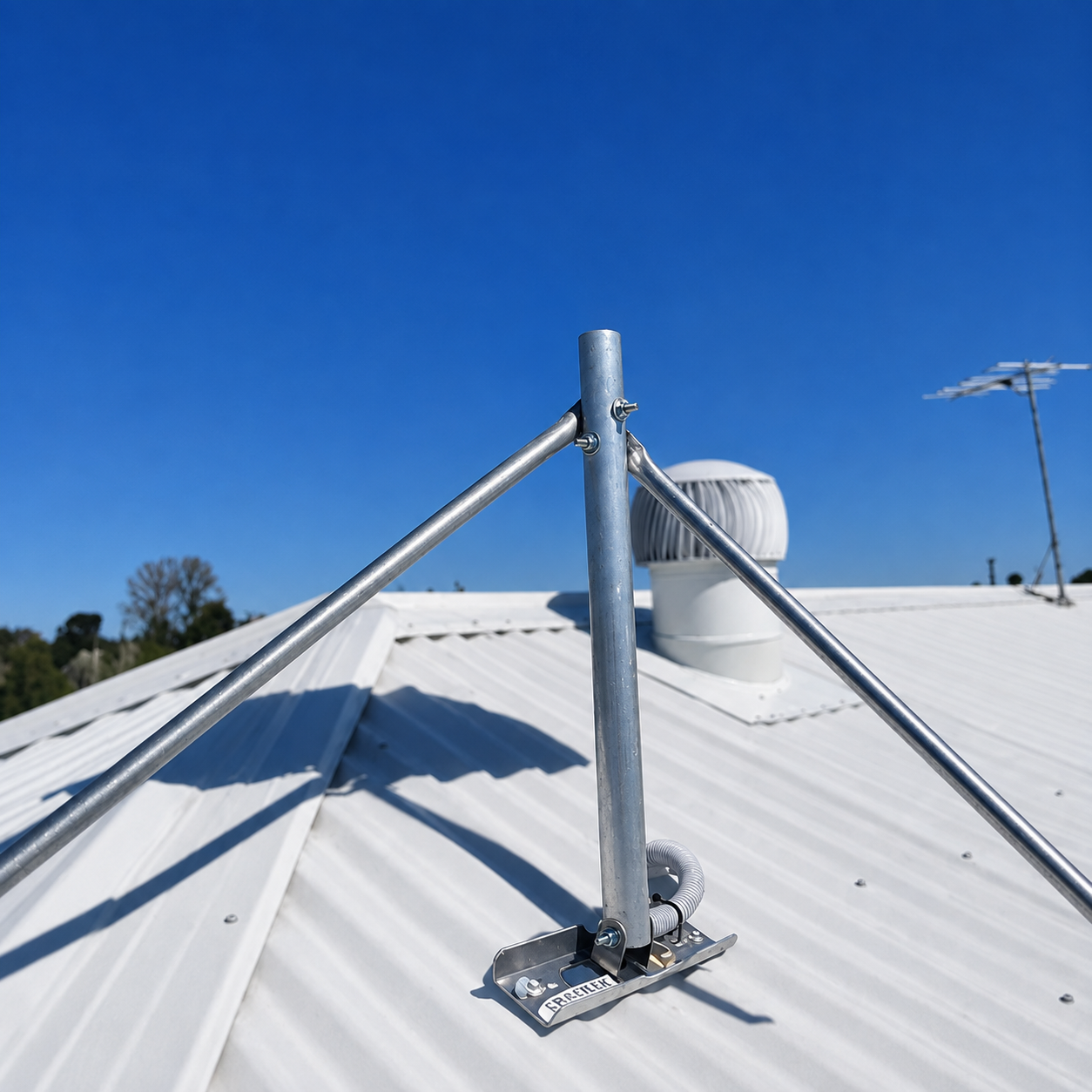

The Spacetek Metal/Tin Roof Mount Kit is engineered for fixed installation of IT devices on corrugated roofing. The system provides a rigid, elevated mounting point while maintaining separation from the roof surface to reduce radiant heat exposure and improve airflow around the terminal.  Choose between multiple height options depending on required clearance and line of sight of other equipment.

💡 Please note - A Starlink Pole Adaptor is NOT included in this product kit - please refer to the Starlink Menu to find our complete Starlink mounting kits based on your Starlink mode.

Base Kit Inclusions:

• 2 x Structural Stay Bars (Telescopic male/female pairs in Gal Steel)

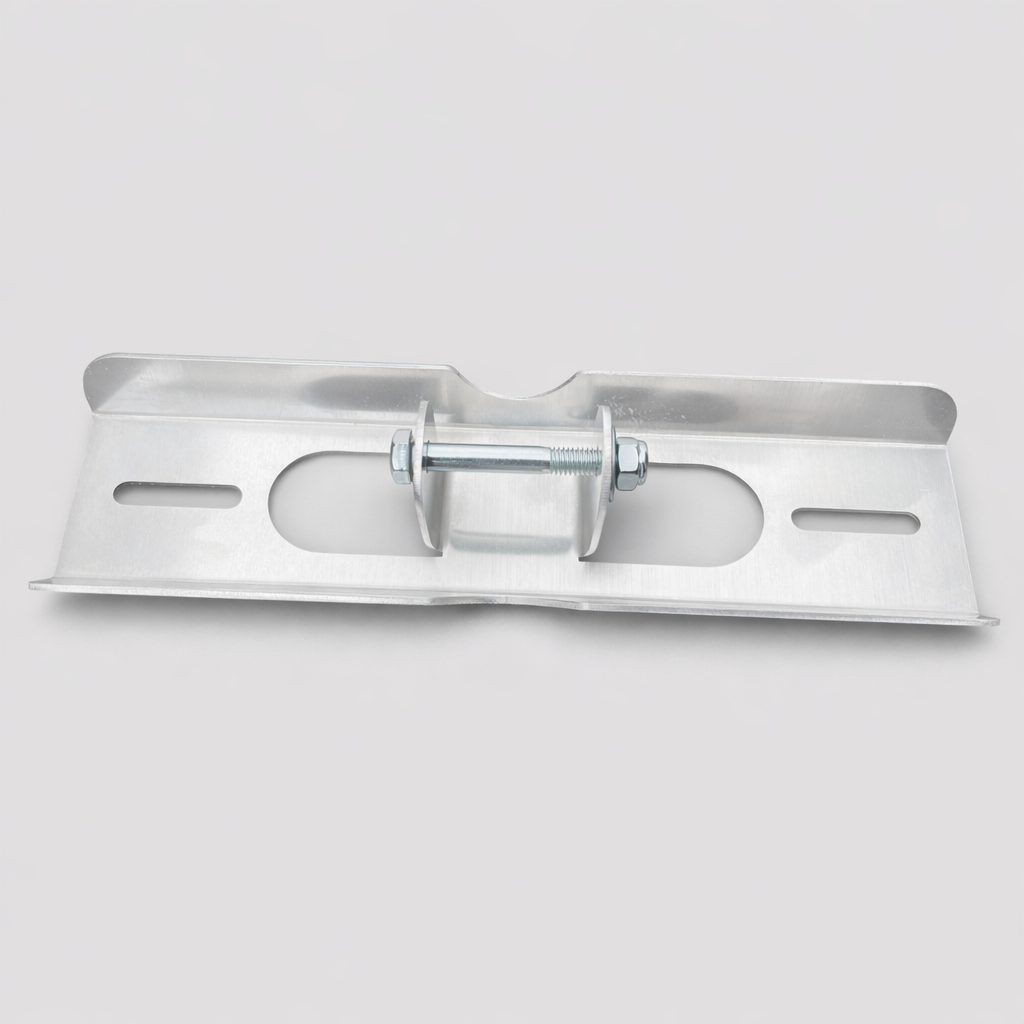

• 1 x Aluminium Base Plate (270mm x 75mm)
• 1 x Aluminium 40mm OD pole mast (choice of height)
• Generic Roof Fixings Pack (please check suitability for your specific install)


You can BYO pole adaptor, or here is the list of Spacetek pole adaptors that will work

• • Gen 3 (V4 or Standard 4, Standard 4x) - UTA-232
  • Gen 3 Performance - UTA-252 only
  • Gen 2 Flat High Performance (Basic & Advanced)
  • Starlink Mini - UTA-231

Extended pole height options are available to improve obstruction clearance and allow additional equipment (such as secondary antennas or Wi-Fi hardware) to be mounted beneath the terminal where required.

Key Features

✅ Broad Compatibility - Designed specifically for the Starlink terminals but can also be used for other IT components like Wifi extenders or 4G/5G repeaters (those adapters are not included).

✅ Corrugated Metal Roof Design - Geometry suited to metal roofing profiles commonly used on Australian & New Zealand homes and sheds.

✅ Heat & Airflow Clearance - Elevated mounting height reduces exposure to roof radiated heat during high-temperature conditions.

✅ Extended Height Options - Longer variants provide improved line-of-sight and space for secondary antennas or accessories.

Installation Overview

Installation reference Video:
A step-by-step tripod erection and mounting process is demonstrated in the official installation video (Gen 2 terminal shown for method reference only which is an accurate description of this Kit with no pole adapter).

Important Notes

⚠️ Not suitable for ground, freestanding, or portable installation.
⚠️ Roof penetrations must be sealed to prevent water ingress.
⚠️ Ensure installation is performed on structurally sound roofing only.
⚠️ Professional installation is recommended for rooftop applications.

Installation Videos
