Starlink Mini Caravan Builder Bundle – Complete 12V DC Integration Kit

A consolidated, OEM-ready DC wiring and power package engineered for caravan manufacturers and professional van builders integrating the Starlink Mini into new builds or retrofit layouts.

This bundle provides the regulated 35 V DC supply, recessed in-wall socket, and short/long DC cabling required for a clean, compliant internal installation across caravan electrical systems.

⚠️ Follow electrical safety and local regulations when routing DC cabling.
⚠️ Spacetek is not liable for improper installation or non-compliant electrical work.

Key Features

✔️ Complete 12 V → 35 V DC Power Path — Includes booster, recessed socket and internal/external cabling for a unified Mini-ready wiring system.

✔️ 35 V Regulated Output — The DC-DC booster maintains stable voltage for Starlink Mini under variable caravan battery conditions.

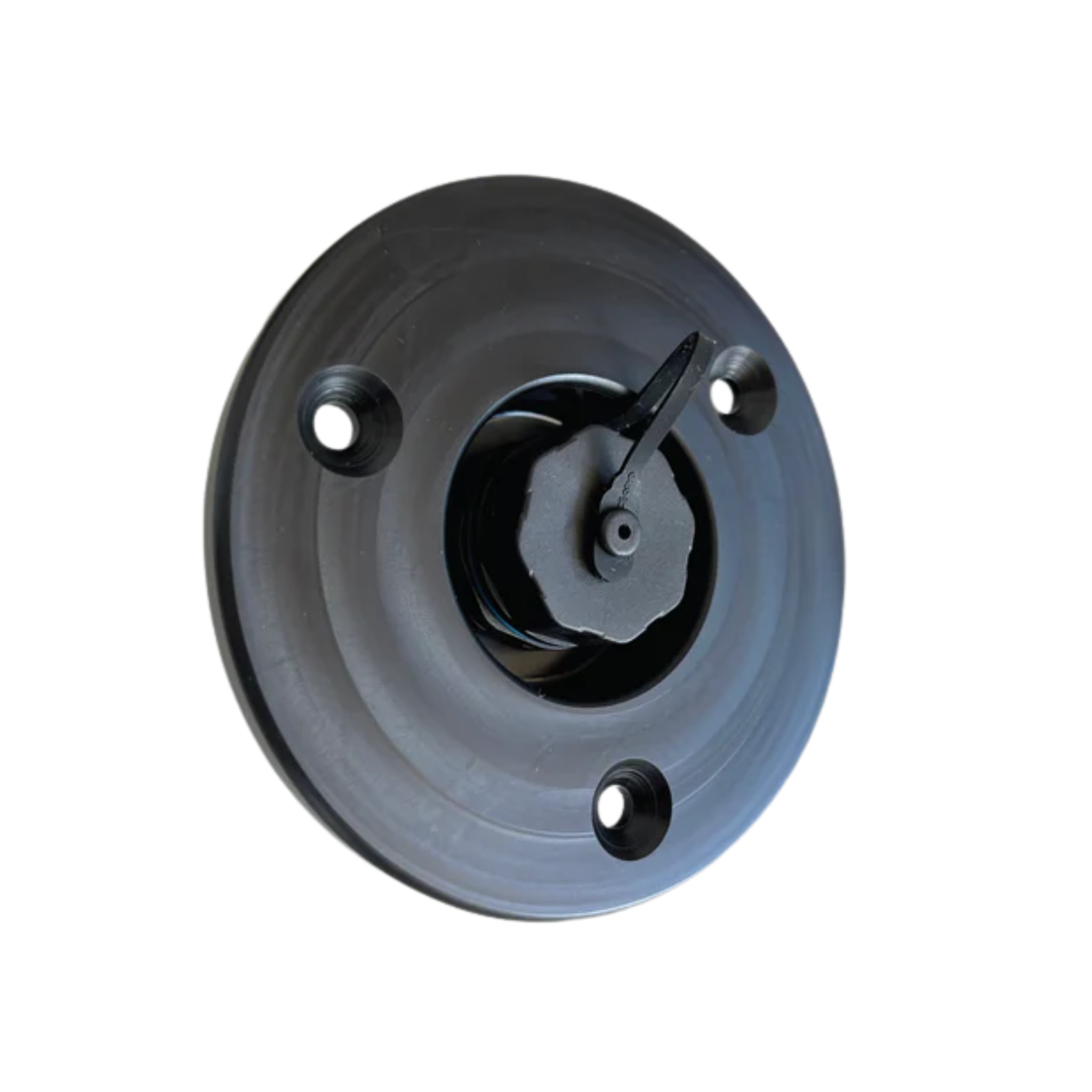

✔️ Recessed In-Wall Socket — Provides a protected, flush DC pass-through point for internal fit-outs.

✔️ Short Internal Cable + Long External Cable — Supports both internal routing and extended placement of the Mini outdoors.

✔️ Caravan-Grade Components — All items selected for RV electrical environments, cabinetry routing and exterior cable runs.

✔️ Builder-Standardised Kit — Simplifies OEM wiring looms and ensures consistent installations across multiple vehicle models.

Specifications

• Input Range (Booster): 8–30 V DC

• Output Voltage (Booster): 35 V DC regulated, 3 A

• Booster Input Connector: Anderson-style plug

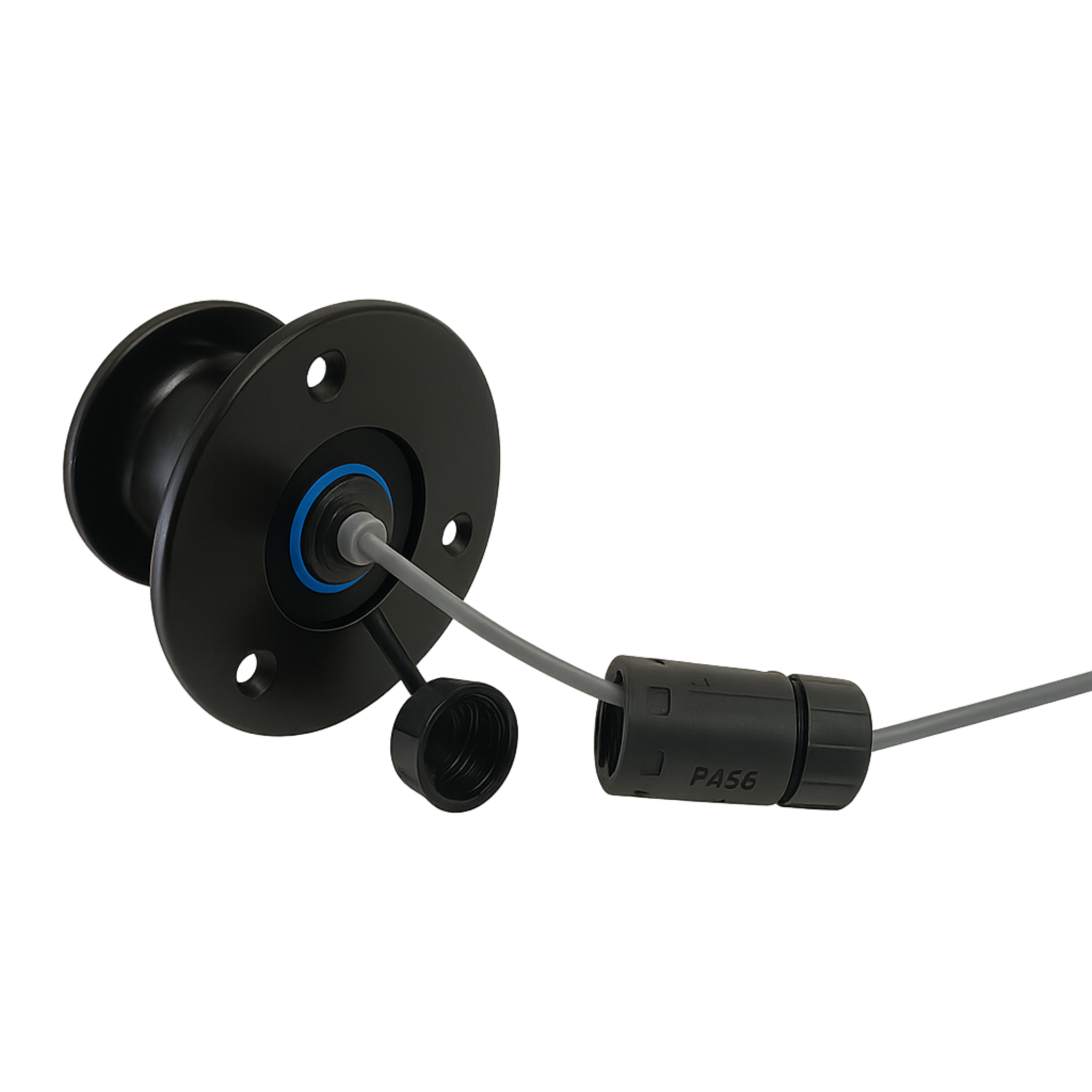

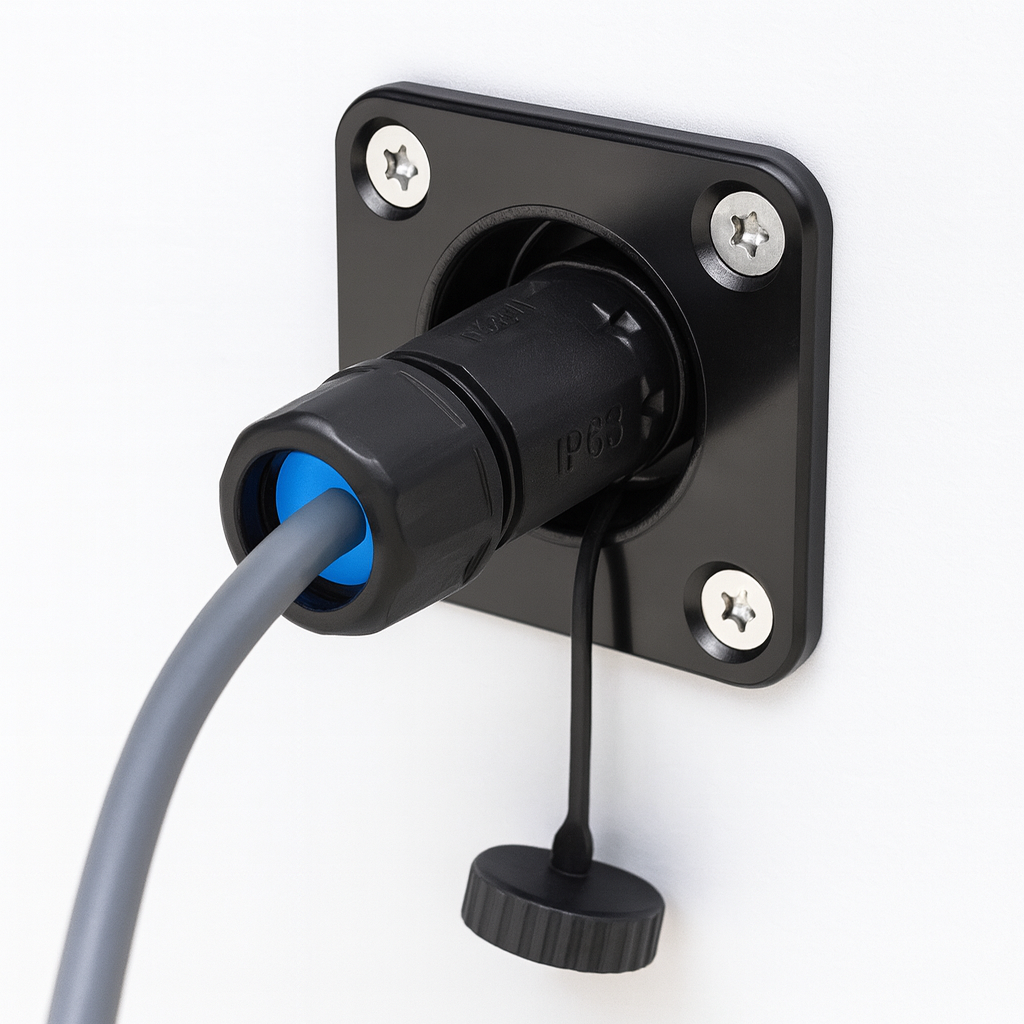

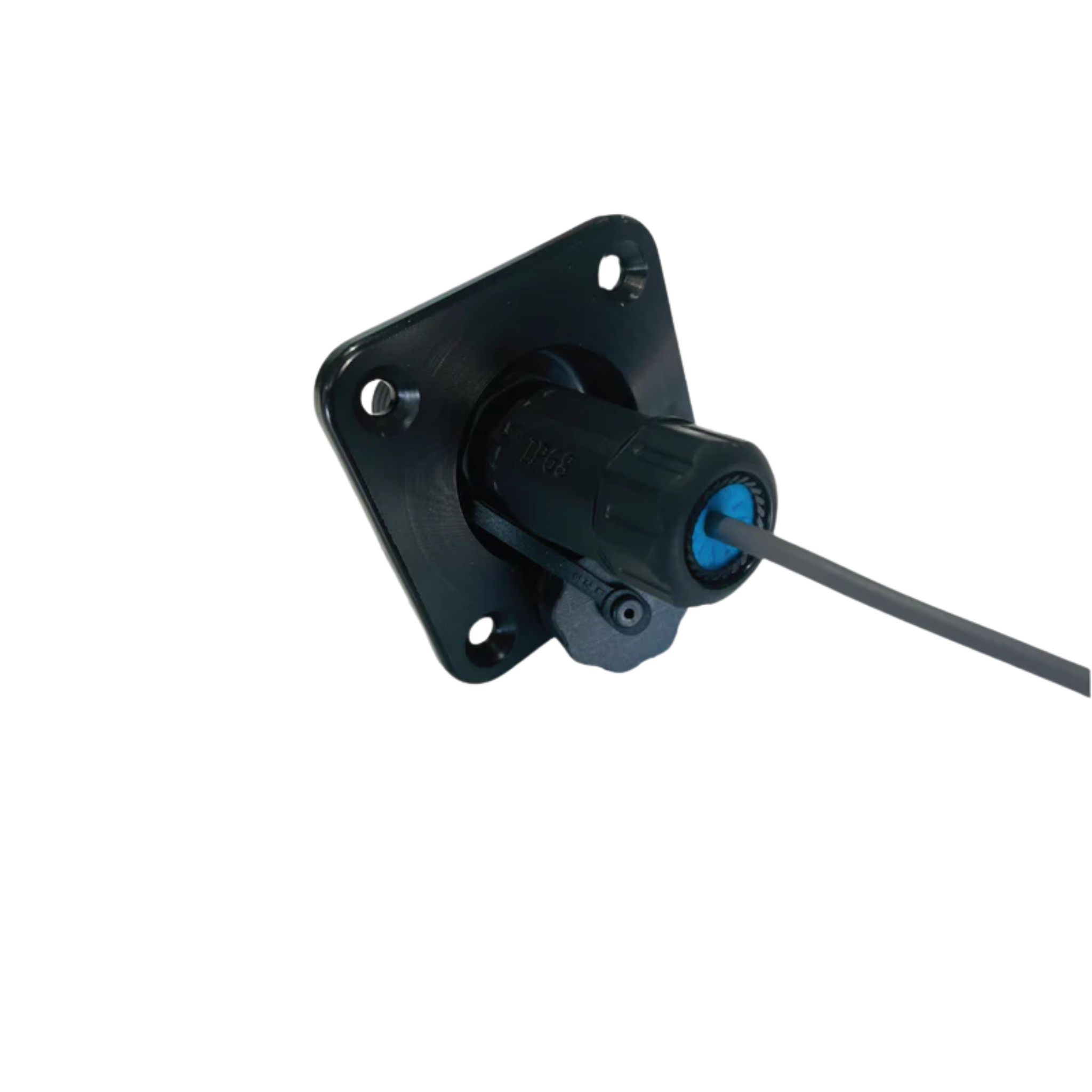

• Socket Options: Round or square recessed DC pass-through

• Short Cable: 2 m Starlink Mini DC power cable (internal routing)

• Long Cable: 20 m heavy-duty Starlink Mini DC power cable (external/extended placement)

• Operating Environment: Caravan electrical systems, internal cabinetry, external cable runs

• Pack Contents:

  • 1 × DC-DC power regulator

  • 1 × Recessed Mini DC socket

  • 1 × 2 m Mini DC cable

  • 1 × 20 m Mini DC cable

Installation Overview

1. Mount the DC-DC booster inside a protected electrical compartment with adequate ventilation.

2. Connect the booster input to the caravan 12 V system using the Anderson-style connector.

3. Route the 2m internal cable between the booster and the recessed DC socket, maintaining appropriate bend radius and strain relief.

4. Install the recessed socket into the wall or panel cut-out using the supplied backing plate.

5. Connect the 20m cable to the external side of the recessed socket and route it externally, avoiding abrasion points and excessive heat sources.

6. Verify polarity, secure all connections, and confirm stable 35 V output before operating the Starlink Mini.

Important Notes

⚠️ Use in motion is at your own risk.
⚠️ Do not modify DC cabling or exceed specified current ratings.
⚠️ Ensure all electrical work complies with caravan electrical standards.
⚠️ Socket installation must prevent conductor strain and avoid sharp edges.

Ideal Use Cases

✅ Caravan manufacturers
✅ Custom van upfitters
✅ Hybrid and off-road caravans
✅ OEM electrical loom standardisation
✅ RV installations using lithium and solar systems
✅ Builders needing a consistent Mini-ready DC wiring kit
