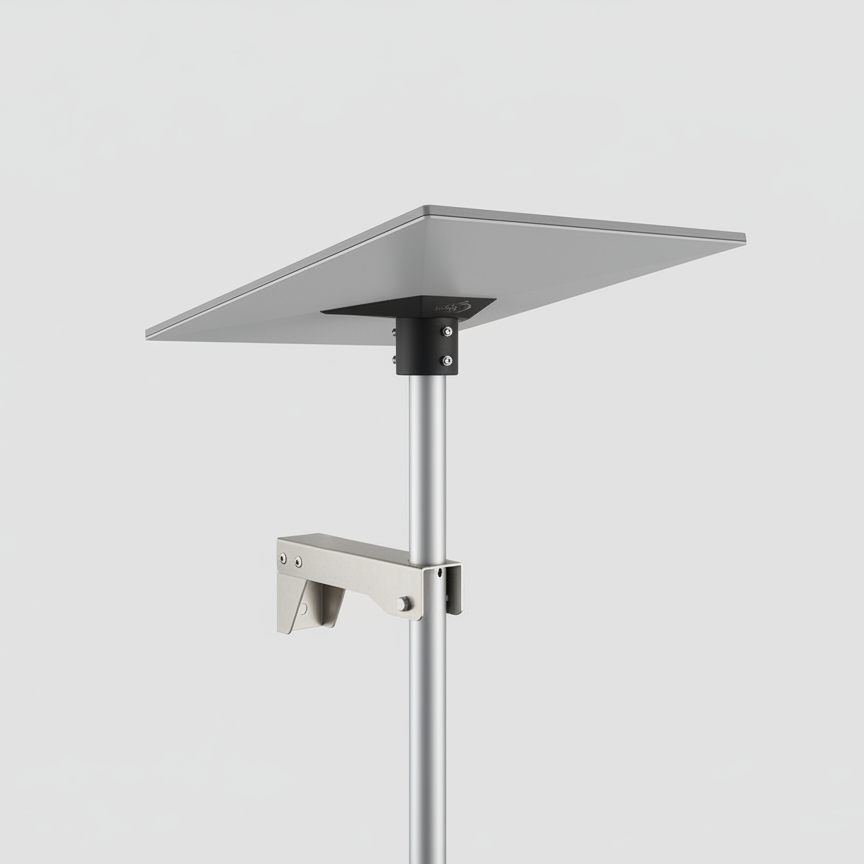

Starlink Atco, Demountable and Site Hut Wall Mount – Gen 3 (V4) Terminal

Description

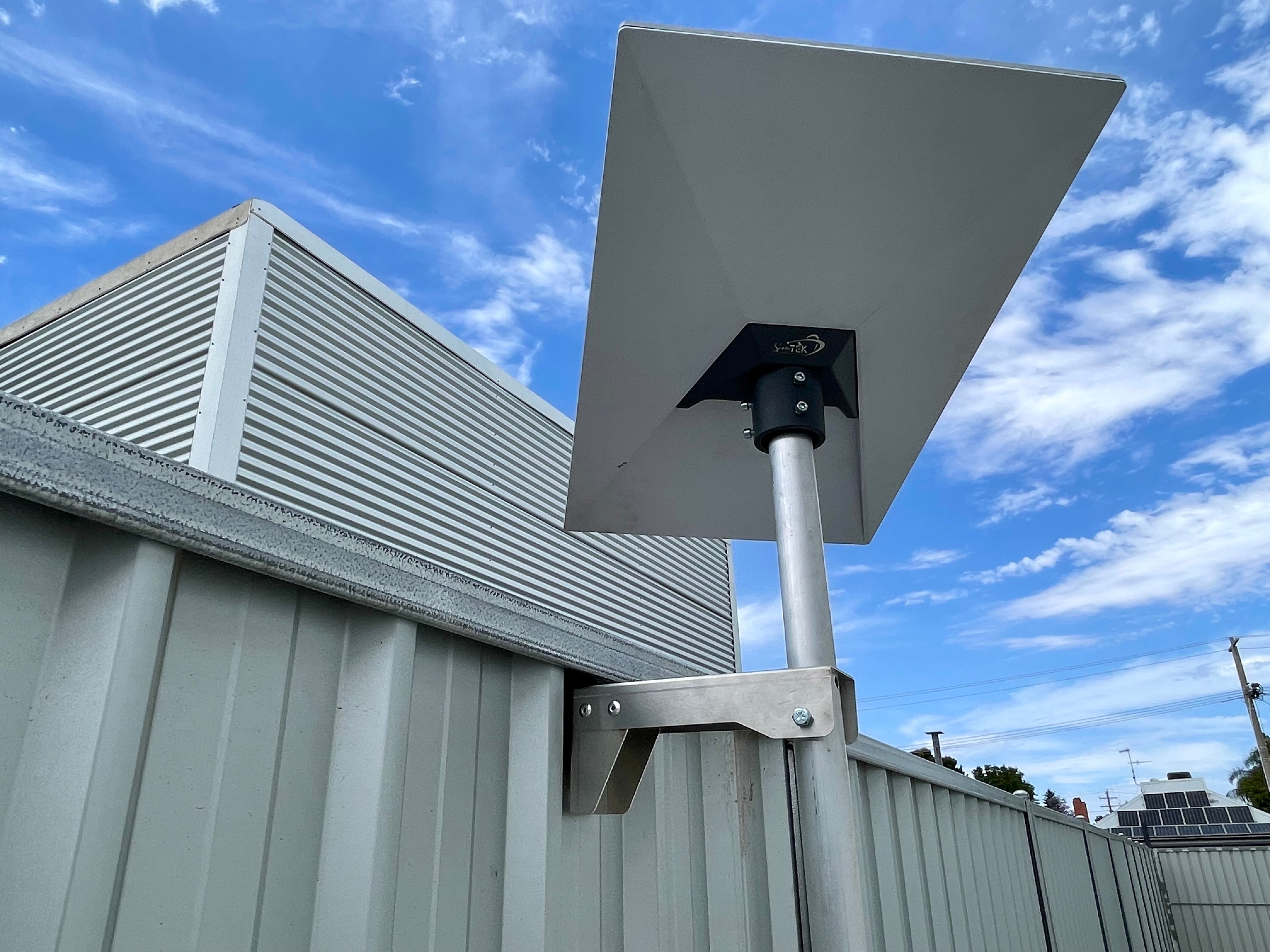

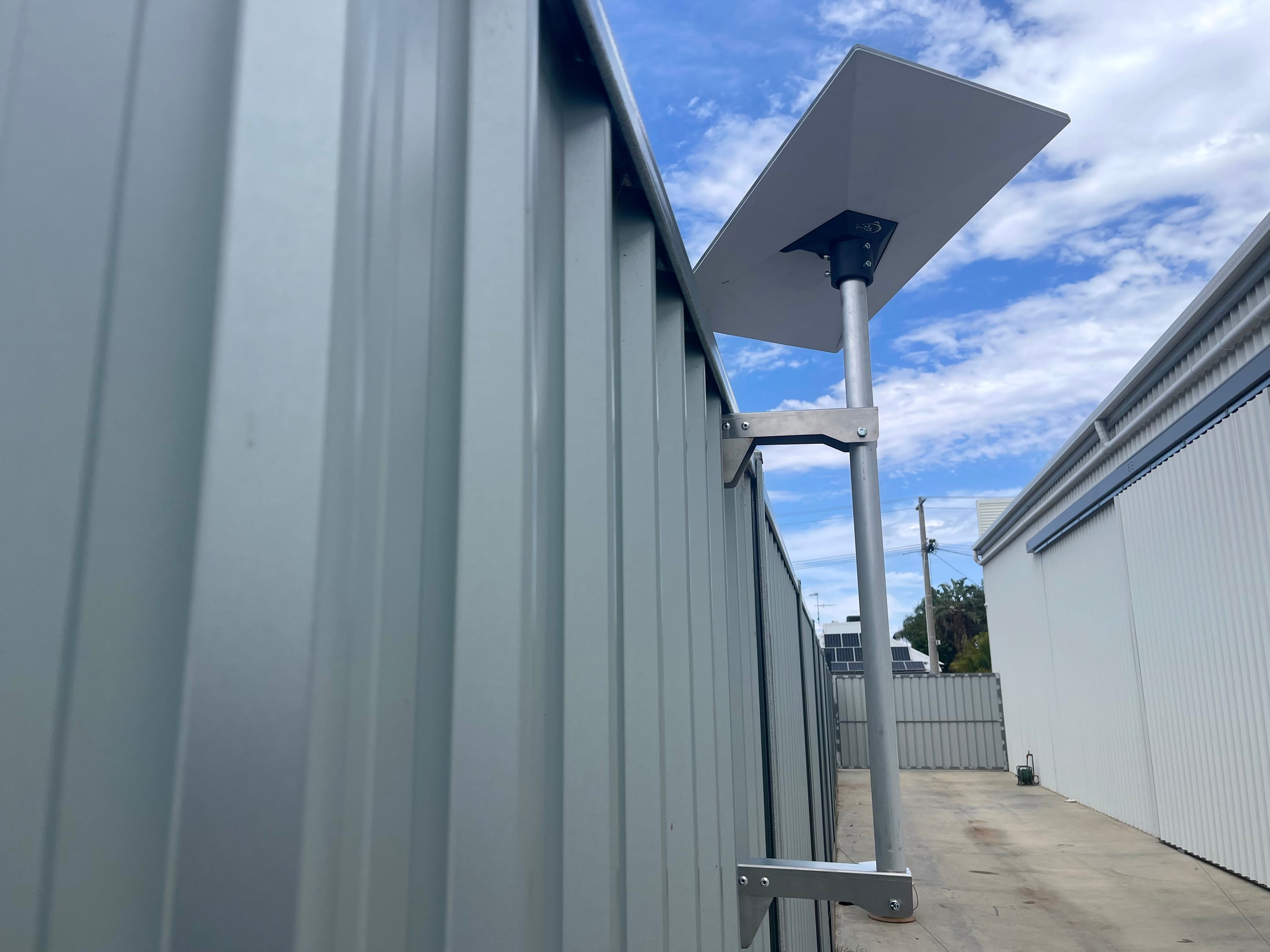

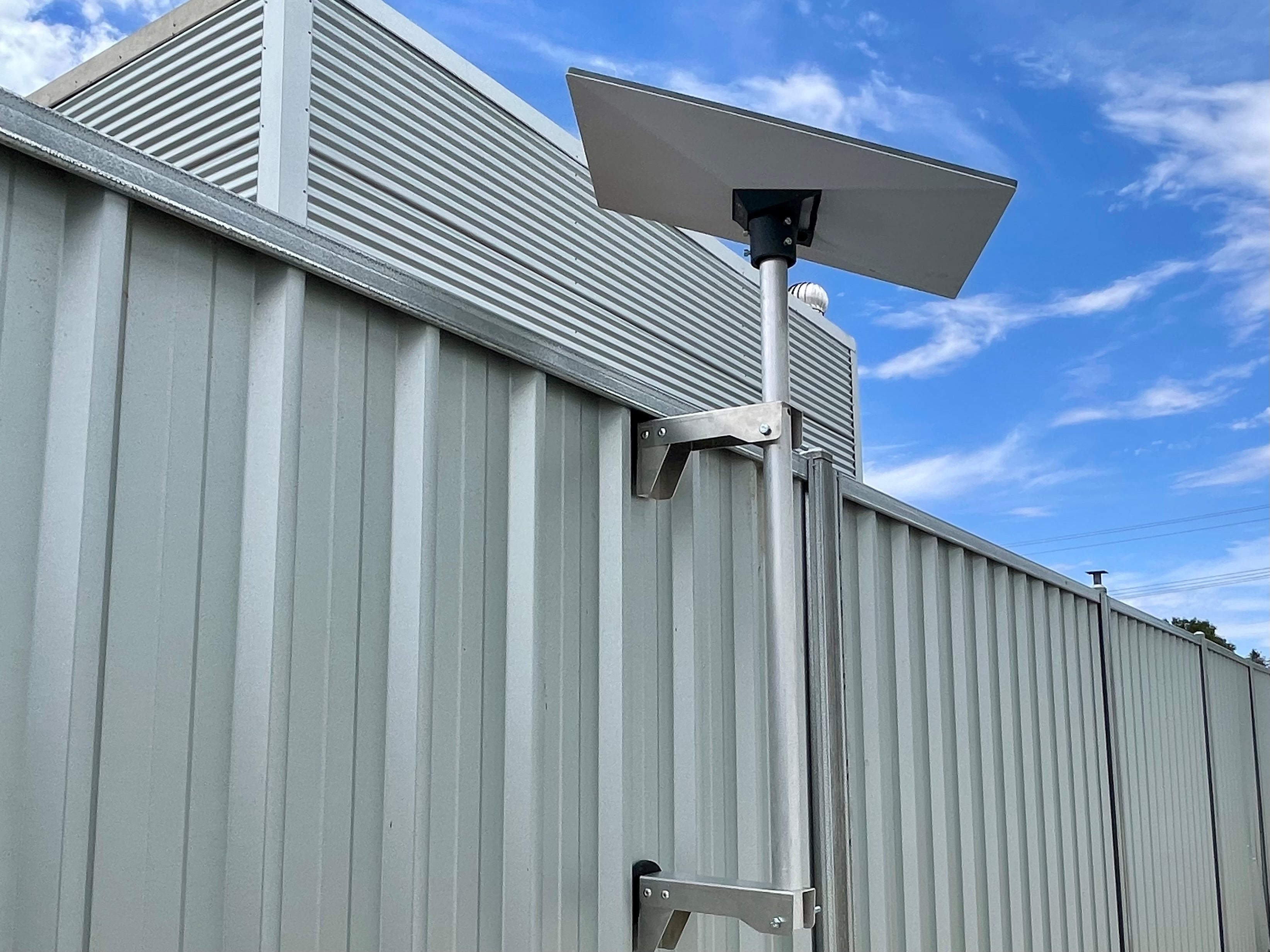

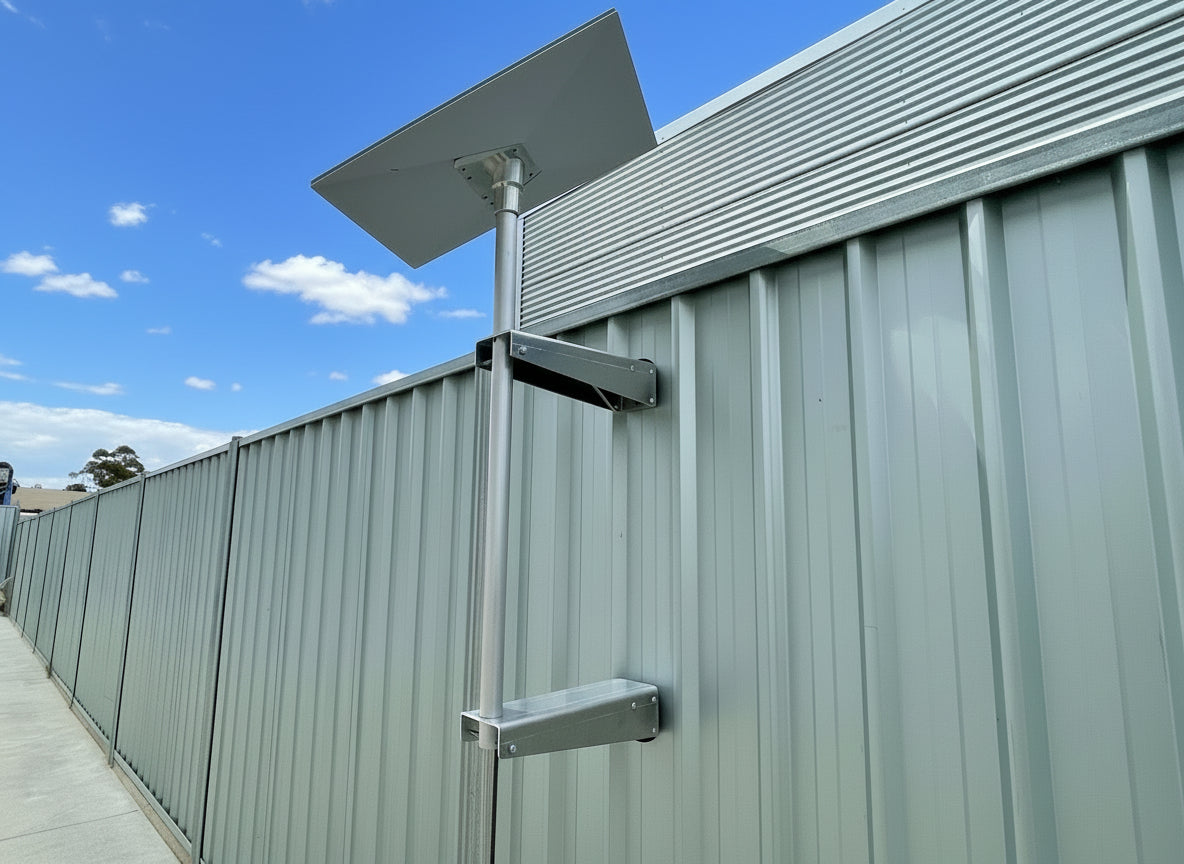

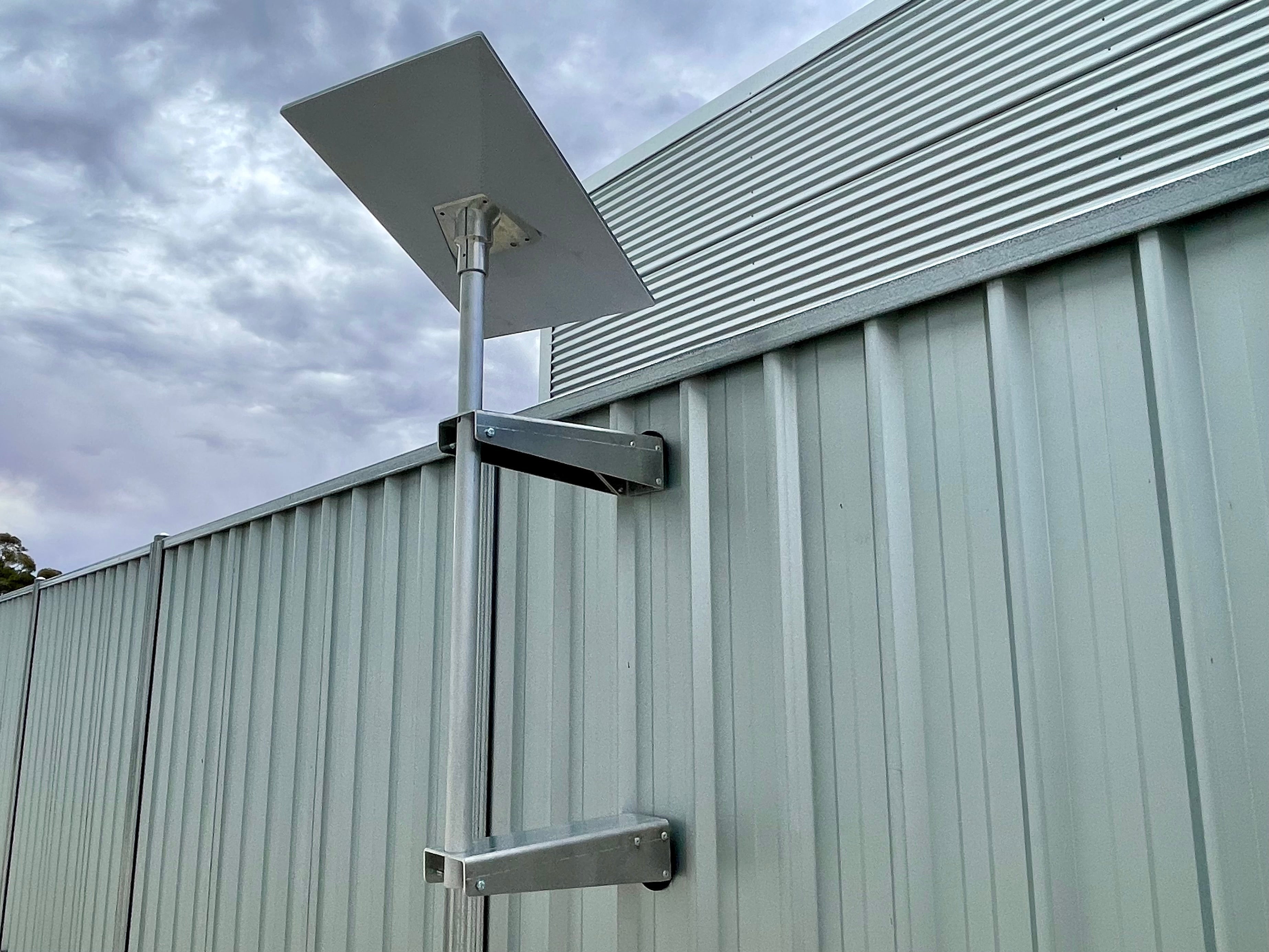

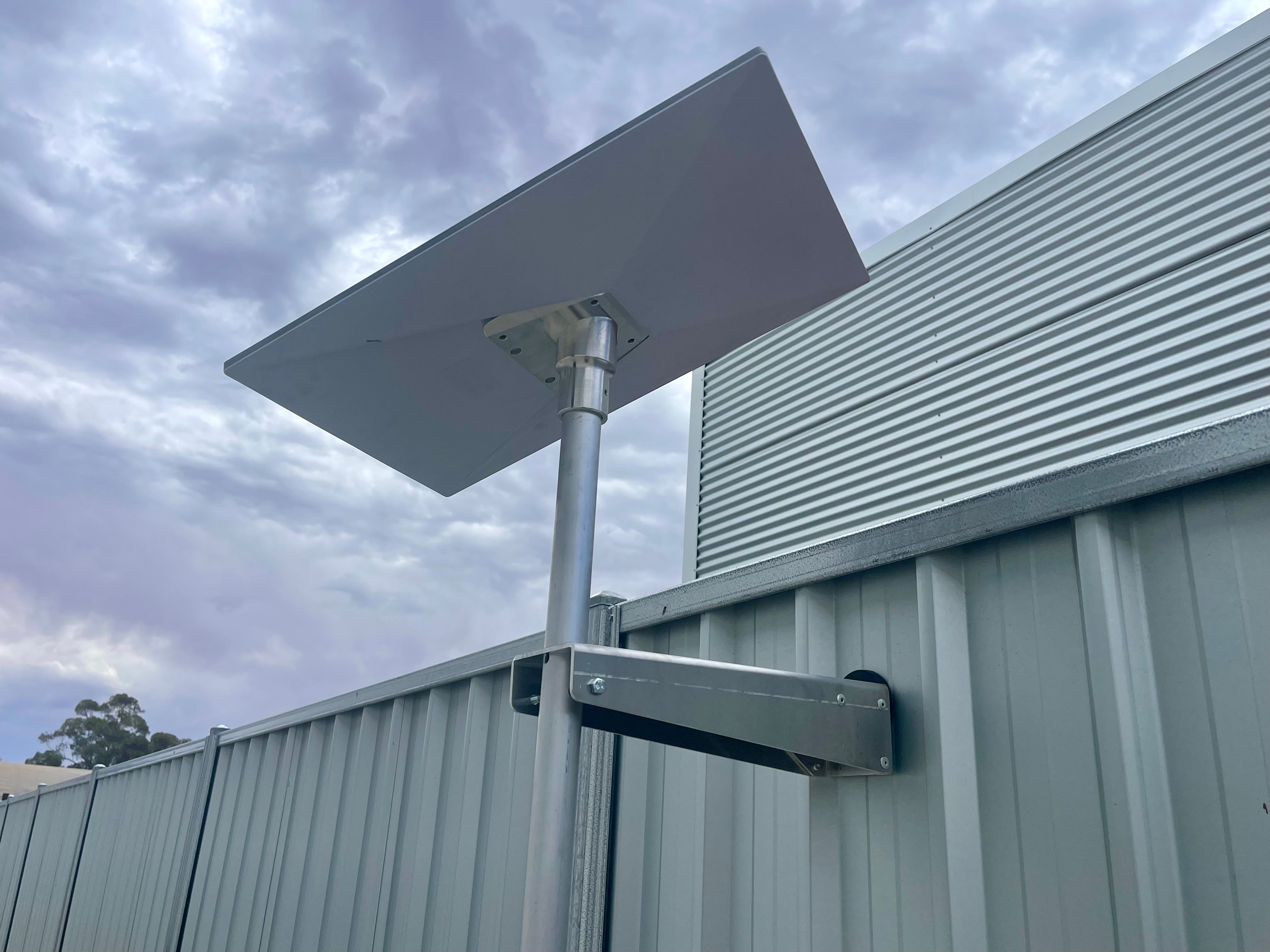

The SpaceTek Wall Mount for Starlink Gen 3 (V4) is purpose-built for installation onto composite wall systems such as cool room panels, Atco-style demountables, site huts, and mining accommodation buildings.
It provides a strong, stable mounting solution without needing to penetrate roof structures or locate internal timber or steel framing, which is often missing in insulated panel construction.

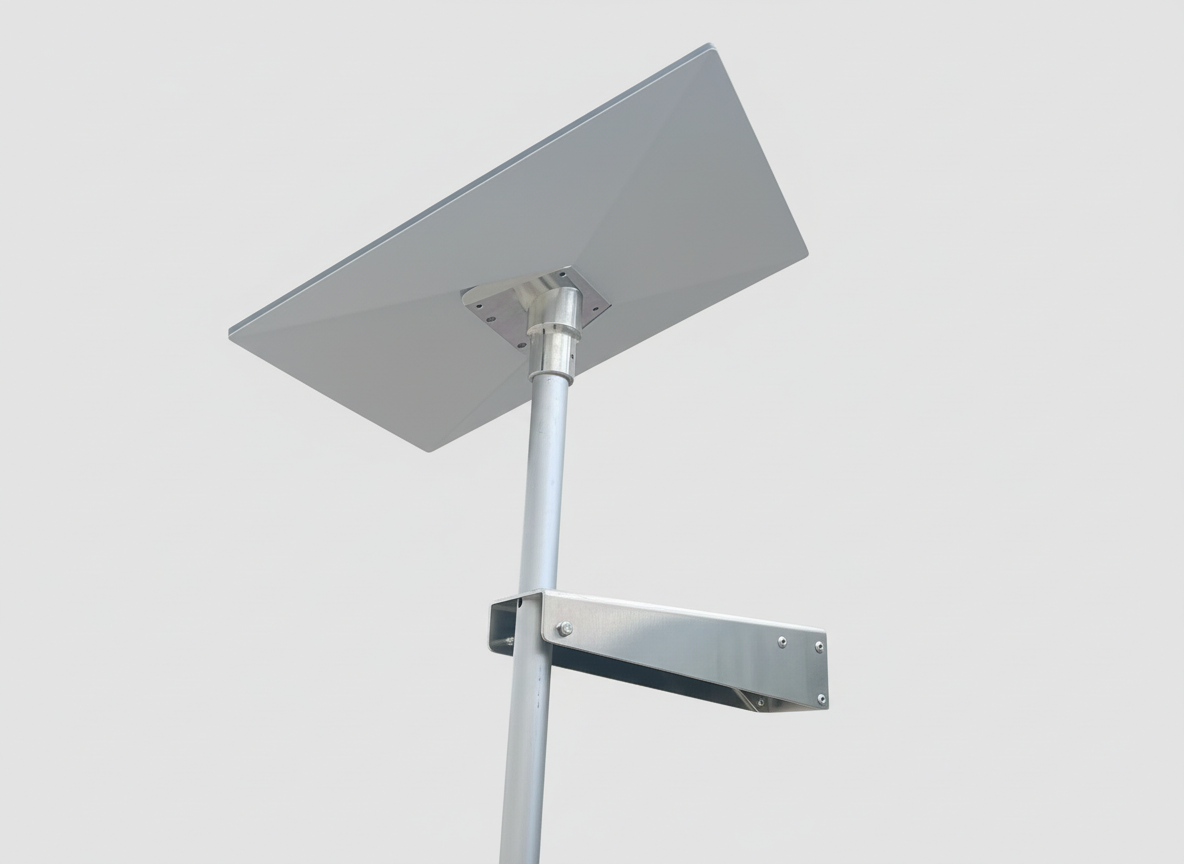

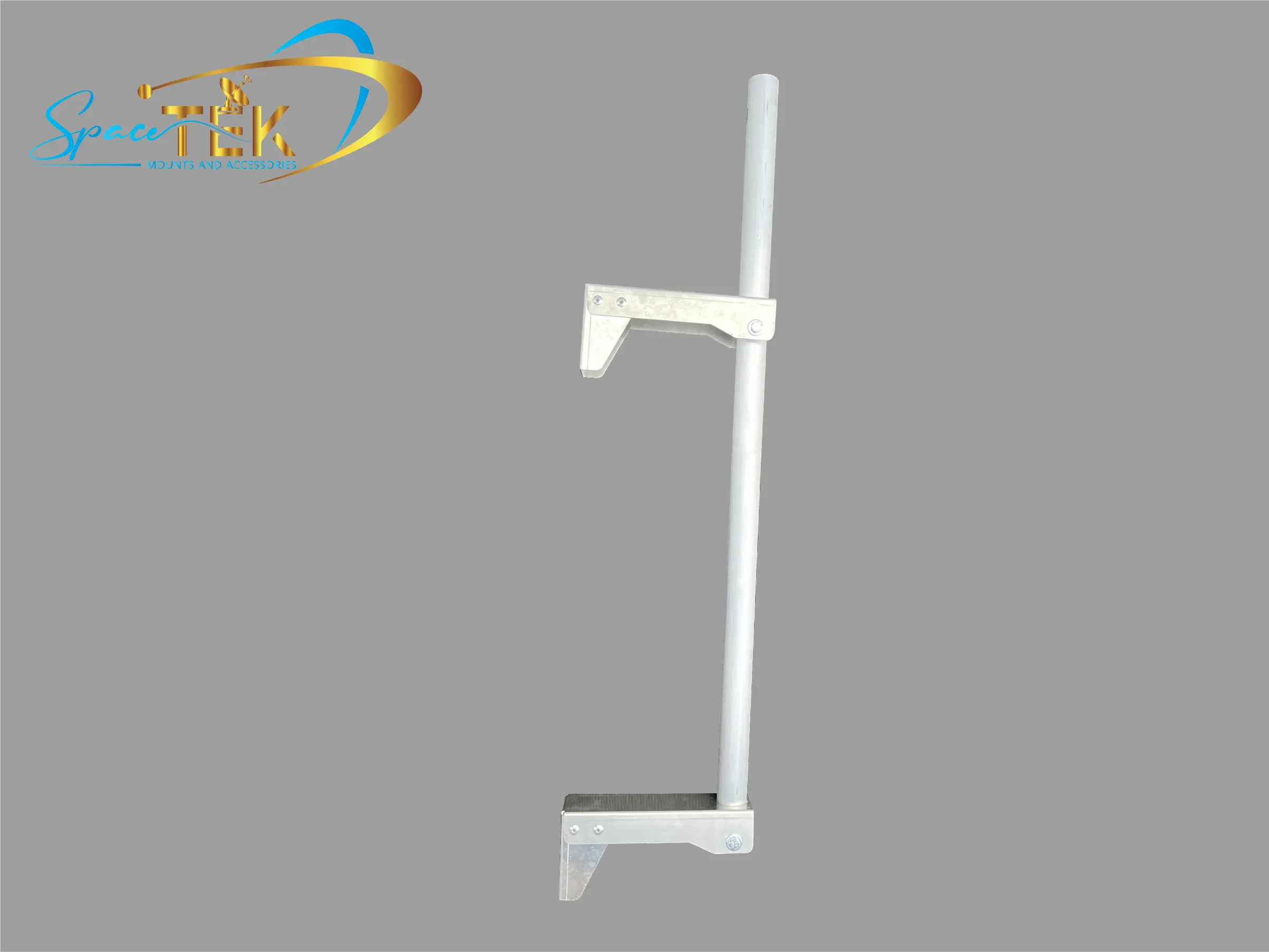

This wall mount uses a compression-style fixing system that clamps securely onto panels up to 100mm thick, distributing wind and structural forces evenly across the panel surface. With a full 1 metre mounting pole and adapter, it provides approximately 300mm of elevation from the mounting arm to the terminal, ensuring improved clearance and reliable sky visibility for your Gen 3 terminal.

Key Features

✔️ Compression Fixing System

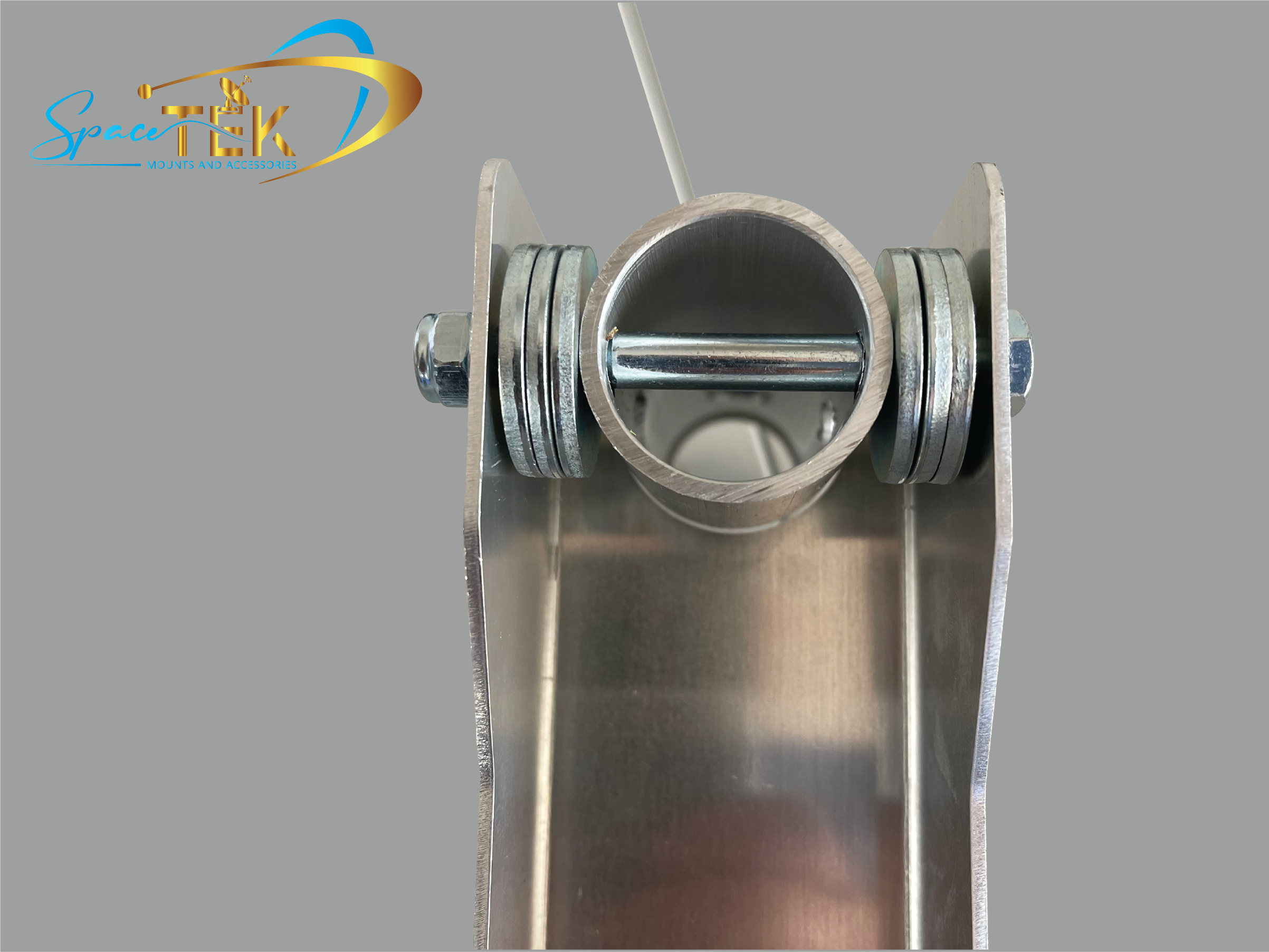

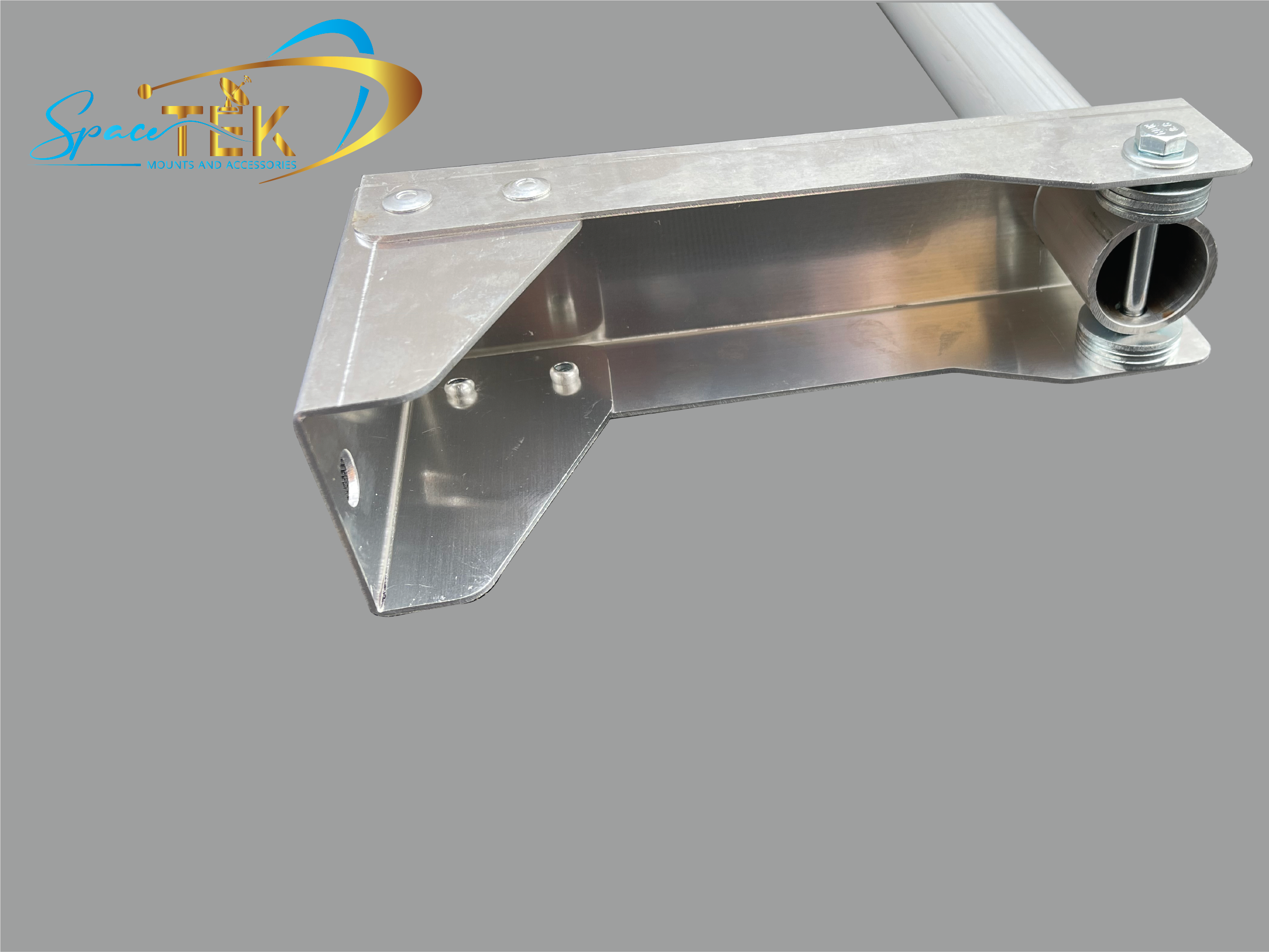

Clamps directly onto insulated wall panels using long-thread bolts and large square washers, removing the need for internal framing.

✔️ Load Distribution for Safety

Multiple pickup points spread wind forces across a wider area of the panel, improving long-term stability.

✔️ No Roof Penetration Required

Installs entirely through the wall panel, reducing risk of leaks or damage to roofing.

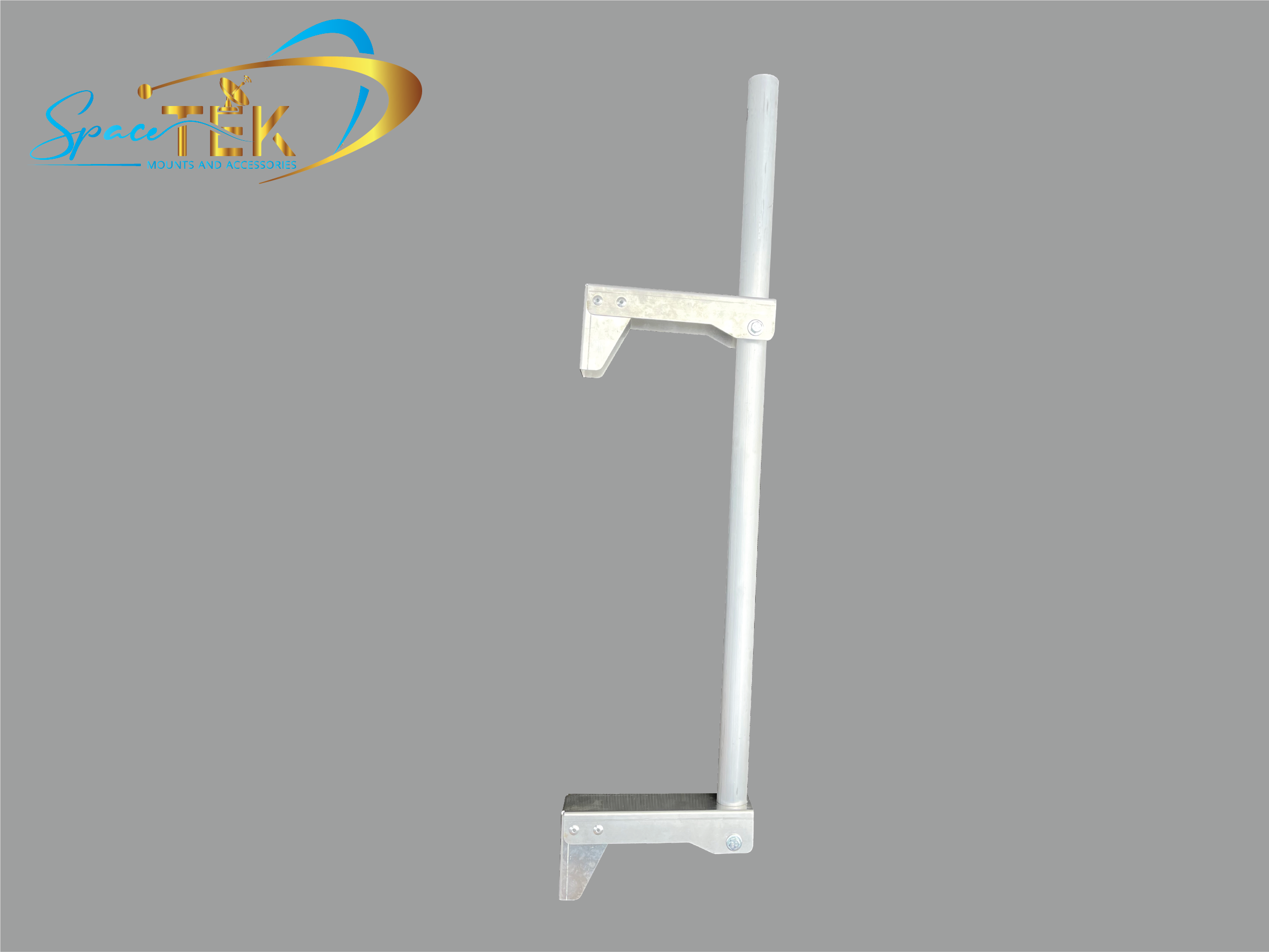

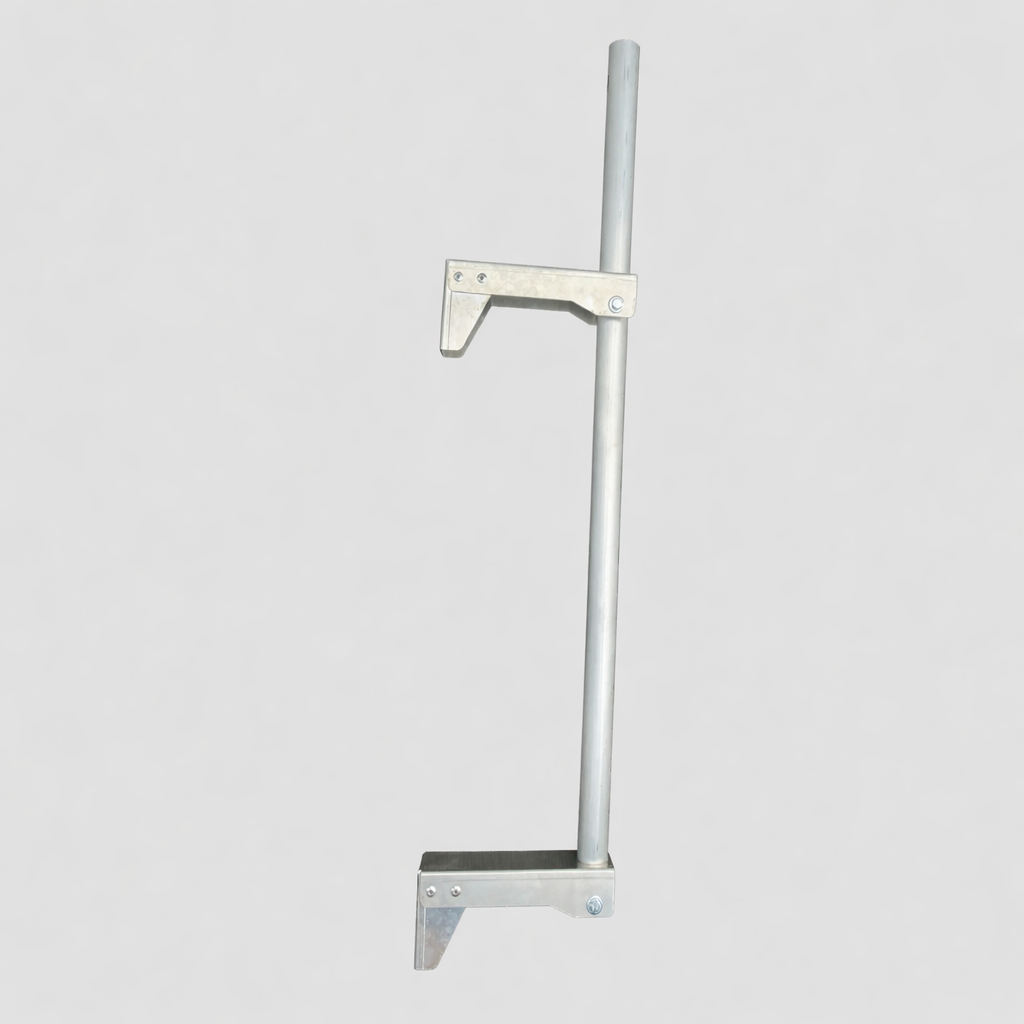

✔️ 1m Vertical Mounting Rail

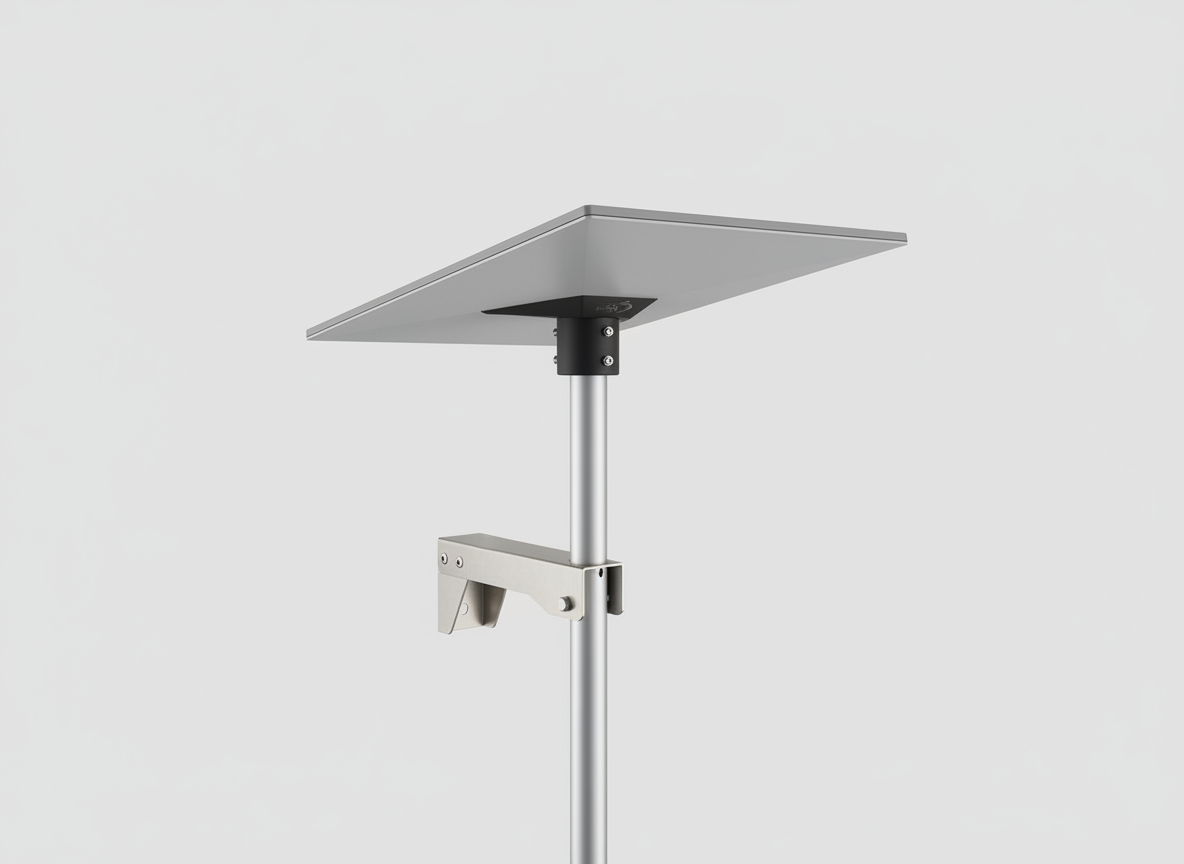

Provides roughly 300mm rise from the arm to the Starlink terminal including its leg, giving better clearance above obstacles.

✔️ Ideal for Portable Buildings

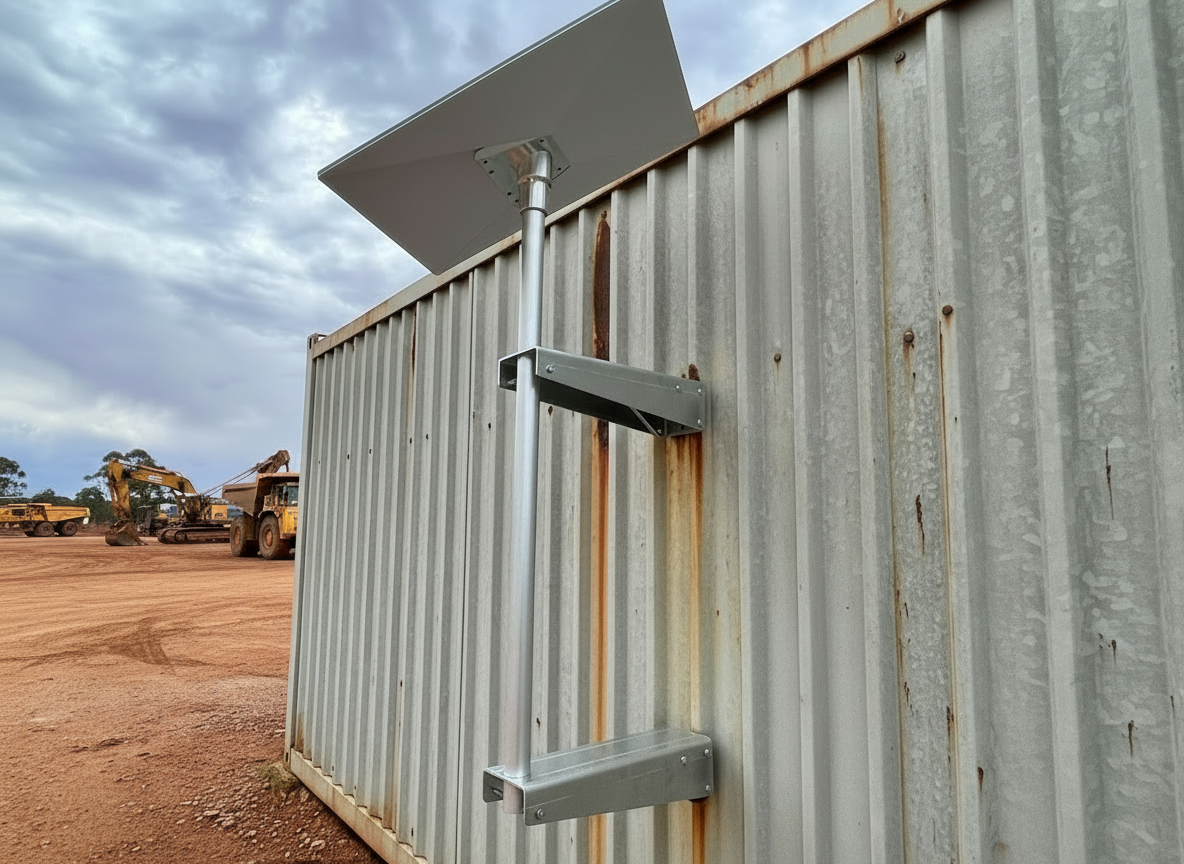

Perfect for Atco huts, demountables, site offices, mine-site accommodation, and cool room panel structures.

Specifications

• Compatibility: Starlink Gen 3 (V4)

• Fixing Method: Compression mount

• Panel Suitability: Cool room, insulated panel, Atco/demountable, site huts

• Max Panel Thickness: Up to 100mm

• Included Hardware: 120mm threaded bolts + large square washers

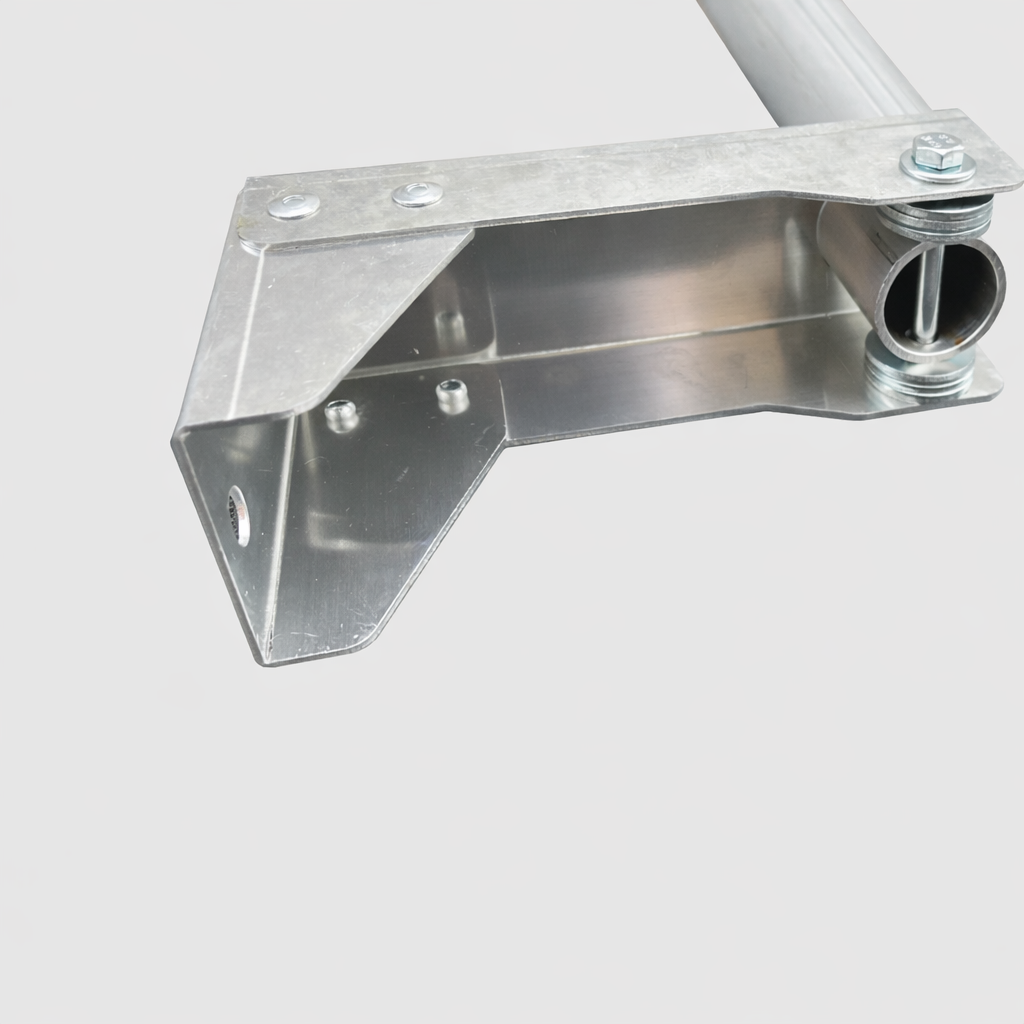

• Material: Heavy-duty aluminium construction

Installation Overview

1. Position the mount vertically on the chosen section of the wall panel.

2. Mark and drill holes through the panel according to the mount’s pickup points.

3. Insert the 120mm bolts through the panel.

4. Fit the large square washers on the opposite side to distribute compression forces.

5. Tighten the bolts evenly to clamp the mount securely to the panel.

6. Attach the Starlink Gen 3 terminal to the top mounting arm.

7. Confirm elevation and alignment before final tightening.

Important Notes

⚠️ Do not overtighten bolts – excessive compression can dent or deform insulated panels.
⚠️ Not cyclone-rated unless additional bracing is added.
⚠️ Always ensure the panel is free of electrical wiring before drilling.

Ideal Use Cases

✅ Portable site huts and demountables
✅ Mining accommodation buildings
✅ Temporary or semi-permanent portable structures
✅ Cool room and insulated panel walls
✅ Installations where roof penetration isn’t permitted or ideal

Reliable Mounting for Portable and Composite Wall Structures

The SpaceTek Gen 3 Atco and Demountable Wall Mount is the ideal solution for safely and securely installing Starlink Gen 3 on insulated panels and pre-fabricated wall systems. For customers needing additional height clearance, we recommend pairing this with our 1m, 1.5m, or 2m Starlink Roof Mount Kits.
