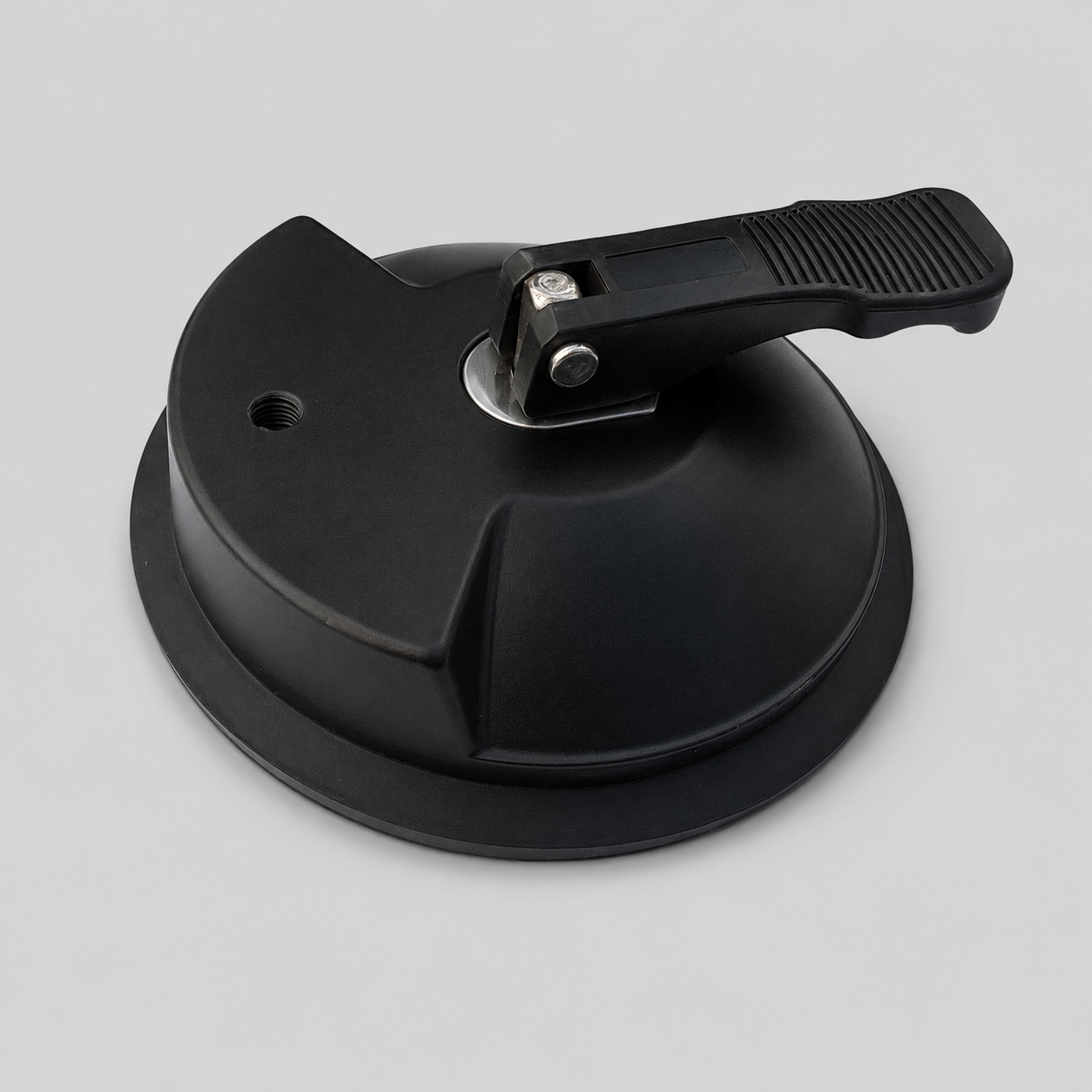

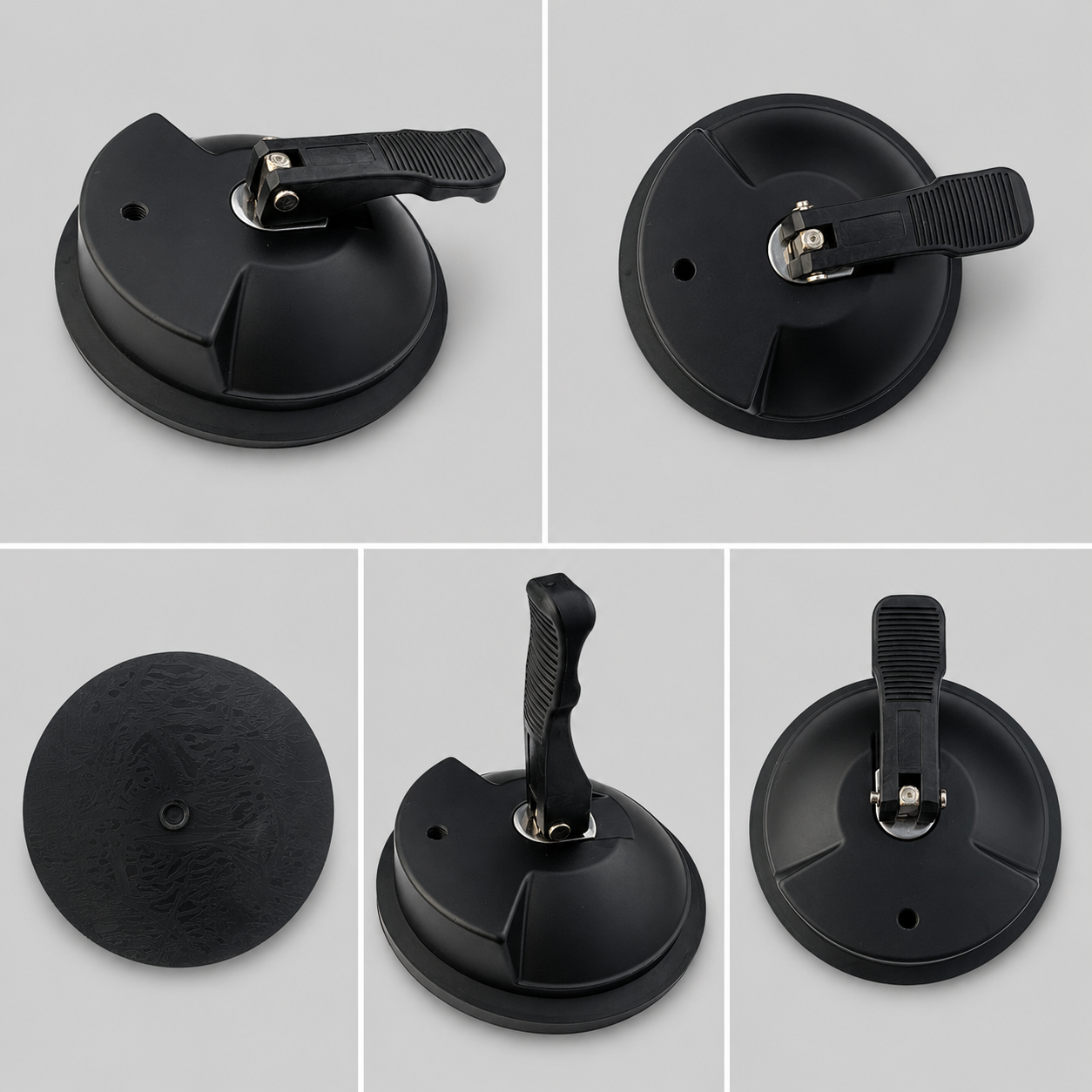

5-Inch Heavy Duty Lever-Lock Suction Cap with M8 Female Thread

Specifications

The Spacetek 5-inch heavy duty lever-lock suction cap gives you a reusable temporary mounting point on smooth, non-porous surfaces. It is useful when you need to attach a compatible M8 bracket, hook, light accessory, camera bracket, sign or test fixture without drilling holes or using adhesive.

The built-in M8 female thread accepts compatible M8 threaded hardware, making it a handy no-drill option for caravans, RVs, 4WDs, workshops, field testing and temporary display setups.

⚠️ This is a temporary suction-based mounting accessory. It must not be treated as a permanent, structural or load-critical fixing.

What's Included

1 × 5-inch lever-lock suction cap with M8 female thread

Common Use Cases

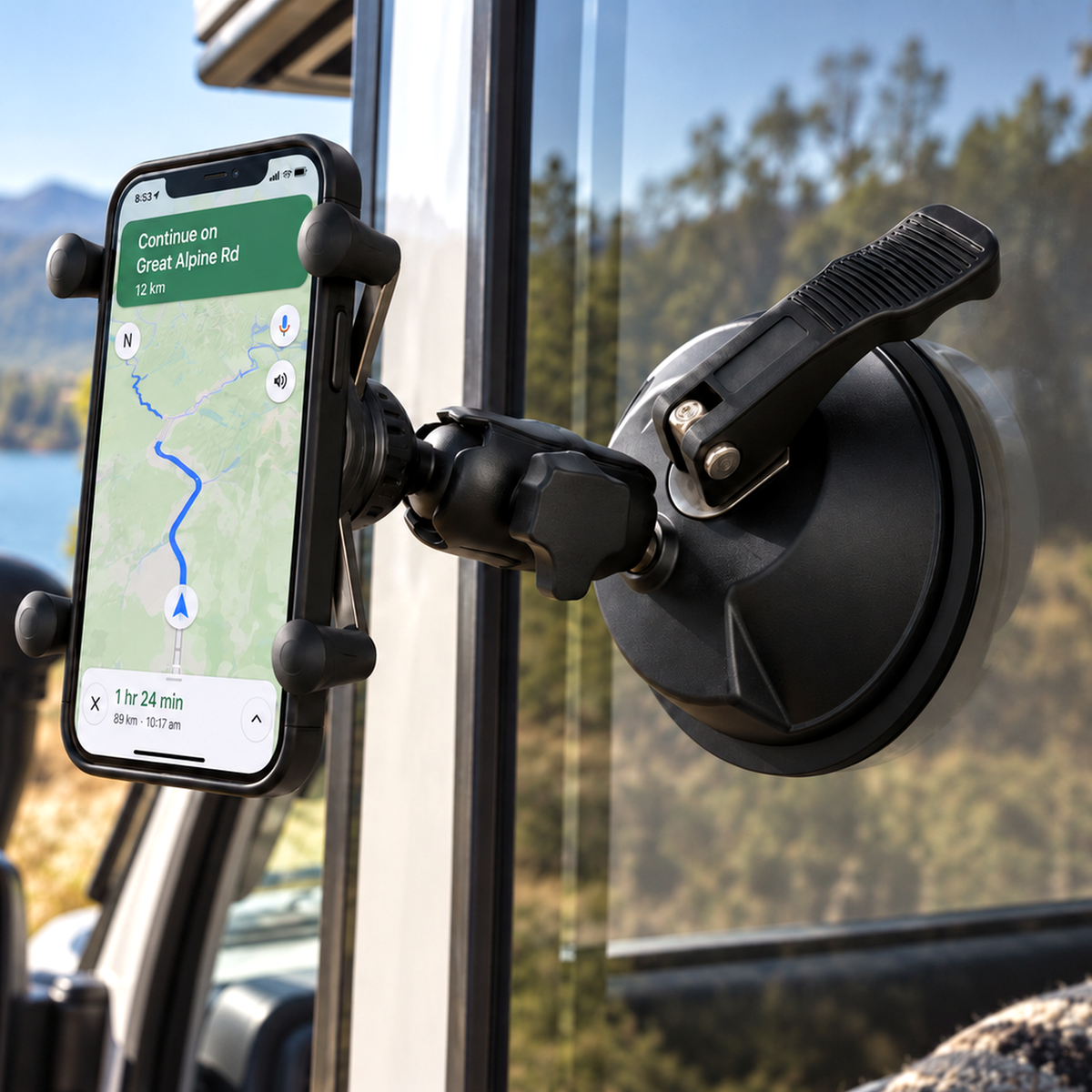

✅ Caravan, RV and 4WD setups
Use as a removable mounting point on smooth windows, fibreglass panels, painted metal or canopy surfaces while stationary.

✅ Test-fitting brackets before drilling
Check position, clearance and angle before committing to a permanent mount.

✅ Temporary Starlink accessory support
Useful for lightweight Starlink-related accessories, cable guides, small brackets or setup testing. Not recommended as the sole permanent mount for a Starlink dish.

✅ Cameras, lights and small accessories
Create a temporary M8 mounting point for compact cameras, work lights, action-camera brackets, inspection gear or other light equipment.

✅ Temporary signage and display panels
Attach lightweight signs, display boards or workshop notices to smooth glass, metal or acrylic surfaces without screws or adhesive tape.

✅ Workshop jigs and field testing
Use as a removable fixing point when prototyping, aligning or temporarily holding light equipment on smooth sheet material.

Works Best On

✅ Glass
✅ Smooth painted metal
✅ Smooth aluminium
✅ Smooth fibreglass
✅ Acrylic / Perspex
✅ Smooth glossy tiles
✅ Smooth plastic panels

Not Suitable For

⚠️ Textured, dusty, oily, porous or curved surfaces
⚠️ Canvas, timber, rubberised coatings or raw fibreglass
⚠️ Overhead lifting or load-critical applications
⚠️ Permanent mounting
⚠️ Use while driving or on loads exposed to wind, vibration or shock

Key Features

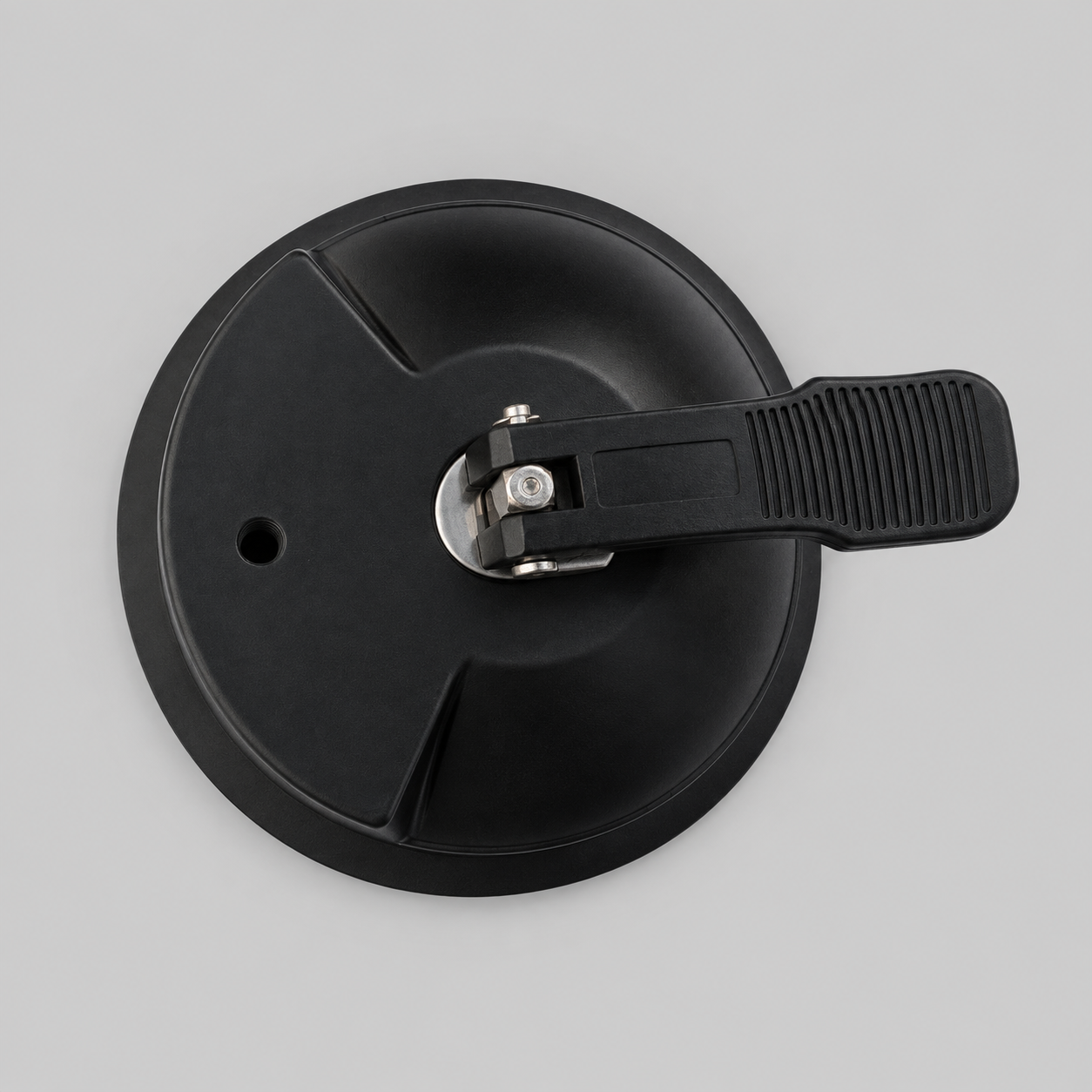

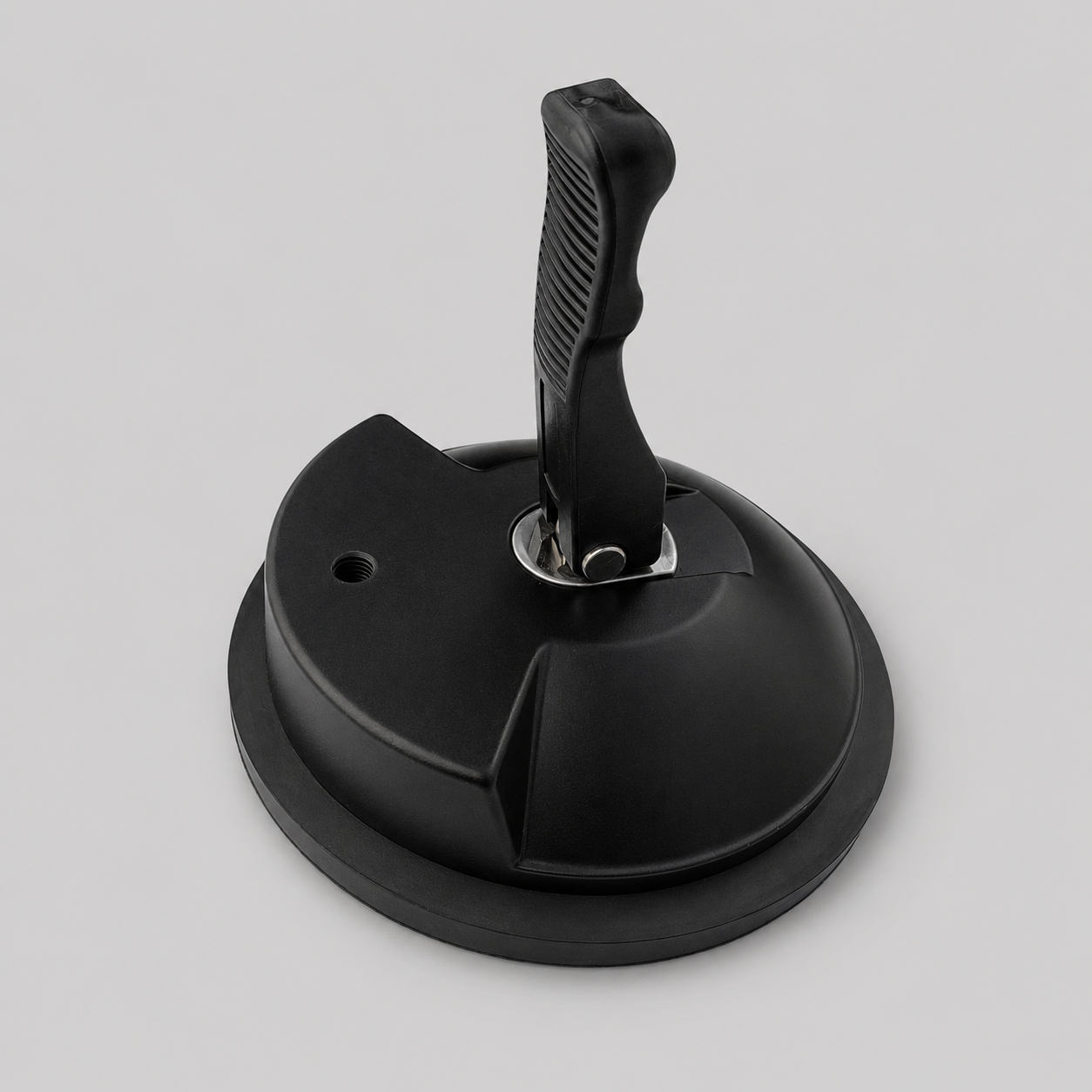

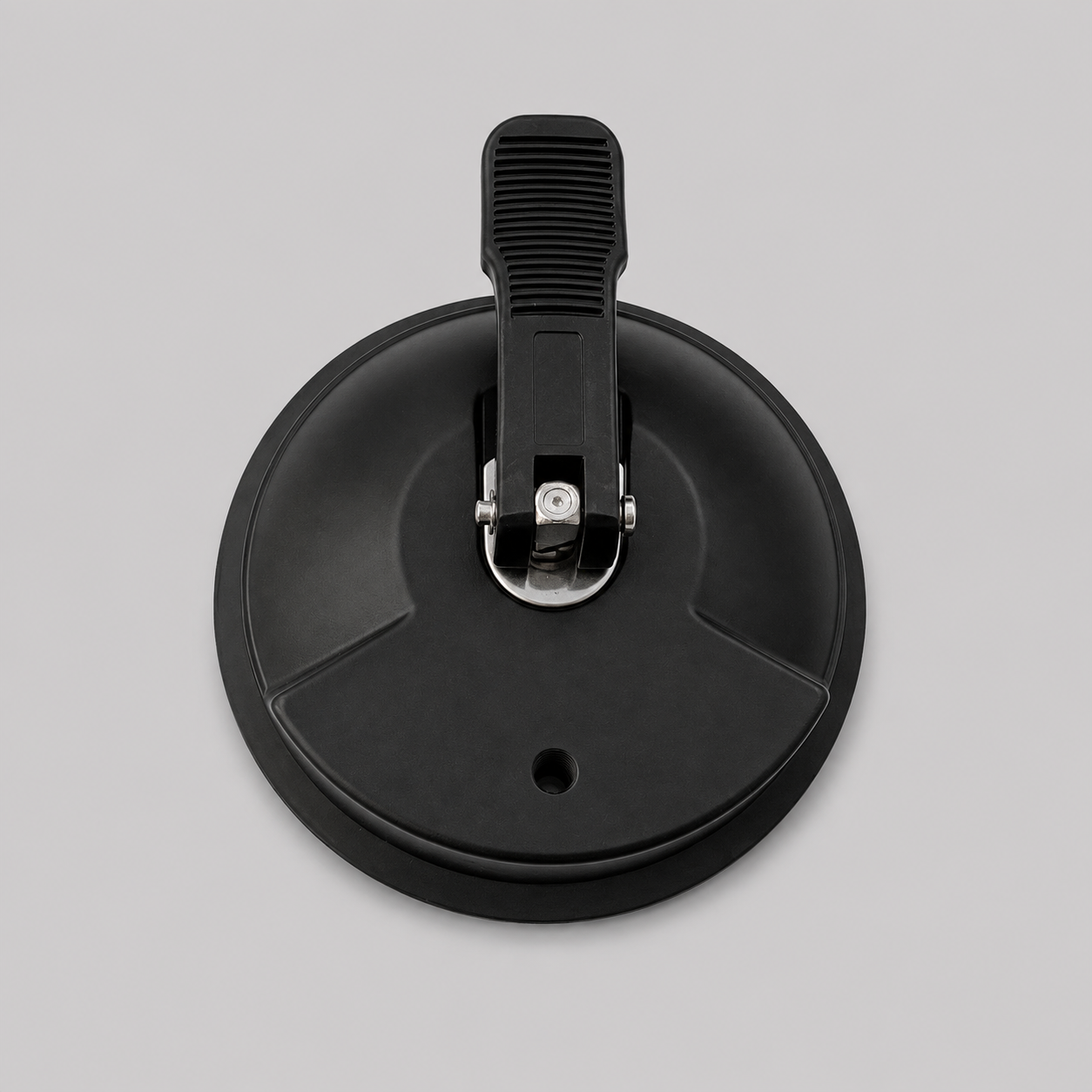

✅ Lever-lock suction mechanism
Creates a reusable vacuum-style grip on smooth, clean, non-porous surfaces.

✅ M8 female thread interface
Accepts compatible M8 threaded hardware for flexible temporary mounting configurations.

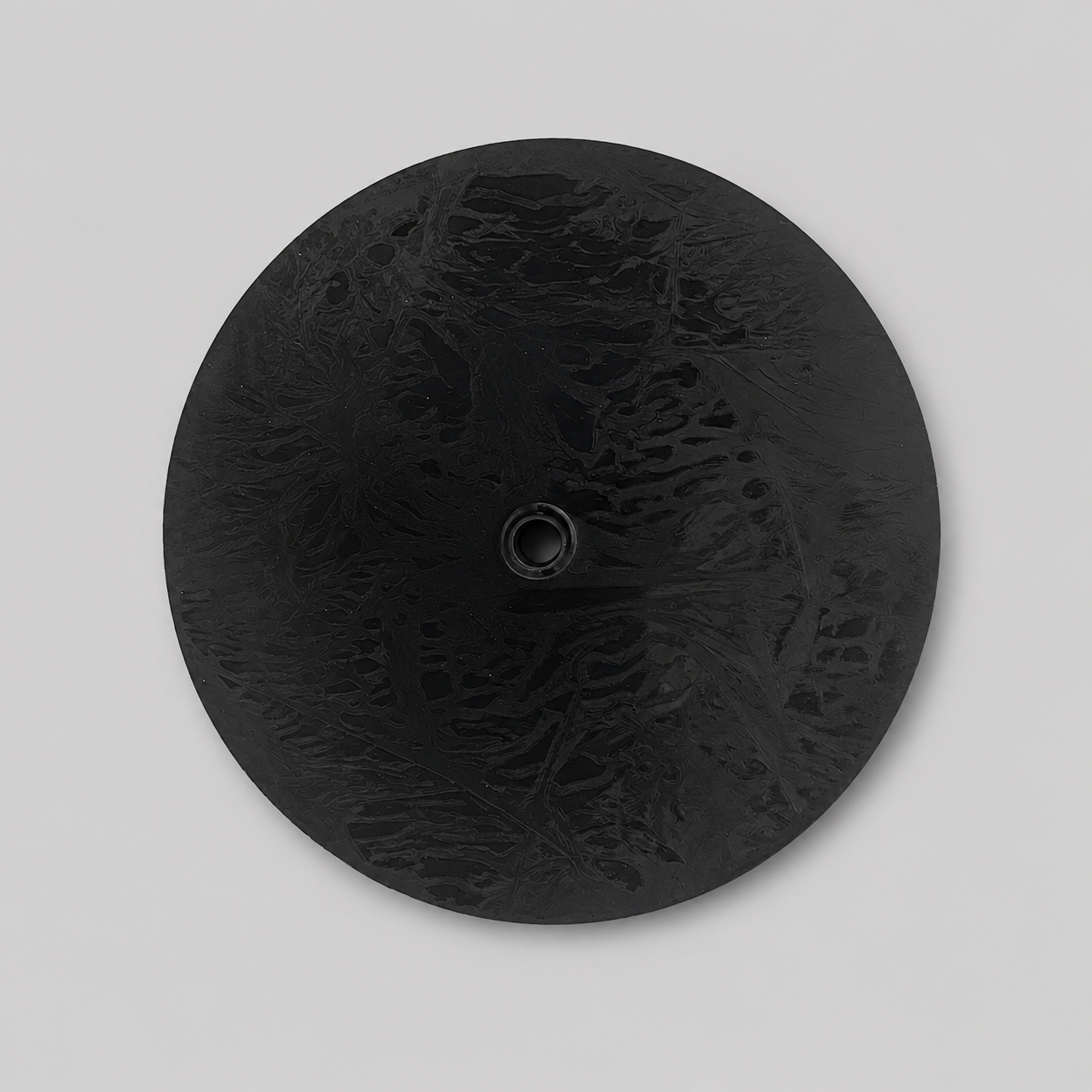

✅ 114 mm suction diameter
The 5-inch contact area provides a practical balance of surface grip and compact size.

✅ No-drill temporary fixing
Useful when you do not want to mark, drill or permanently modify a surface.

✅ Controlled release
Release the suction cap when you are ready to reposition or remove it.

Installation Overview

1. Clean the mounting surface thoroughly to remove dust, moisture and oils.
2. Place the suction cap firmly against a smooth, non-porous surface.
3. Engage the lever-lock mechanism to create the suction hold.
4. Attach compatible M8 hardware to the female thread.
5. Check the hold before attaching equipment and re-check regularly during use.
6. Release the suction cap when finished and store it clean.

Important Notes

⚠️ Holding performance depends on surface condition, surface cleanliness, load angle and environmental conditions.
⚠️ Always test the hold before use and re-check regularly.
⚠️ Do not use for overhead lifting, safety-critical mounting or permanent installations.
⚠️ Use in motion is at your own risk. Spacetek is not responsible for loss or damage caused by detachment.
