Wall Mount Kit - Starlink Performance Models - Heavy Duty Aluminium

Specifications

Wall mount kit for Starlink Performance terminals on panels, ATCO buildings and site huts

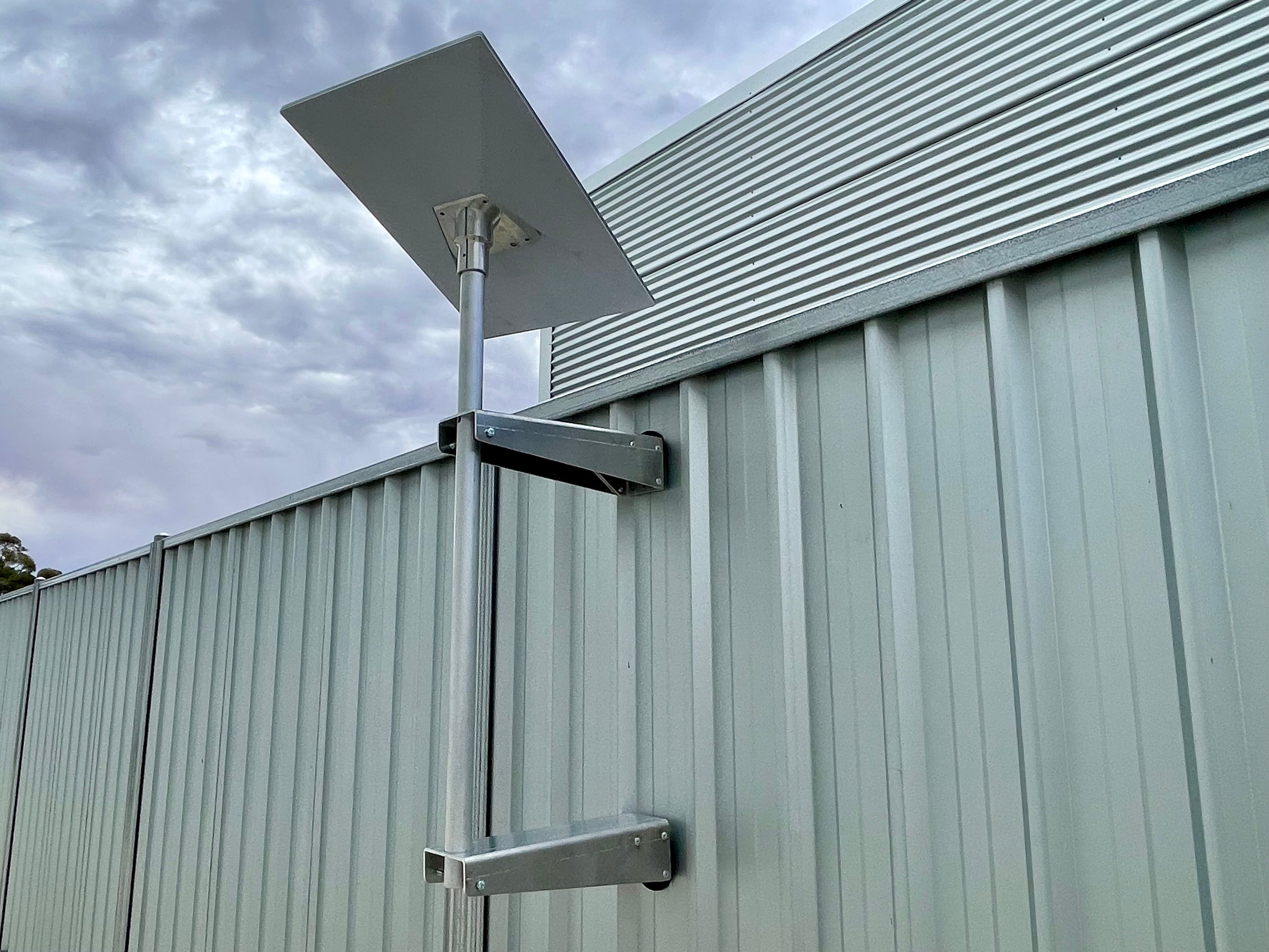

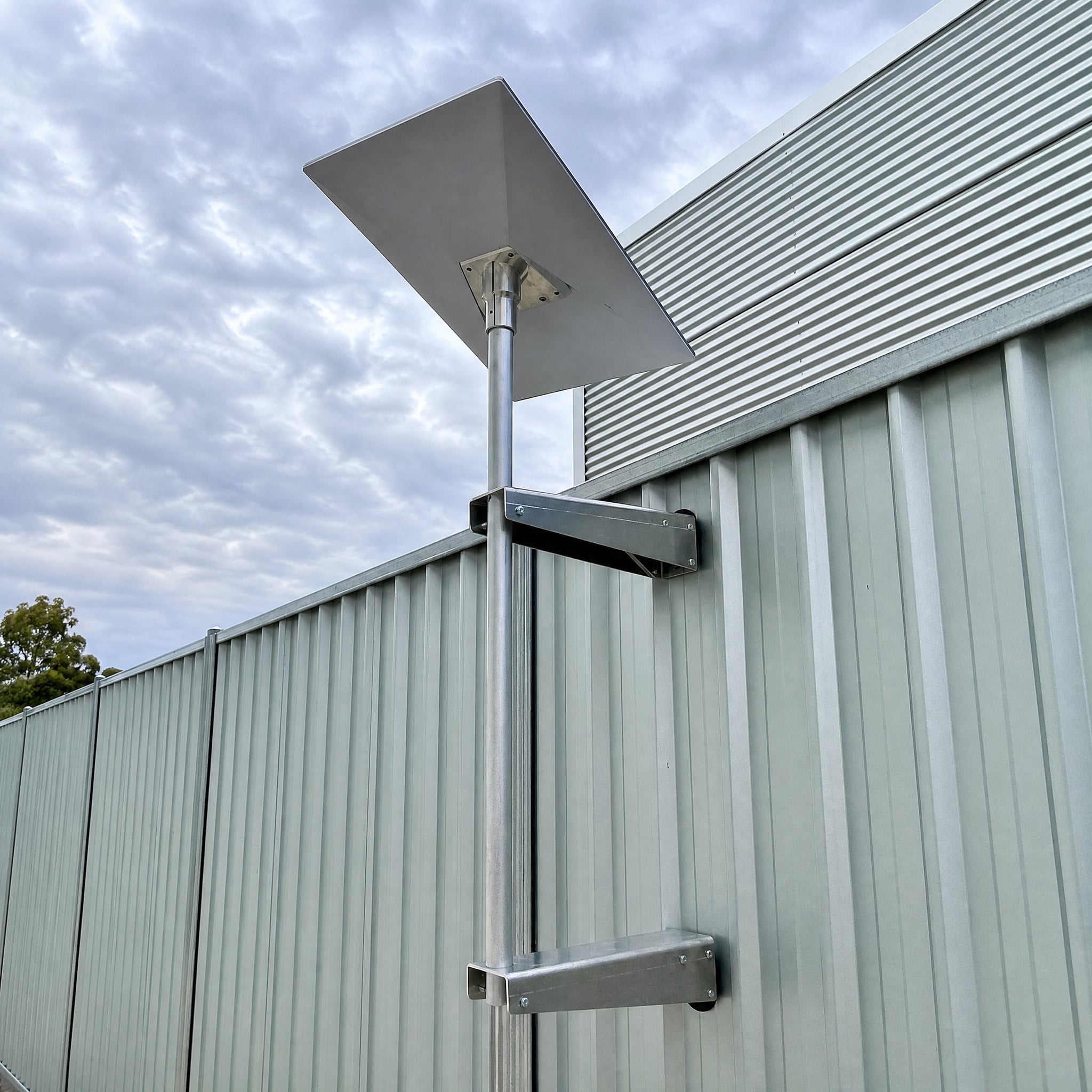

The SPACETEK Wall Mount Kit is a compression-style mounting kit for Starlink Performance terminals on suitable wall and panel structures, including cool room panels, ATCO-style demountables, site huts, site offices and similar metal-clad or insulated panel buildings.

Choose the correct Starlink pole adaptor before ordering:

• Gen 3 Performance (UTA-252): choose this option for Starlink Performance terminals marked UTA-252.
• Gen 2 Flat High Performance (UTA-222) Basic Kit: choose this option when your UTA-222 terminal already has the Starlink wedge mount.
• Gen 2 Flat High Performance (UTA-222) Advanced Kit: choose this option when your UTA-222 terminal does not have the Starlink wedge mount. The adaptor fastens directly to the back of the dish.

Not for: Starlink Standard (Gen 3 / V4), Starlink Mini, or Gen 2 actuated residential terminals. The product photos may show a residential Starlink dish for demonstration only; order by the UTA model number and adaptor option above.

Where this mount is designed to help

This kit is intended for installations where a roof penetration is not preferred and internal framing may be difficult to locate, such as insulated panel construction or temporary site buildings. The mount clamps through the wall panel using long threaded bolts and large square washers, helping spread clamping load across the panel surface.

The kit uses a 1 metre aluminium pole mast and the selected Starlink Performance adaptor. On the current mounting layout, the pole provides approximately 300mm of rise from the mounting arm to the terminal to help improve clearance.

Kit inclusions

• 1 x aluminium pole adaptor for the selected Starlink Performance model
• 2 x aluminium wall mount brackets, 5mm folded aluminium
• 4 x aluminium wall mount spacers
• 1 x aluminium pole mast, 1 metre length
• Generic fastener pack, including 120mm threaded bolts and large square washers

Fastener note: check suitability for your specific installation. Fasteners for masonry or concrete walls are not included.

Key features

✅ Compression fixing system

Clamps through suitable wall panels using long threaded bolts and large square washers, reducing reliance on internal timber or steel framing.

✅ Suitable for selected panel buildings

Designed for compatible cool room panels, insulated panels, ATCO-style demountables, site huts, site offices, mine-site accommodation buildings, fences and similar metal-clad structures.

✅ Up to 100mm panel thickness

The current product data lists panel suitability up to 100mm thick.

✅ 1m aluminium pole mast

Includes a 1 metre aluminium pole mast for the selected Starlink Performance adaptor.

Installation overview

1. Position the mount vertically on the chosen section of the wall panel.
2. Mark and drill holes through the panel according to the mount pickup points.
3. Insert the 120mm bolts through the panel.
4. Fit the large square washers on the opposite side to help distribute compression load.
5. Tighten the bolts evenly to clamp the mount to the panel.
6. Attach the selected Starlink Performance terminal using the matching adaptor.
7. Confirm elevation and alignment before final tightening.

Important installation notes

⚠️ Do not overtighten bolts — excessive compression can dent or deform insulated panels.

⚠️ Check before drilling — always ensure the panel is free of electrical wiring and other hidden services before drilling.
